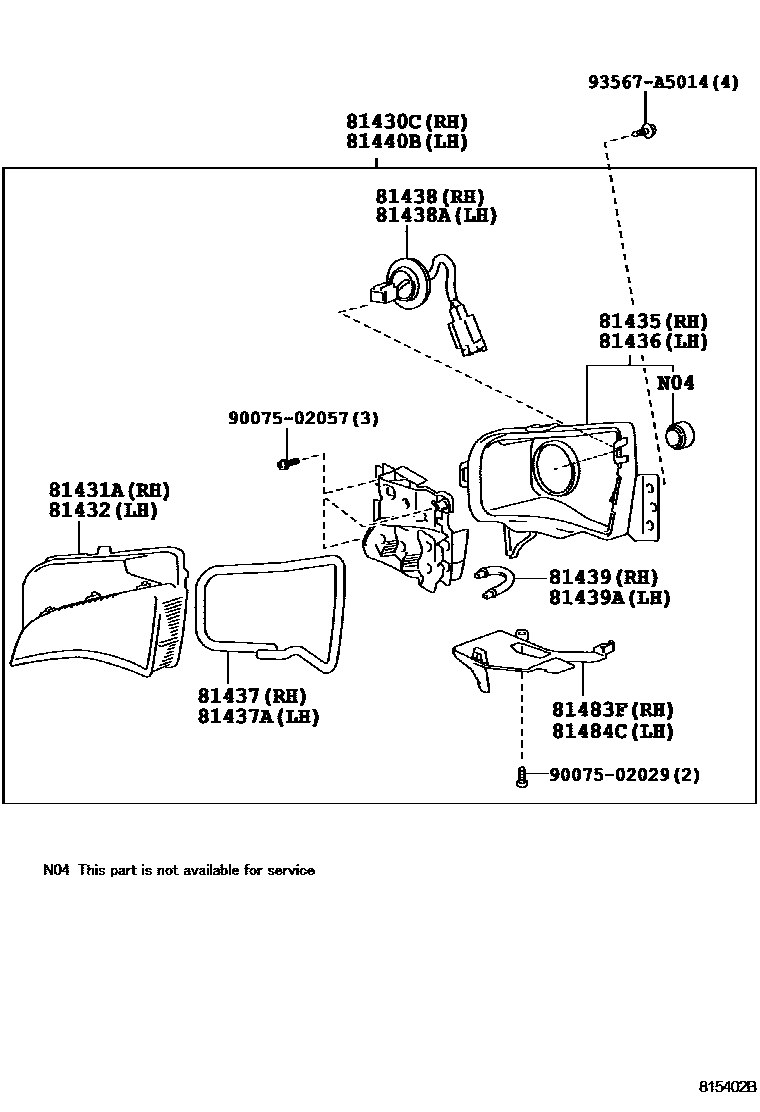

DAYTIME RUNNING LAMP OR ILLUMINATION LAMP

81430CLAMP ASSY, DAYTIME RUNNING, RH

main81430-12010iZWE150201006-201204

main81430-12011iZWE150201204

81431AOUTER LENS, DAYTIME RUNNING LAMP, RH

main81431-12010iZWE150201006

81432OUTER LENS, DAYTIME RUNNING LAMP, LH

main81432-12010iZWE150201006

81435HOUSING, DAYTIME RUNNING LAMP, RH

main81435-12010iZWE150201006

81436HOUSING, DAYTIME RUNNING LAMP, LH

main81436-12010iZWE150201006

81437GASKET, DAYTIME RUNNING LAMP, RH

main81437-12010iZWE150201006

81437AGASKET, DAYTIME RUNNING LAMP, LH

main81437-12010iZWE150201006

81438CORD, DAYTIME RUNNING LAMP, RH NO.1

main81438-12010iZWE150201006

81438ACORD, DAYTIME RUNNING LAMP, LH NO.1

main81438-12010iZWE150201006

81439CORD, DAYTIME RUNNING LAMP, RH NO.2

main81439-12010iZWE150201006

81439ACORD, DAYTIME RUNNING LAMP, LH NO.2

main81439-12010iZWE150201006

81440BLAMP ASSY, DAYTIME RUNNING, LH

main81440-12010iZWE150201006-201204

main81440-12011iZWE150201204

81483FPROTECTOR, DAYTIME RUNNING LAMP, RH

main81483-12040iZWE150201006

81484CPROTECTOR, DAYTIME RUNNING LAMP, LH

main81484-12020iZWE150201006

9007502029

main90075-02029

9007502057

main90075-02057

93567A5014

main93567-A5014

17 parts on this diagram · 1 diagram in section
