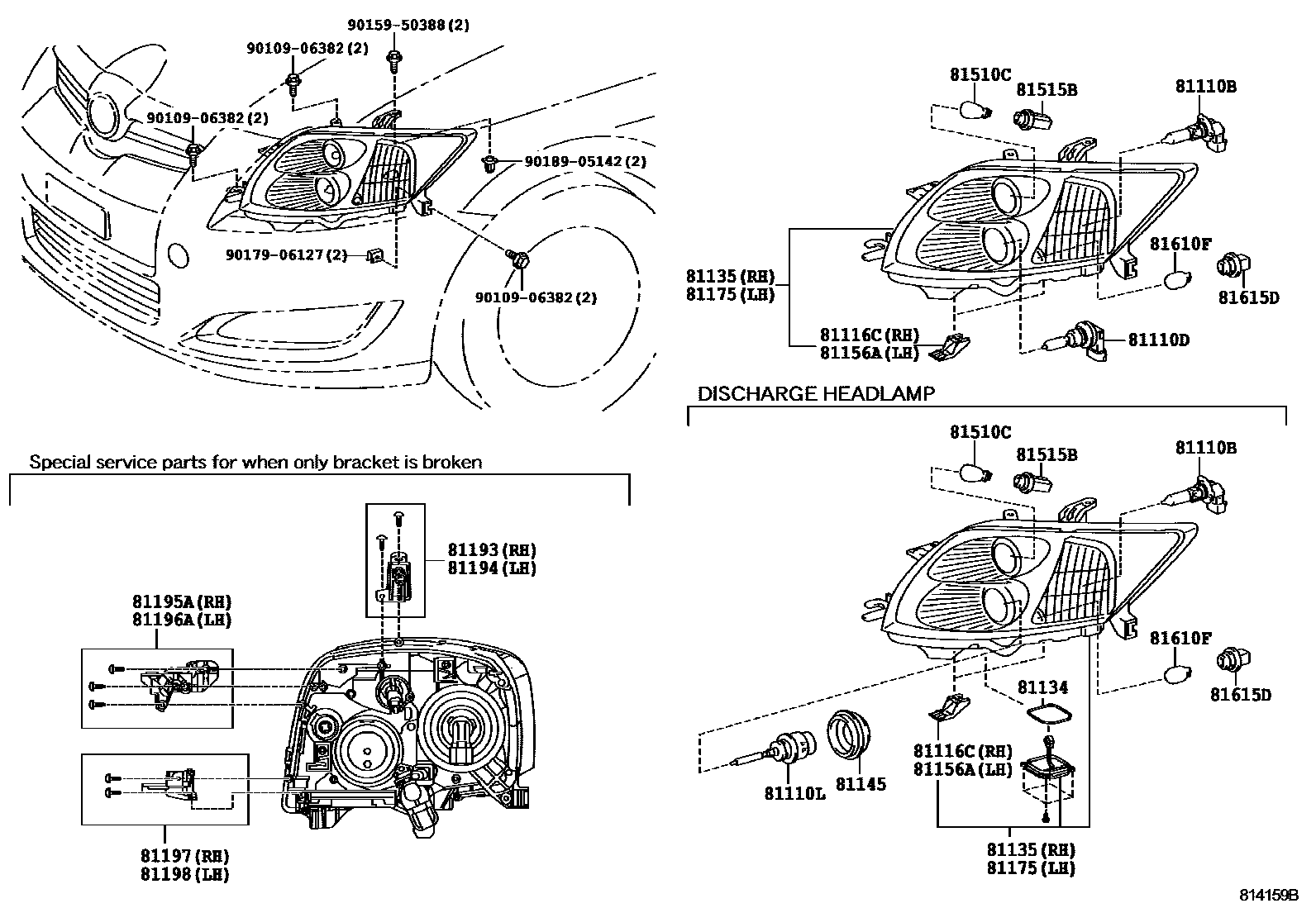

HEADLAMP
81110BBULB(FOR HEADLAMP, NO.1)
12V 65W; 12V 65W,HEAD LAMP AIMING-RH AIMING(FOR LHD CAR)
12V65W(SAE),60W(ECE); 12V65W(SAE),60W(ECE),SOUTH AFRICA SPEC&HEAD LAMP AIMING-RH AIMING(FOR LHD CAR)
81110DBULB(FOR HEADLAMP, NO.2)
main90981-13081×2iADE150,ZRE151..RHD..5D..(DCR,HTWC); NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC200702-200903
12V 55W,HALOGEN; 12V 55W,HALOGEN,SOUTH AFRICA SPEC&HEADLAMP-DISCHARGE&HEAD LAMP AIMING-RH AIMING(FOR LHD CAR)
81110LBULB, DISCHARGE HEADLAMP
45V 35W,HEADLAMP-DISCHARGE; 45V 35W,HEADLAMP-DISCHARGE(FOR PREMIUM ACTIVE)
81116CBRACKET, HEADLAMP, RH
SOUTH AFRICA SPEC&HEAD LAMP AIMING-RH AIMING(FOR LHD CAR)
81134GASKET, HEADLAMP
HEADLAMP-DISCHARGE
81135UNIT ASSY, HEADLAMP, RH
HEAD LAMP AIMING-RH AIMING(FOR LHD CAR)
main81130-02A40supersedes 81130-02A90iNDE150..LHD..6F..TERRA;NDE150,ZRE152..LHD..(E,SOL);ADE150,NRE150,ZRE151,ZWE150..LHD200912-201305
SOUTH AFRICA SPEC&HEAD LAMP AIMING-RH AIMING(FOR LHD CAR)
HEAD LAMP AIMING-RH AIMING(FOR LHD CAR)
SPORT PACKAGE
main81130-02A70iADE157..LHD; NDE150,ZRE151..RHD..SOL..(DCRL,HTWVM); NDE150..LHD..SOL..DCRL200912-201210
SPORT PACKAGE; SPORT PACKAGE&HEAD LAMP AIMING-RH AIMING(FOR LHD CAR)
HONG KONG SPEC&HEAD LAMP AIMING-RH AIMING(FOR LHD CAR)
HEADLAMP-DISCHARGE
HEADLAMP-DISCHARGE(FOR PREMIUM ACTIVE)
HEADLAMP-DISCHARGE&HEAD LAMP AIMING-RH AIMING(FOR LHD CAR)
HEADLAMP-DISCHARGE; HEADLAMP-DISCHARGE&HEAD LAMP AIMING-RH AIMING(FOR LHD CAR)
SPORT PACKAGE&HEADLAMP-DISCHARGE(ACTIVE)
HEADLAMP-DISCHARGE(ACTIVE); SPORT PACKAGE&HEADLAMP-DISCHARGE(ACTIVE)
HEADLAMP-DISCHARGE
HEADLAMP-DISCHARGE
81145COVER, HEADLAMP, NO.2
HEADLAMP-DISCHARGE; HEADLAMP-DISCHARGE(ACTIVE)
81156ABRACKET, HEADLAMP, LH
SOUTH AFRICA SPEC&HEADLAMP-DISCHARGE&HEAD LAMP AIMING-RH AIMING(FOR LHD CAR)
81175UNIT ASSY, HEADLAMP, LH
HEAD LAMP AIMING-RH AIMING(FOR LHD CAR)
main81170-02540supersedes 81170-02A80iNDE150..LHD..6F..TERRA;NDE150,ZRE152..LHD..(E,SOL);ADE150,NRE150,ZRE151,ZWE150..LHD200912-201305
HEADLAMP-DISCHARGE
HEADLAMP-DISCHARGE(FOR PREMIUM ACTIVE)
HEADLAMP-DISCHARGE
HEADLAMP-DISCHARGE; HEADLAMP-DISCHARGE&HEAD LAMP AIMING-RH AIMING(FOR LHD CAR)
HEADLAMP-DISCHARGE(ACTIVE)
HEADLAMP-DISCHARGE(ACTIVE); SPORT PACKAGE&HEADLAMP-DISCHARGE(ACTIVE)
HEADLAMP-DISCHARGE
HONG KONG SPEC&HEADLAMP-DISCHARGE&HEAD LAMP AIMING-RH AIMING(FOR LHD CAR)
SOUTH AFRICA SPEC&HEADLAMP-DISCHARGE&HEAD LAMP AIMING-RH AIMING(FOR LHD CAR)
HEAD LAMP AIMING-RH AIMING(FOR LHD CAR)
SPORT PACKAGE
main81170-02A60iADE150..5D..SOL;ZRE15#..LHD..SOL..HTWVM; NRE150..LHD..SOL; NRE150..RHD..SOL201006-201210
SPORT PACKAGE; SPORT PACKAGE&HEAD LAMP AIMING-RH AIMING(FOR LHD CAR); SPORT PACKAGE&HEADLAMP-HALOGEN(ACTIVE)
HONG KONG SPEC&HEAD LAMP AIMING-RH AIMING(FOR LHD CAR)
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
main81193-12060iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
main81194-12100iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
main81195-12130iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
main81196-12040iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)200811-201001
main81196-12130iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912
81197BRACKET, HEADLAMP, LOWER RH
main81197-12030iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912
main81197-12040iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200811-200912
81198BRACKET, HEADLAMP, LWR LH
main81198-12030iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W; 12V 21W,SOUTH AFRICA SPEC&HEADLAMP-DISCHARGE&HEAD LAMP AIMING-RH AIMING(FOR LHD CAR)
81515BSOCKET, FRONT TURN SIGNAL LAMP
SOUTH AFRICA SPEC&HEAD LAMP AIMING-RH AIMING(FOR LHD CAR)
81610FBULB(FOR CLEARANCE LAMP)
12V 5W; 12V 5W,SOUTH AFRICA SPEC&HEAD LAMP AIMING-RH AIMING(FOR LHD CAR)
81615DSOCKET, CLEARANCE LAMP
SOUTH AFRICA SPEC&HEAD LAMP AIMING-RH AIMING(FOR LHD CAR)
9010906382
main90109-06382
9015950388
main90159-50388
9017906127
main90179-06127
9018905142
main90189-05142
23 parts on this diagram · 2 diagrams in section
