SEAT BELT & CHILD RESTRAINT SEAT

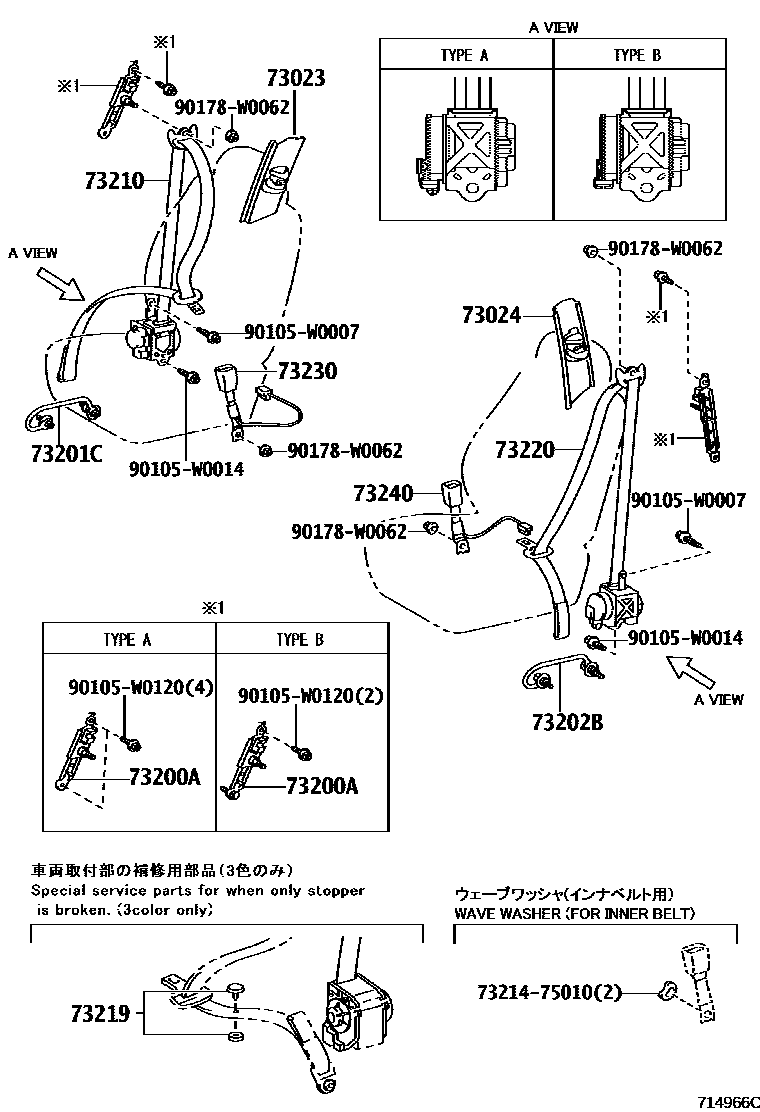

0001 1FRONT SEAT BELT 0002 1FRONT SEAT BELT 0003 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-02011-B1iNDE150..5D..(6F,6FS);ADE15#,NRE150,ZRE15#..5D..(4FC,6F,6FS)..(DCRL,HTWC,HTWVM)200811-201001

LT.GRAY,TRIM1#

main73023-02011-E0iADE15#..5D..SOL200702-200903

GREGE,TRIM4#

main73023-02030-B0iNDE150,ZRE151..3D200702-200902

LT.GRAY,TRIM1#

main73023-02030-E0iNDE150..3D..(6F,6FS)..SOL;ADE15#,NRE150,ZRE15#..3D..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200811-201001

GREGE,TRIM4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-02011-B1iNDE150..5D..(6F,6FS);ADE15#,NRE150,ZRE15#..5D..(4FC,6F,6FS)..(DCRL,HTWC,HTWVM)200811-201001

LT.GRAY,TRIM1#

main73024-02011-E0iNDE150..5D..(6F,6FS)..(E,SOL);ADE15#,NRE150,ZRE15#..5D..(4FC,6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200811-201001

GREGE,TRIM4#

main73024-02030-B0iADE15#,NDE150,NRE150,ZRE15#..3D201001-201210

LT.GRAY,TRIM1#

main73024-02030-E0iNDE150..3D..(5F,5FS)..SOL;ADE15#,ZRE151,ZZE150..3D..SOL..(DCR,DCRL,HTWC)200702-200903

GREGE,TRIM4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-02100×2iZZE150200702-200811

TYPE A:REFER ILLUST.

main73200-02110×2iADE15#200702-200903

TYPE B:REFER ILLUST.

73201CBAR SUB-ASSY, FRONT SEAT BELT, OUTER RH

main73201-02020iZZE150..3D200702-200811

73202BBAR SUB-ASSY, FRONT SEAT BELT, OUTER LH

main73202-02020iZZE150..3D200702-200811

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-02220-C1iADE15#..5D200702-200903

BLACK,TRIM1#

main73210-02220-E0iNDE150..5D..5F..SOL;NDE150..LHD..5D..5FS..SOL; ZRE151..5D..SOL;NDE150..RHD..5D..5FS200702-200902

GREGE,TRIM0#,4#; GREGE,TRIM4#

main73210-02221-C2iADE150..LHD..5D;NDE150..5D..(E,SOL);NDE150..5D..6F..TERRA;ADE157,NRE150,ZRE15#,ZWE150..5D200912-201109

BLACK,TRIM1#,TYPE A

main73210-02221-E0iADE15#,ZRE152..LHD..5D..SOL;NDE150,NRE150,ZRE151..5D..(E,SOL)200912-201109

GREGE,TRIM4#,TYPE A

main73210-02222-C2iADE15#,NDE150,NRE150,ZRE15#,ZWE150..5D201109-201305

BLACK,TRIM1#,TYPE B

main73210-02222-E0iADE150,NDE150,NRE150,ZRE15#..5D..(E,SOL)201109-201210

GREGE,TRIM4#,TYPE B

main73210-02280-C1iNDE150..3D..(6F,6FS);ADE15#,NRE150,ZRE15#..3D..(6F,6FS)..(DCRL,HTWC,HTWVM)200811-201001

BLACK,TRIM1#

main73210-02280-E0iADE15#..LHD..3D..SOL; ADE15#..RHD..3D200702-200903

GREGE,TRIM0#,4#; GREGE,TRIM4#

main73210-02281-C2iADE15#,NDE150,NRE150,ZRE15#..3D201001-201109

BLACK,TRIM1#,TYPE A

main73210-02281-E0iADE15#,NDE150,NRE150,ZRE15#..3D..SOL201001-201109

GREGE,TRIM4#,TYPE A

main73210-02282-C2iADE15#,NDE150,NRE150,ZRE15#..3D201109-201210

BLACK,TRIM1#,TYPE B

main73210-02282-E0iADE150,NDE150,NRE150,ZRE15#..3D..SOL201109-201210

GREGE,TRIM4#,TYPE B

73219STOPPER, TONGUE PLATE

main73219-33010iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200811-200912

BLACK

main73219-33020iNDE150,ZRE151200702-200902

GRAY

main73219-33030iNDE150,ZRE151200702-200902

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-02120-C1iADE15#..5D200702-200903

BLACK,TRIM1#

main73220-02120-E0iADE15#..5D..SOL200702-200903

GREGE,TRIM0#,4#

main73220-02121-C2iADE150..LHD..5D;NDE150..5D..(E,SOL);NDE150..5D..6F..TERRA;ADE157,NRE150,ZRE15#,ZWE150..5D200912-201109

BLACK,TRIM1#,TYPE A

main73220-02121-E0iADE15#,ZRE152..LHD..5D..SOL;NDE150,NRE150,ZRE151..5D..(E,SOL)200912-201109

GREGE,TRIM4#,TYPE A

main73220-02122-C2iADE15#,NDE150,NRE150,ZRE15#,ZWE150..5D201109-201305

BLACK,TRIM1#,TYPE B

main73220-02122-E0iADE150,NDE150,NRE150,ZRE15#..5D..(E,SOL)201109-201210

GREGE,TRIM4#,TYPE B

main73220-02220-C1iNDE150..3D..(6F,6FS);ADE15#,NRE150,ZRE15#..3D..(6F,6FS)..(DCRL,HTWC,HTWVM)200811-201001

BLACK,TRIM1#

main73220-02220-E0iNDE150..LHD..3D..SOL; ZRE151..3D..SOL;NDE150..RHD..3D..SOL200702-200902

GREGE,TRIM0#,4#; GREGE,TRIM4#

main73220-02221-C2iADE15#,NDE150,NRE150,ZRE15#..3D201001-201109

BLACK,TRIM1#,TYPE A

main73220-02221-E0iADE15#,NDE150,NRE150,ZRE15#..3D..SOL201001-201109

GREGE,TRIM4#,TYPE A

main73220-02222-C2iADE15#,NDE150,NRE150,ZRE15#..3D201109-201210

BLACK,TRIM1#,TYPE B

main73220-02222-E0iADE150,NDE150,NRE150,ZRE15#..3D..SOL201109-201210

GREGE,TRIM4#,TYPE B

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-02240-B0iNDE150..RHD..(5F,5FS);ADE15#,ZRE151,ZZE150..RHD..(DCR,DCRL,HTWC)200702-200903

DK.GRAY,TRIM1#,*154

main73230-02240-E0iNDE150..RHD..(5F,5FS)..SOL;ADE15#,ZRE151,ZZE150..RHD..SOL..(DCR,DCRL,HTWC)200702-200903

GREGE,TRIM4#,*154

main73230-02241-C0iNDE150,NRE150,ZRE151..RHD..3D201001-201210

BLACK,TRIM1#

main73230-02241-E0iNDE150,NRE150,ZRE151..RHD..3D..SOL201001-201210

GREGE,TRIM4#

main73230-02260-B0iNDE150..LHD..(6F,6FS);ADE15#,NRE150,ZRE15#..LHD..(4FC,6F,6FS)..(DCRL,HTWC,HTWVM)200811-201001

DK.GRAY,TRIM1#,*154

main73230-02260-E0iNDE150..LHD..(5F,5FS)..SOL;ADE15#,ZRE151,ZZE150..LHD..SOL..(DCR,DCRL,HTWC)200702-200903

GREGE,TRIM4#,*154

main73230-02261-C0iADE15#,NDE150,NRE150,ZRE15#..LHD..3D201001-201210

BLACK,TRIM1#

main73230-02261-E0iADE15#,NDE150,NRE150,ZRE15#..LHD..3D..SOL201001-201210

GREGE,TRIM4#

main73230-02360-B0iNDE150..RHD..(5F,5FS);ADE15#,ZRE151,ZZE150..RHD..(DCR,DCRL,HTWC)200702-200903

DK.GRAY,TRIM1#,*153

main73230-02360-E0iNDE150..RHD..(6F,6FS)..(E,SOL);ADE15#,NRE150,ZRE15#..RHD..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200811-201001

GREGE,TRIM4#,*153

main73230-02361-C0iNDE150,NRE150,ZRE151,ZWE150..RHD..5D200912-201211

BLACK,TRIM1#

main73230-02361-E0iNDE150,NRE150,ZRE151..RHD..5D..(E,SOL)200912-201210

GREGE,TRIM4#

main73230-02380-B0iNDE150..LHD..(6F,6FS);ADE15#,NRE150,ZRE15#..LHD..(4FC,6F,6FS)..(DCRL,HTWC,HTWVM)200811-201001

DK.GRAY,TRIM1#,*153

main73230-02380-E0iNDE150..LHD..(6F,6FS)..(E,SOL);ADE15#,NRE150,ZRE15#..LHD..(4FC,6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200811-201001

GREGE,TRIM4#,*153

main73230-02381-C0iNDE150..LHD..5D..(E,SOL);NDE150..LHD..5D..6F..TERRA;ADE15#,NRE150,ZRE15#,ZWE150..LHD..5D200912-201305

BLACK,TRIM1#

main73230-02381-E0iADE15#,NDE150,NRE150,ZRE15#..LHD..5D..(E,SOL)200912-201210

GREGE,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-02240-B0iNDE150..LHD..(6F,6FS);ADE15#,NRE150,ZRE15#..LHD..(4FC,6F,6FS)..(DCRL,HTWC,HTWVM)200811-201001

DK.GRAY,TRIM1#,*154

main73230-02240-E0iNDE150..LHD..(6F,6FS)..(E,SOL);ADE15#,NRE150,ZRE15#..LHD..(4FC,6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200811-201001

GREGE,TRIM4#,*154

main73230-02241-C0iADE15#,NDE150,NRE150,ZRE15#..LHD..3D201001-201210

BLACK,TRIM1#

main73230-02241-E0iADE15#,NDE150,NRE150,ZRE15#..LHD..3D..SOL201001-201210

GREGE,TRIM4#

main73230-02260-B0iNDE150..RHD..(5F,5FS);ADE15#,ZRE151,ZZE150..RHD..(DCR,DCRL,HTWC)200702-200903

DK.GRAY,TRIM1#,*154

main73230-02260-E0iNDE150..RHD..(6F,6FS)..(E,SOL);ADE15#,NRE150,ZRE15#..RHD..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200811-201001

GREGE,TRIM4#,*154

main73230-02261-C0iNDE150,NRE150,ZRE151..RHD..3D201001-201210

BLACK,TRIM1#

main73230-02261-E0iNDE150,NRE150,ZRE151..RHD..3D..SOL201001-201210

GREGE,TRIM4#

main73230-02360-B0iNDE150..LHD..(5F,5FS);ADE15#,ZRE151,ZZE150..LHD..(DCR,DCRL,HTWC)200702-200903

DK.GRAY,TRIM1#,*153

main73230-02360-E0iNDE150..LHD..(5F,5FS)..SOL;ADE15#,ZRE151,ZZE150..LHD..SOL..(DCR,DCRL,HTWC)200702-200903

GREGE,TRIM4#,*153

main73230-02361-C0iNDE150..LHD..5D..(E,SOL);NDE150..LHD..5D..6F..TERRA;ADE15#,NRE150,ZRE15#,ZWE150..LHD..5D200912-201305

BLACK,TRIM1#

main73230-02361-E0iADE15#,NDE150,NRE150,ZRE15#..LHD..5D..(E,SOL)200912-201210

GREGE,TRIM4#

main73230-02380-B0iNDE150..RHD..(6F,6FS);ADE15#,NRE150,ZRE15#..RHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200811-201001

DK.GRAY,TRIM1#,*153

main73230-02380-E0iNDE150..RHD..(6F,6FS)..(E,SOL);ADE15#,NRE150,ZRE15#..RHD..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200811-201001

GREGE,TRIM4#,*153

main73230-02381-C0iNDE150,NRE150,ZRE151,ZWE150..RHD..5D200912-201211

BLACK,TRIM1#

main73230-02381-E0iNDE150,NRE150,ZRE151..RHD..5D..(E,SOL)200912-201210

GREGE,TRIM4#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

90105W0007

main90105-W0007

90105W0014

main90105-W0014

90105W0120

main90105-W0120

90178W0062

main90178-W0062

15 parts on this diagram · 3 diagrams in section
