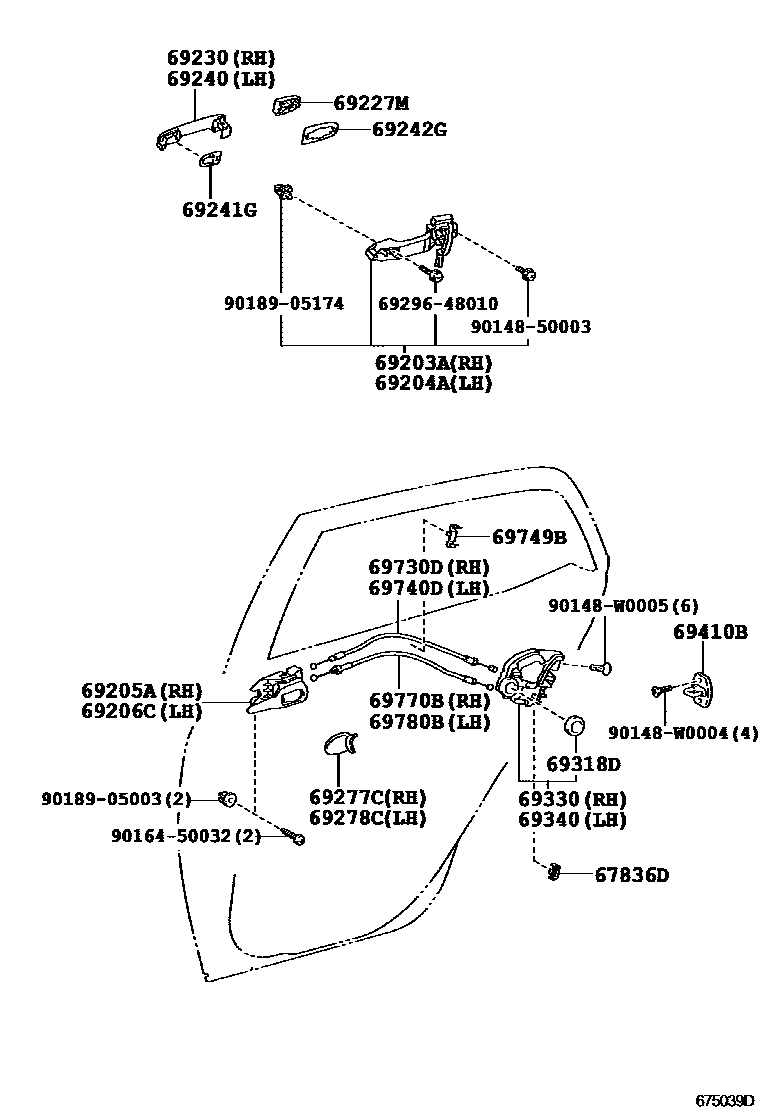

REAR DOOR LOCK & HANDLE
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
main69204-02120iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200702-201001
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
main69205-02120-B1iNDE150..5D..(6F,6FS)..(E,SOL);ADE15#,NRE150,ZRE15#..5D..(4FC,6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200702-201001
SILVER,TRIM1#,4#
SILVER,TRIM1#
ORNAMENT SILVER,TRIM1#
ORNAMENT SILVER,TRIM1#,4#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
SILVER,TRIM1#,4#
SILVER,TRIM1#
ORNAMENT SILVER,TRIM1#,4#
ORNAMENT SILVER,TRIM1#
69227MCOVER, REAR DOOR OUTSIDE HANDLE
BLACK
LESS COLOR
LESS COLOR,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
LESS COLOR,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
LESS COLOR,POWER DOOR LOCK-WITH(DOUBLE LOCK)
LESS COLOR,POWER DOOR LOCK-WITH(DOUBLE LOCK)&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
LESS COLOR,POWER DOOR LOCK-WITH(DOUBLE LOCK)&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
LESS COLOR,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTIABLE(COLORED)
LESS COLOR,POWER DOOR LOCK-WITH(DOUBLE LOCK)&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTIABLE(COLORED)
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
NO PAINT REQ.
PAINT REQ.
PAINT REQ.,POWER DOOR LOCK-WITH(DOUBLE LOCK)&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
PAINT REQ.,POWER DOOR LOCK-WITH(DOUBLE LOCK)&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
PAINT REQ.,POWER DOOR LOCK-WITH(DOUBLE LOCK)&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTIABLE(COLORED)
PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTIABLE(COLORED)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
main69211-0D070iNDE150..5D..6F..(E,TERRA);ADE150,NRE150,ZRE15#..5D..(6F,6FS)..TERRA..(DCRL,HTWC,HTWVM)200702-201001
NO PAINT REQ.
PAINT REQ.
PAINT REQ.,POWER DOOR LOCK-WITH(DOUBLE LOCK)&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
PAINT REQ.,POWER DOOR LOCK-WITH(DOUBLE LOCK)&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
PAINT REQ.,POWER DOOR LOCK-WITH(DOUBLE LOCK)&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTIABLE(COLORED)
PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTIABLE(COLORED)
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
main69241-0D030iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200702-201001
sub69241-48020
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
*153
*154
main69242-52020iADE150..LHD..5D;NDE150..5D..(E,SOL);NDE150..5D..6F..TERRA;ADE157,NRE150,ZRE15#..5D..MTM200903-201001
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
DK.GRAY,TRIM1#
GREGE,TRIM4#
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
DK.GRAY,TRIM1#
GREGE,TRIM4#
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
main69050-02180iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200702-201001
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69749BCLAMP, REAR DOOR LOCK LINK
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
6929648010SCREW, DOOR INSIDE HANDLE
main69296-48010
9014850003
main90148-50003
90148W0004
main90148-W0004
90148W0005
main90148-W0005
9016450032
main90164-50032
9018905003
main90189-05003
9018905174
main90189-05174
28 parts on this diagram · 1 diagram in section
