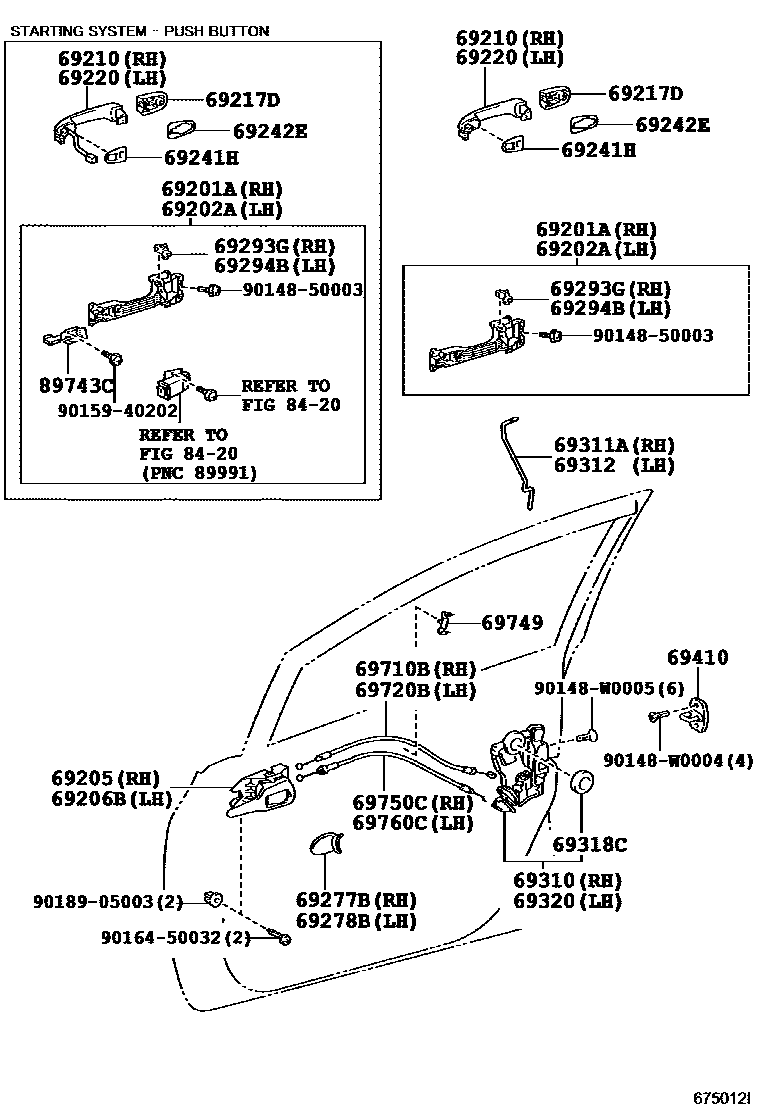

FRONT DOOR LOCK & HANDLE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-0D030iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)200702-201001
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
SILVER,TRIM1#,4#
SILVER,TRIM1#
ORNAMENT SILVER,TRIM1#,4#
ORNAMENT SILVER,TRIM1#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-02120-B1iNDE150..(6F,6FS)..TERRA;ADE150,NRE150,ZRE15#..(4FC,6F,6FS)..TERRA..(DCRL,HTWC,HTWVM)200702-201001
SILVER,TRIM1#,4#
SILVER,TRIM1#
ORNAMENT SILVER,TRIM1#,4#
ORNAMENT SILVER,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
GRAY ME.,1G3
SILVER ME.,1F7
DK. STEEL MC.,1H2
BLACK MC.,209
RED M.M.,3R3
LT.BLUE M.M.,8S1
DK.BLUE MC.,8S6
BLUE ME.,8T7
NO PAINT REQ.
PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
PAINT REQ.,POWER DOOR LOCK-WITH(DOUBLE LOCK)&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
PAINT REQ.,POWER DOOR LOCK-WITH(DOUBLE LOCK)&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
PAINT REQ.
PAINT REQ.,POWER DOOR LOCK-WITH(DOUBLE LOCK)&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTIABLE(COLORED)
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
BLACK,DRIVER SIDE
main69217-0D050iNDE150..3D..(6F,6FS)..TERRA;NDE150,ZRE151..5D..(4FC,6FS)..TERRA..(DCR,DCRL,HTWC);ADE150,NRE150,ZRE15#..3D..(6F,6FS)..TERRA..(DCRL,HTWC,HTWVM)200702-201001
BLACK,PASSENGER SIDE
main69217-0D903iNDE150..5D..6F..(E,TERRA);ADE150,NRE150,ZRE15#..5D..(6F,6FS)..TERRA..(DCRL,HTWC,HTWVM)200702-201001
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER,DRIVER SIDE
main69217-0D903iNDE150..5D..6F..(E,TERRA);ADE150,NRE150,ZRE15#..5D..(6F,6FS)..TERRA..(DCRL,HTWC,HTWVM)200702-201001
POWER DOOR LOCK-WITH(DOUBLE LOCK)&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DRIVER SIDE
main69217-0D903iNDE150..5D..6F..(E,TERRA);ADE150,NRE150,ZRE15#..5D..(6F,6FS)..TERRA..(DCRL,HTWC,HTWVM)200702-201001
POWER DOOR LOCK-WITH(DOUBLE LOCK)&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER,DRIVER SIDE
main69217-0D903iNDE150..5D..6F..(E,TERRA);ADE150,NRE150,ZRE15#..5D..(6F,6FS)..TERRA..(DCRL,HTWC,HTWVM)200702-201001
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DRIVER SIDE
main69217-0D903iZRE151..4FC..SOL;ADE150..RHD..DCRL;ADE150..LHD..3D..SOL..DCRL;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)..SOL200702-201001
DRIVER SIDE
POWER DOOR LOCK-WITH(DOUBLE LOCK)&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTIABLE(COLORED),DRIVER SIDE
OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTIABLE(COLORED),DRIVER SIDE
POWER DOOR LOCK-WITH(DOUBLE LOCK)&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTIABLE(COLORED),PASSENGER SIDE
PASSENGER SIDE
POWER DOOR LOCK-WITH(DOUBLE LOCK)&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),PASSENGER SIDE
POWER DOOR LOCK-WITH(DOUBLE LOCK)&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER,PASSENGER SIDE
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),PASSENGER SIDE
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER,PASSENGER SIDE
OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTIABLE(COLORED),PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
GRAY ME.,1G3
SILVER ME.,1F7
DK. STEEL MC.,1H2
BLACK MC.,209
RED M.M.,3R3
LT.BLUE M.M.,8S1
DK.BLUE MC.,8S6
BLUE ME.,8T7
main69211-0D070iNDE150..(6F,6FS)..(E,TERRA);ADE150,NRE150,ZRE15#..(4FC,6F,6FS)..TERRA..(DCRL,HTWC,HTWVM)200702-201305
NO PAINT REQ.
PAINT REQ.,POWER DOOR LOCK-WITH(DOUBLE LOCK)&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
PAINT REQ.
PAINT REQ.,POWER DOOR LOCK-WITH(DOUBLE LOCK)&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
PAINT REQ.,POWER DOOR LOCK-WITH(DOUBLE LOCK)&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTIABLE(COLORED)
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
main69241-02040iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200702-201001
*153
main69241-0D020iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200702-201001
*154
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
*153
*154
main69242-52020iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200903-201001
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
DK.GRAY,TRIM1#
main69277-02100-E0iNDE150..(6F,6FS)..(E,SOL);ADE15#,NRE150,ZRE15#..(4FC,6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200702-201210
GREGE,TRIM4#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
main69278-02090-B0iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200702-201305
DK.GRAY,TRIM1#
GREGE,TRIM4#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
main69293-12030iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)200702-201001
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
main69030-02220iNDE150..LHD..5D..6F..TERRA;NDE150..LHD..5D..(6F,6FS)..(E,SOL);ADE15#,NRE150,ZRE15#..LHD..5D..(6F,6FS)..(DCRL,HTWC,HTWVM)200702-201001
sub69030-02231
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-02120iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200702-201001
main69311-02130iNDE150..3D..(6F,6FS);ADE15#,NRE150,ZRE15#..3D..(6F,6FS)..(DCRL,HTWC,HTWVM)200702-201001
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69749CLAMP, FRONT DOOR LOCK LINK
main69749-32040iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200702-201205
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-02110iNDE150..3D..(6F,6FS);ADE15#,NRE150,ZRE15#..3D..(6F,6FS)..(DCRL,HTWC,HTWVM)200702-201001
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-02110iNDE150..3D..(6F,6FS);ADE15#,NRE150,ZRE15#..3D..(6F,6FS)..(DCRL,HTWC,HTWVM)200702-201001
8420
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
RH
LH
9014850003
main90148-50003
90148W0004
main90148-W0004
90148W0005
main90148-W0005
9015940202
main90159-40202
9016450032
main90164-50032
9018905003
main90189-05003
32 parts on this diagram · 1 diagram in section
