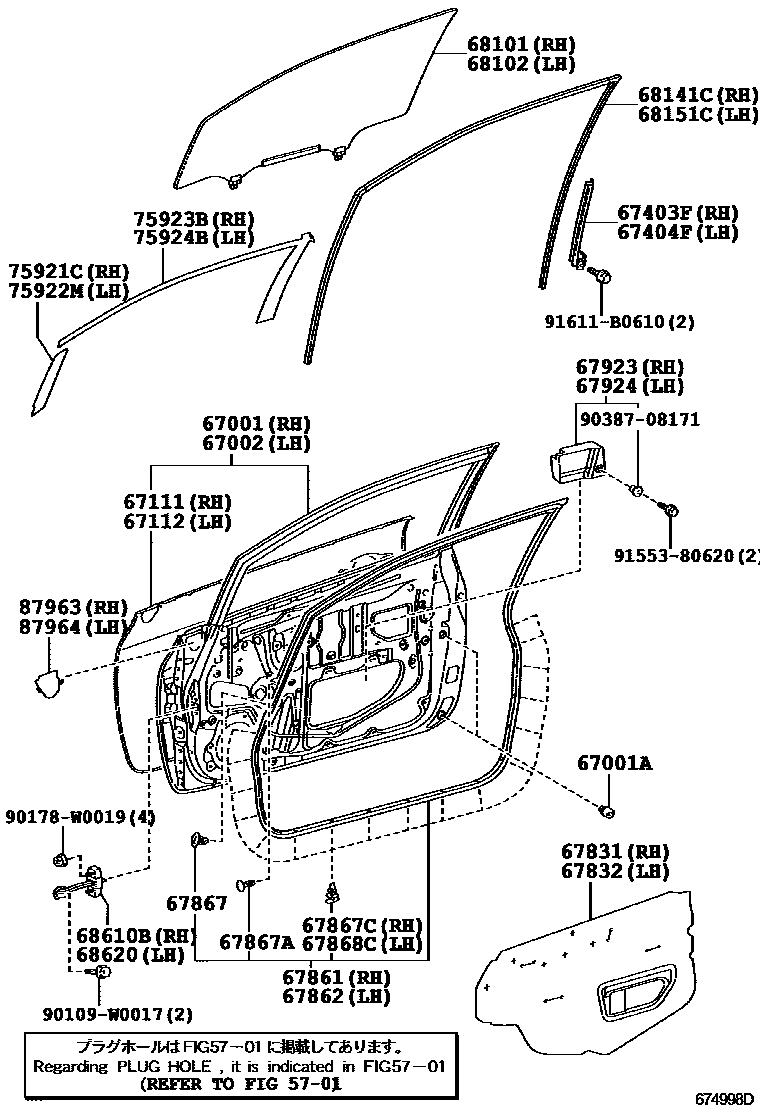

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR TRIM

5701

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-02260iZZE150..5D200702-201305

main67001-02270iADE15#..3D200702-201210

67001ACUSHION, FRONT DOOR PANEL

main90541-09124iZZE150200702-201001

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-02260iZZE150..5D200702-201305

main67002-02270iNDE150,ZRE151..3D200702-201210

67111PANEL, FRONT DOOR, OUTER RH

main67111-02130iNDE150..5D..(5F,5FS);ADE15#,ZRE151,ZZE150..5D..(DCR,DCRL,HTWC)200702-201001

main67111-02140iADE15#,NDE150,NRE150,ZRE15#..3D200702-201001

67112PANEL, FRONT DOOR, OUTER LH

main67112-02130iZZE150..5D200702-201001

main67112-02140iADE15#..3D200702-201001

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-02050iZZE150200702-201001

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-02050iNDE150,ZRE151200702-201001

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-02160iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200702-201001

main67831-02200iNDE150..3D..(6F,6FS);ADE15#,NRE150,ZRE15#..3D..(6F,6FS)..(DCRL,HTWC,HTWVM)200702-201001

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-02160iZZE150..5D200702-201001

main67832-02200iNDE150,ZRE151..3D200702-201001

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-02170iZZE150..5D200702-201001

main67861-02180iNDE150..3D..(6F,6FS);ADE15#,NRE150,ZRE15#..3D..(6F,6FS)..(DCRL,HTWC,HTWVM)200702-201001

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-02170iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200702-201001

main67862-02180iADE15#..3D200702-201001

67867CLIP, DOOR WEATHERSTRIP

main90467-04034iADE15#..3D200702-201001

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67869-20030iNDE150,ZRE151200702-201001

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iADE15#,NDE150,NRE150,ZRE15#..3D200702-201001

main67868-02020iNDE150,ZRE151..3D200702-201001

sub67867-12150

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iZRE151..4FC;ADE150..RHD..5D..DCRL;NDE150..5D..6FS..TERRA200702-201001

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-02030iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200702-201001

main67923-02050iADE15#,NDE150,NRE150,ZRE15#..3D200702-201001

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-02040iZZE150..5D200702-201001

main67924-02060iZZE150..3D200702-201001

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-02230iZRE151..4FC;ADE150..RHD..5D..DCRL;NDE150..5D..6FS..TERRA200702-201206

*HSEA,T=3.5,GREEN

sub68101-02231

main68101-02231iADE15#,NDE150,NRE150,ZRE15#,ZWE150..5D201207

*HSEA,T=3.5,GREEN

main68101-02240iNDE150..3D..(6F,6FS);ADE15#,NRE150,ZRE15#..3D..(6F,6FS)..(DCRL,HTWC,HTWVM)200702-201206

*HSEA,T=3.5,GREEN

sub68101-02241

main68101-02241iADE15#,NDE150,NRE150,ZRE15#..3D201207

*HSEA,T=3.5,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-02230iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200702-201206

*HSEA,T=3.5,GREEN

sub68102-02231

main68102-02231iADE15#,NDE150,NRE150,ZRE15#,ZWE150..5D201207

*HSEA,T=3.5,GREEN

main68102-02240iNDE150..3D..(6F,6FS);ADE15#,NRE150,ZRE15#..3D..(6F,6FS)..(DCRL,HTWC,HTWVM)200702-201206

*HSEA,T=3.5,GREEN

sub68102-02241

main68102-02241iADE15#,NDE150,NRE150,ZRE15#..3D201207

*HSEA,T=3.5,GREEN

68141CRUN, FRONT DOOR GLASS, RH

main68141-02110iZZE150..5D200702-201001

main68141-02120iZZE150..3D200702-201001

68151CRUN, FRONT DOOR GLASS, LH

main68151-02100iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200702-201001

main68151-02110iADE15#,NDE150,NRE150,ZRE15#..3D200702-201001

68610BCHECK ASSY, FRONT DOOR, RH

main68610-02110iADE15#,NDE150,ZRE151,ZZE150..3D200702-200809

sub68610-02111

main68610-02111iNDE150,ZRE151..3D200810-201001

main68610-02120iADE15#,NDE150,ZRE151,ZZE150..5D200702-200809

sub68610-02121

main68610-02121iADE150..LHD..5D;NDE150..5D..(E,SOL);NDE150..5D..6F..TERRA;ADE157,NRE150,ZRE15#,ZWE150..5D200810-201001

68620CHECK ASSY, FRONT DOOR, LH

main68610-02110iADE15#,NDE150,ZRE151,ZZE150..3D200702-200809

sub68610-02111

main68610-02111iADE15#..3D200810-201001

main68610-02120iADE15#,NDE150,ZRE151,ZZE150..5D200702-200809

sub68610-02121

main68610-02121iNDE150,ZRE151..5D200810-201001

75921CTAPE, BLACK OUT, NO.1 RH

main75921-02080iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200702-201001

75922MTAPE, BLACK OUT, NO.1 LH

main75922-02080iZZE150200702-201001

75923BTAPE, BLACK OUT, NO.2 RH

main75923-02090iZZE150..5D200702-201001

main75923-02100iZZE150..3D200702-201001

75924BTAPE, BLACK OUT, NO.2 LH

main75924-02090iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200702-201001

main75924-02100iADE15#,NDE150,NRE150,ZRE15#..3D200702-201001

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-12010iZZE150200702-201001

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-12010iZZE150200702-201001

90109W0017

main90109-W0017

90178W0019

main90178-W0019

9038708171

main90387-08171

9155380620

main91553-80620

91611B0610

main91611-B0610

35 parts on this diagram · 3 diagrams in section
