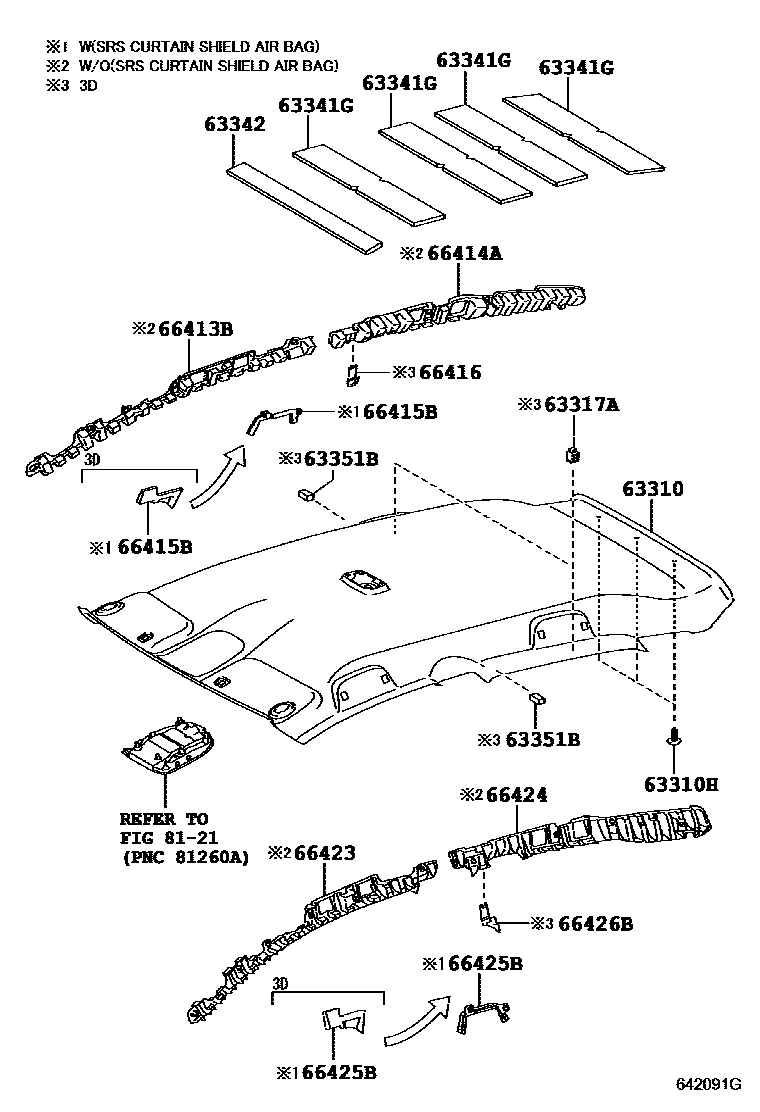

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1W(MOON ROOF)

63310HEADLINING ASSY, ROOF

main63310-02430-B1iNDE150,ZRE151..5D200702-200902

LT.GRAY,TRIM1#

main63310-02430-E1iADE15#,ZRE152..LHD..5D..SOL;NDE150,NRE150,ZRE151..5D..(E,SOL)200912-201210

GRAGE,TRIM4#

main63310-02460-B1iNDE150,ZRE151..3D200702-200902

LT.GRAY,TRIM1#

main63310-02460-E1iNDE150..3D..(6F,6FS)..SOL;ADE15#,NRE150,ZRE15#..3D..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200811-201001

GRAGE,TRIM4#

main63310-02450-B1iADE15#,NRE150,ZRE15#..5D..(4FC,6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200811-201001

MOON ROOF-WITH,LT.GRAY,TRIM1#

main63310-02450-E1supersedes 63310-02430-E1iADE15#..5D..SOL200702-200903

MOON ROOF-WITH,GRAGE,TRIM4#

main63310-02470-B1iADE15#..3D..SOL200702-200903

MOON ROOF-WITH,LT.GRAY,TRIM1#

main63310-02470-E1supersedes 63310-02460-E1iZZE150..3D..SOL200702-200811

MOON ROOF-WITH,GRAGE,TRIM4#

63310HCLIP(FOR ROOF HEADLINING)

main90467-W0006-B0×3iZZE150200702-200811

LT.GRAY,TRIM1#

main90467-W0006-E0×3iADE15#..5D..SOL;ADE15#..LHD..3D..SOL; ADE15#..RHD..3D200702-200903

GREGE,TRIM0#,4#; GREGE,TRIM4#

63317ARETAINER, ROOF HEADLINING

main63317-13020×2iZZE150..3D200702-200811

63341GPAD, ROOF SILENCER

main63341-02051×4iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS); ADE150..LHD..5D..SOL..DCRL;ADE157,NRE150,ZRE15#..5D..(6F,6FS)..SOL200811-200912

MOON ROOF-WITH

63342PAD, ROOF SILENCER, NO.2

main63342-02090iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200811-200912

63351BPAD, ROOF HEADLINING

main63351-02130×2iZZE150..3D200702-200811

66413BSPACER, SIDE RAIL, FRONT RH

main66413-12030iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200811-200912

66414ASPACER, SIDE RAIL, REAR RH

main66414-12040iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200811-200912

66415BSPACER, SIDE RAIL, REAR NO.2 RH

main66415-12030iZWE150201006

main66415-12040iZZE150..3D200702-200811

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

66416SPACER, SIDE RAIL, REAR NO.3 RH

main66414-12080iNDE150..3D..(6F,6FS);ADE15#,NRE150,ZRE15#..3D..(6F,6FS)..(DCRL,HTWC,HTWVM)200811-201001

66423SPACER, SIDE RAIL, FRONT LH

main66423-12030iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200811-200912

66424SPACER, SIDE RAIL, REAR LH

main66424-12040iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200811-200912

66425BSPACER, SIDE RAIL, REAR NO.2 LH

main66425-12030iZWE150201006

main66425-12040iADE15#..3D200702-200903

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

66426BSPACER, SIDE RAIL, REAR NO.3 LH

main66424-12080iNDE150..3D..(6F,6FS);ADE15#,NRE150,ZRE15#..3D..(6F,6FS)..(DCRL,HTWC,HTWVM)200811-201001

8121INTERIOR LAMP

→ Go to FIG 81-21

15 parts on this diagram · 2 diagrams in section
