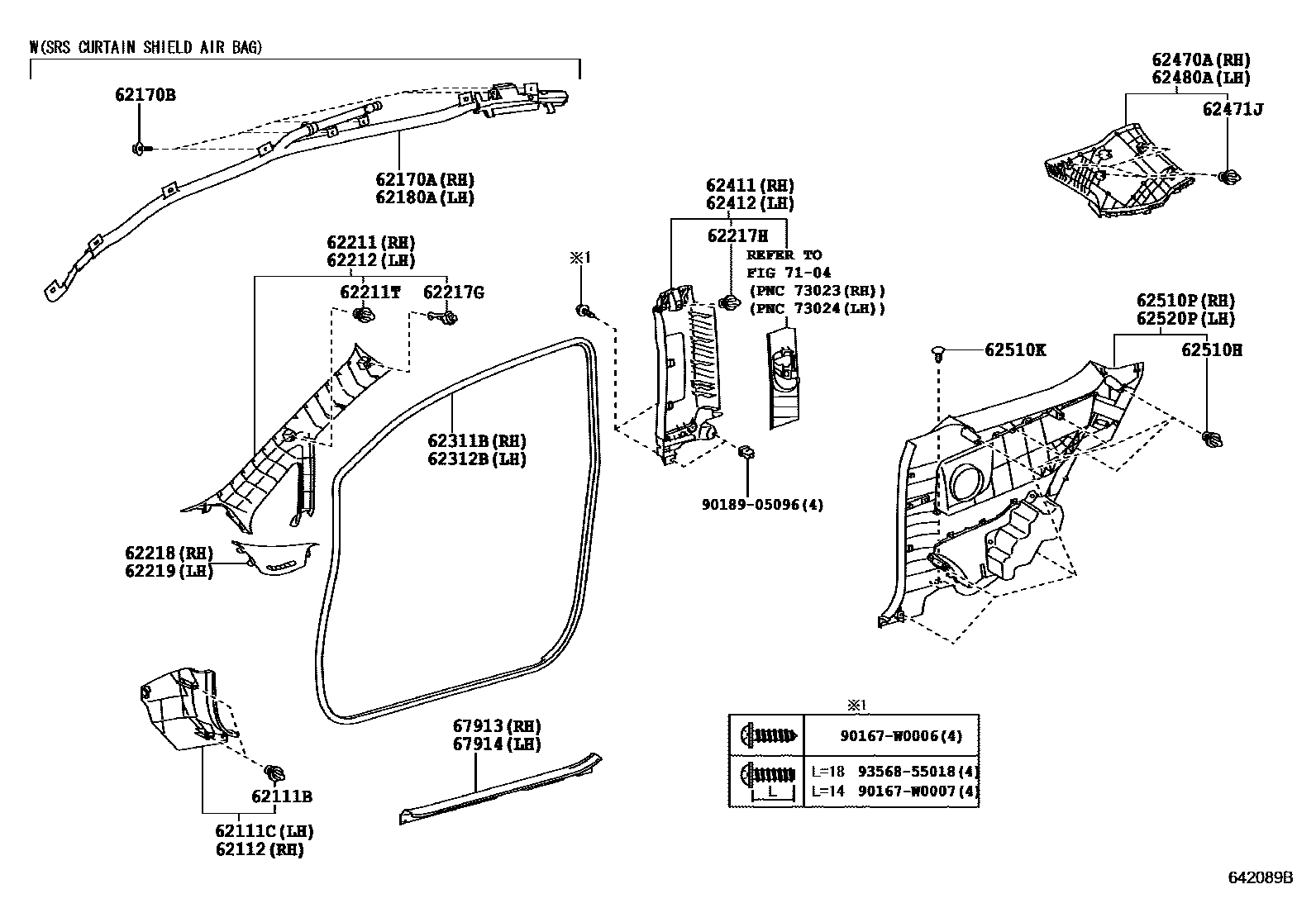

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62111BCLIP(FOR COWL SIDE TRIM)

main90467-W0005iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)200702-201001

62111CBOARD, COWL SIDE TRIM, RH

main62111-02110-B1iNDE150,ZRE151..SOL200702-201210

DK.GRAY,TRIM1#,4#

main62111-02110-B1iNDE150,ZRE151..TERRA200702-201305

DK.GRAY,TRIM1#

62112BOARD, COWL SIDE TRIM, LH

main62112-02110-B1iNDE150..(6F,6FS)..(E,SOL);ADE15#,NRE150,ZRE15#..(4FC,6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200702-201210

DK.GRAY,TRIM1#,4#

main62112-02110-B1iZZE150..SOL200702-201305

DK.GRAY,TRIM1#

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-02070iZWE150201006

62170BBOLT, W/WASHER

main90119-W0078iZWE150201006

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-02070iZWE150201006

62211GARNISH, FRONT PILLAR, RH

main62210-02030-B0iZZE150200702-201305

LT.GRAY,TRIM1#

main62210-02030-E0iADE15#..5D..SOL;ADE15#..LHD..3D..SOL200702-201210

GREGE,TRIM4#

main62210-02030-E0iZZE150..5D..SOL;ZZE150..LHD..3D..SOL200702-200903

GREGE,TRIM0#,4#

main62210-02080-B0iZWE150201006-201211

LT.GRAY,TRIM1#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-W0005iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200702-201001

62212GARNISH, FRONT PILLAR, LH

main62220-02030-B0iADE15#..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200702-201305

LT.GRAY,TRIM1#

main62220-02030-E0iZRE151..SOL;NDE150..RHD..5FS;NDE150..RHD..3D..5F..SOL200702-201210

GREGE,TRIM4#

main62220-02030-E0iNDE150..5D..5F..SOL;NDE150..LHD..5FS..SOL;NDE150..LHD..3D..5F..SOL200702-200903

GREGE,TRIM0#,4#

main62220-02080-B0iZWE150201006-201211

LT.GRAY,TRIM1#

62217GCLIP, FRONT PILLAR GARNISH

main90950-08004iZZE150200702-201001

62217HCLIP, CENTER PILLER GARNISH

main62217-13010iZZE150200702-201001

62218PIECE, FRONT PILLAR GARNISH CORNER, RH

main62218-02010iNDE150,ZRE151200702-201001

62219PIECE, FRONT PILLAR GARNISH CORNER, LH

main62219-02010iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)200702-201001

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-02110-B0iZZE150..5D..SOL200702-201305

DK.GRAY,TRIM1#

main62311-02110-B0iZZE150..5D..TERRA200702-200903

DK.GRAY,TRIM0#,1#,4#

main62311-02110-B0iZRE151..5D..SOL;NDE150..RHD..5D..5FS200702-201210

DK.GRAY,TRIM1#,4#

main62311-02120-B0iADE150,NDE150,NRE150,ZRE151..3D..TERRA200702-201210

DK.GRAY,TRIM1#

main62311-02120-B0iADE150,NDE150,NRE150,ZRE151..3D..TERRA200702-201210

DK.GRAY,TRIM1#,4#

main62311-02120-B0iNDE150,ZRE151..3D..TERRA200702-200903

DK.GRAY,TRIM0#,1#,4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-02110-B0iADE15#..5D..SOL200702-200903

DK.GRAY,TRIM0#,1#,4#

main62312-02110-B0iZZE150..5D..SOL200702-201305

DK.GRAY,TRIM1#

main62312-02110-B0iZRE151..5D..SOL;NDE150..RHD..5D..5FS200702-201210

DK.GRAY,TRIM1#,4#

main62312-02120-B0iZZE150..RHD..3D..SOL200702-201210

DK.GRAY,TRIM1#,4#

main62312-02120-B0iZZE150..RHD..3D..SOL200702-200903

DK.GRAY,TRIM0#,1#,4#

main62312-02120-B0iZZE150..RHD..3D..SOL200702-201210

DK.GRAY,TRIM1#

62411GARNISH, CENTER PILLAR, RH

main62410-02070-B2iNDE150,ZRE151..5D200702-201305

LT.GRAY,TRIM1#,*153

main62410-02070-E0iNDE150..5D..5F..SOL;NDE150..LHD..5D..5FS..SOL200702-200903

GREGE,TRIM0#,4#,*153

main62410-02070-E0iNDE150..5D..(6F,6FS)..(E,SOL);ADE15#,NRE150,ZRE15#..5D..(4FC,6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200702-201210

GREGE,TRIM4#,*153

main62410-02080-B2iZZE150..3D200702-201210

LT.GRAY,TRIM1#

main62410-02080-E0iNDE150..LHD..3D..SOL200702-200903

GREGE,TRIM0#,4#

main62410-02080-E0iZZE150..RHD..3D..SOL200702-201210

GREGE,TRIM4#

main62410-02120-B0iADE150..LHD..5D;NDE150..5D..(E,SOL);NDE150..5D..6F..TERRA;ADE157,NRE150,ZRE15#,ZWE150..5D200702-201305

LT.GRAY,TRIM1#,*154

main62410-02120-E0iADE15#,ZRE152..LHD..5D..SOL;NDE150,NRE150,ZRE151..5D..(E,SOL)200702-201210

GREGE,TRIM4#,*154

62412GARNISH, CENTER PILLAR, LH

main62420-02070-B2iADE150..LHD..5D;NDE150..5D..(E,SOL);NDE150..5D..6F..TERRA;ADE157,NRE150,ZRE15#,ZWE150..5D200702-201305

LT.GRAY,TRIM1#,*153

main62420-02070-E0iZZE150..5D..SOL200702-200903

GREGE,TRIM0#,4#,*153

main62420-02070-E0iNDE150..5D..5F..SOL;NDE150..LHD..5D..5FS..SOL200702-201210

GREGE,TRIM4#,*153

main62420-02080-B2iNDE150,ZRE151..3D200702-201210

LT.GRAY,TRIM1#

main62420-02080-E0iZZE150..LHD..3D..SOL200702-201210

GREGE,TRIM4#

main62420-02080-E0iZZE150..LHD..3D..SOL200702-200903

GREGE,TRIM0#,4#

main62420-02120-B0iZZE150..5D200702-201305

LT.GRAY,TRIM1#,*154

main62420-02120-E0iZZE150..5D..SOL200702-201210

GREGE,TRIM4#,*154

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-02040-B0iZWE150201006-201211

LT.GRAY,TRIM1#

main62470-02070-B0iADE15#..5D200702-201305

LT.GRAY,TRIM1#

main62470-02070-E0iNDE150..5D..5F..SOL;NDE150..LHD..5D..5FS..SOL200702-200903

GREGE,TRIM0#,4#

main62470-02070-E0iNDE150..5D..5F..SOL;NDE150..LHD..5D..5FS..SOL200702-201210

GREGE,TRIM4#

main62470-02110-B0iNDE150,ZRE151..3D200702-201210

LT.GRAY,TRIM1#

main62470-02110-E0iADE15#..LHD..3D..SOL200702-200903

GREGE,TRIM0#,4#

main62470-02110-E0iNDE150..3D..(6F,6FS)..SOL;ADE15#,NRE150,ZRE15#..3D..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200702-201210

GREGE,TRIM4#

62471JCLIP (FOR ROOF SIDE GARNISH)

main62217-12050iZWE150201006

main90467-W0005iNDE150,ZRE151200702-201001

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-02060-B0iZWE150201006-201211

LT.GRAY,TRIM1#

main62480-02090-B0iADE150..LHD..5D;NDE150..5D..(E,SOL);NDE150..5D..6F..TERRA;ADE157,NRE150,ZRE15#..5D200702-201305

LT.GRAY,TRIM1#

main62480-02090-E0iZRE151..5D..SOL;NDE150..RHD..5D..5FS200702-201210

GREGE,TRIM4#

main62480-02090-E0iZRE151..5D..SOL;NDE150..RHD..5D..5FS200702-200903

GREGE,TRIM0#,4#

main62480-02110-B0iZZE150..3D200702-201210

LT.GRAY,TRIM1#

main62480-02110-E0iADE15#..LHD..3D..SOL200702-201210

GREGE,TRIM4#

main62480-02110-E0iADE15#..LHD..3D..SOL200702-200903

GREGE,TRIM0#,4#

62510HCLIP(FOR QUARTER TRIM FRONT PANEL)

main90467-W0005iNDE150,ZRE151..3D200702-201001

62510KCLIP(FOR QUARTER TRIM FRONT PANEL)

main90467-W0007iZZE150..3D200702-201001

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-02120-B0iADE150..3D..TERRA200702-201210

DK.GRAY,TRIM1#

main62510-02130-B0iNDE150,ZRE151..3D..SOL200702-201001

DK.GRAY,TRIM1#

main62510-02130-E1iNDE150,ZRE151..3D..SOL200702-201001

GREGE,TRIM4#

main62510-02140-B0iADE157..3D200702-201001

DK.GRAY,TRIM1#

main62510-02170-B0iADE150,NDE150,NRE150,ZRE15#..3D..SOL201001-201210

DK.GRAY,TRIM1#

main62510-02170-E0iADE150,NDE150,NRE150,ZRE15#..3D..SOL201001-201210

GREGE,TRIM4#

main62510-02180-B0iNDE150,ZRE15#..3D..SOL..(DCRL,HTWVM)201001-201105

SEAT COVER MATERIAL-FABRIC(TATAMI,SPORT),DK.GRAY,TRIM1#

main62510-02180-B0iADE157..3D201001-201105

DK.GRAY,TRIM1#

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

main62520-02120-B0iNDE150,ZRE151..3D..TERRA200702-201210

DK.GRAY,TRIM1#

main62520-02130-B0iNDE150,ZRE151..3D..SOL200702-201001

DK.GRAY,TRIM1#

main62520-02130-E1iNDE150..3D..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..3D..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200702-201001

GREGE,TRIM4#

main62520-02140-B0iADE157..3D200702-201001

DK.GRAY,TRIM1#

main62520-02180-B0iADE157..3D201001-201210

DK.GRAY,TRIM1#

main62520-02180-E0iADE150,NDE150,NRE150,ZRE15#..3D..SOL201001-201210

GREGE,TRIM4#

main62520-02190-B0iADE157..3D201001-201105

SEAT COVER MATERIAL-FABRIC(TATAMI,SPORT),DK.GRAY,TRIM1#

main62520-02190-B0iNDE150,ZRE15#..3D..SOL..(DCRL,HTWVM)201001-201105

DK.GRAY,TRIM1#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-02150-B1iZWE150;ZRE151..5D..TERRA;ADE150,NDE150,NRE150..5D..6F..TERRA200702-201305

DK.GRAY,TRIM1#

main67913-02150-B1iZZE150..5D..SOL200702-201210

DK.GRAY,TRIM1#,4#

main67913-02160-B1iNDE150..3D..(6F,6FS)..SOL;ADE15#,NRE150,ZRE15#..3D..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200702-201210

DK.GRAY,TRIM1#,4#

main67913-02160-B1iNDE150..3D..(6F,6FS)..TERRA;ADE150,NRE150,ZRE15#..3D..(6F,6FS)..TERRA..(DCRL,HTWC,HTWVM)200702-201210

DK.GRAY,TRIM1#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-02150-B1iZZE150..5D..SOL200702-201210

DK.GRAY,TRIM1#,4#

main67914-02150-B1iZZE150..5D..SOL200702-201305

DK.GRAY,TRIM1#

main67914-02160-B1iADE150..3D..TERRA200702-201210

DK.GRAY,TRIM1#,4#

main67914-02160-B1iADE150..3D..TERRA200702-201210

DK.GRAY,TRIM1#

7104

90167W0006

main90167-W0006

90167W0007

main90167-W0007

9018905096

main90189-05096

9356855018

main93568-55018

31 parts on this diagram · 2 diagrams in section
