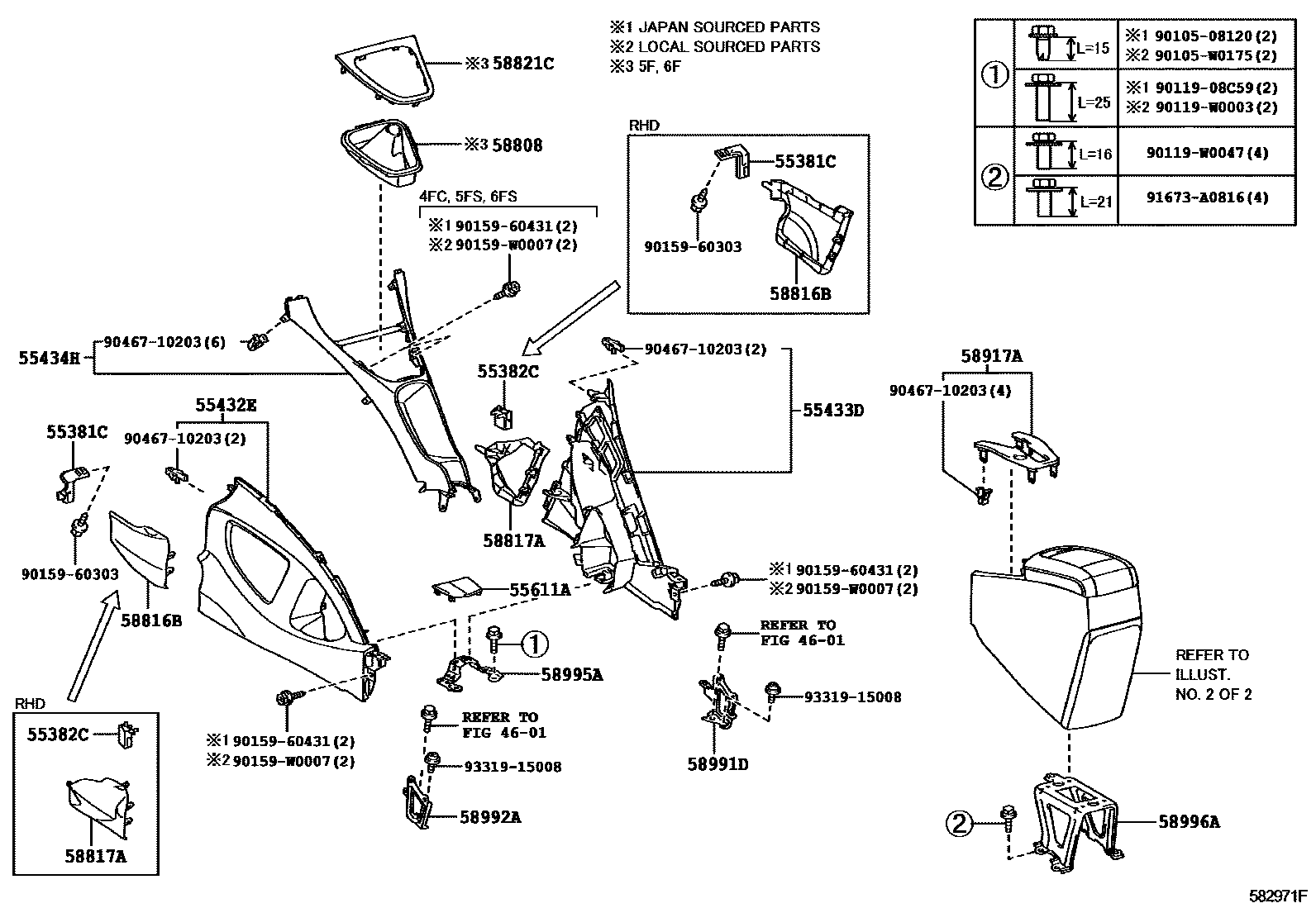

CONSOLE BOX & BRACKET

0001 1 0004 1 0007 1

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

55381CBRACKET, FINISH PANEL MOUNTING, NO.1

main55381-02050iZZE150..LHD200702-201001

main55381-02070iADE157,NDE150,NRE150,ZRE15#..RHD..5D..(6F,6FS)200702-201001

55382CBRACKET, FINISH PANEL MOUNTING, NO.2

main55382-02030iZZE150..LHD200702-201001

main55382-02050iZZE150..RHD200702-201001

55432EPANEL, INSTRUMENT PANEL FINISH, LOWER NO.1

main55432-02070-B0iADE15#..SOL200702-201001

DK.GRAY,TRIM1#,4#,*153

main55432-02070-B0iZZE150..SOL200702-201001

DK.GRAY,TRIM1#,*153

main55432-02080-B0iADE15#,ZRE152..LHD..SOL;NDE150,NRE150,ZRE151..E,SOL200912-201210

DK.GRAY,TRIM1#,4#

main55432-02080-B0iZWE150;NDE150..6F..TERRA;ADE150,NRE150,ZRE151..TERRA200912-201305

DK.GRAY,TRIM1#

main55432-02100-B0iNDE150..(6F,6FS)..(E,SOL);ADE15#,NRE150,ZRE15#..(4FC,6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200702-201001

DK.GRAY,TRIM1#,*154

main55432-02100-B0iNDE150..(6F,6FS)..(E,SOL);ADE15#,NRE150,ZRE15#..(4FC,6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200702-201001

DK.GRAY,TRIM1#,4#,*154

55433DPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55433-02070-B0iNDE150,ZRE151..SOL200702-201001

DK.GRAY,TRIM1#,*153

main55433-02070-B0iZZE150..SOL200702-201001

DK.GRAY,TRIM1#,4#,*153

main55433-02080-B0iADE15#,ZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(E,SOL)200912-201210

DK.GRAY,TRIM1#,4#,*153

main55433-02080-B0iADE15#,ZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(E,SOL)200912-201210

DK.GRAY,TRIM1#,4#

main55433-02080-B0iADE150,NDE150,NRE150,ZRE151..6F..TERRA200912-201305

DK.GRAY,TRIM1#,*153

main55433-02080-B0iNDE150,ZRE151..(4FC,6FS)..SOL200912-201210

DK.GRAY,TRIM1#

main55433-02100-B0iZZE150..SOL200702-201001

DK.GRAY,TRIM1#,*154

main55433-02100-B0iADE15#..SOL200702-201001

DK.GRAY,TRIM1#,4#,*154

55434HPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-02080-B0iNDE150,ZRE151..SOL200702-201001

DK.GRAY,TRIM1#,4#,*153

main55434-02080-B0iZZE150..SOL200702-201001

DK.GRAY,TRIM1#,*153

main55434-02090-B0iZWE150;NDE150..6F..TERRA;ADE150,NRE150,ZRE151..TERRA200912-201305

DK.GRAY,TRIM1#

main55434-02090-B0iADE15#,ZRE152..LHD..SOL;NDE150,NRE150,ZRE151..E,SOL200912-201210

DK.GRAY,TRIM1#,4#

main55434-02110-B0iNDE150..(6F,6FS)..TERRA;ADE150,NRE150,ZRE15#..(4FC,6F,6FS)..TERRA..(DCRL,HTWC,HTWVM)200702-201001

DK.GRAY,TRIM1#,*154

main55434-02110-B0iZZE150..SOL200702-201001

DK.GRAY,TRIM1#,4#,*154

55611ATRAY, INSTRUMENT PANEL UNDER

main55611-02010-B0iADE150..TERRA200702-201305

DK.GRAY,TRIM1#,*153

main55611-02010-B0iADE15#..SOL200702-201210

DK.GRAY,TRIM1#,4#,*153

main55611-02010-B0iZWE150201006-201210

DK.GRAY,TRIM1#

main55611-02020-B0iNDE150..6F..TERRA;ADE150,NRE150,ZRE151..TERRA200702-201305

DK.GRAY,TRIM1#,*154

main55611-02020-B0iZZE150..SOL200702-201210

DK.GRAY,TRIM1#,4#,*154

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-02130-B0iNDE150,ZRE151..5F..SOL200702-201001

DK.GRAY,TRIM1#

main58808-02130-B0iZZE150..TERRA200702-201001

DK.GRAY,TRIM1#,4#

main58808-02140-B0iADE157200702-201001

DK.GRAY,TRIM1#,4#

main58808-02240-B0iADE150,NDE150,NRE150,ZRE151..6F..TERRA200912-201305

DK.GRAY,TRIM1#

main58808-02240-B0iADE15#,ZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(E,SOL)200912-201210

DK.GRAY,TRIM1#,4#

58816BINSERT, CONSOLE BOX

main58816-02010-B0iZZE150..LHD..TERRA200702-201305

DK.GRAY,TRIM1#

main58816-02010-B0iZZE150..LHD..SOL200702-201210

DK.GRAY,TRIM1#,4#

main58816-02030-B0iNDE150,NRE150..RHD..6F..TERRA200702-201210

DK.GRAY,TRIM1#

main58816-02030-B0iNDE150,NRE150..RHD..6F..TERRA200702-201210

DK.GRAY,TRIM1#,4#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-02010-B0iADE15#..LHD..SOL200702-201305

DK.GRAY,TRIM1#

main58817-02010-B0iADE150..TERRA200702-201210

DK.GRAY,TRIM1#,4#

main58817-02030-B0iZZE150..RHD..SOL200702-201210

DK.GRAY,TRIM1#,4#

main58817-02030-B0iZZE150..RHD..TERRA200702-201210

DK.GRAY,TRIM1#

58821CPANEL, CONSOLE, UPPER

main58821-02270iADE150,NDE150,NRE150,ZRE151..6F..(E,TERRA)200912

main58821-02280iNDE150..E200912

MID&AIR CONDITIONER-AUTO(SINGLE)

main58821-02280iNDE150..E200912

LUXURY&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main58821-02280iNDE150..E200912

MID&AIR CONDITIONER-MANUAL

main58821-02290iADE150..TERRA200702-201001

main58821-02300iZZE150..SOL200702-201001

main58821-02410iZWE150201006

58917ACOVER, CONSOLE BOX, REAR

main58917-02140-B0iNDE150,ZRE151..TERRA200702-201001

DK.GRAY,TRIM1#,*153

main58917-02140-B0iZZE150..SOL200702-201001

DK.GRAY,TRIM1#,4#,*153

main58917-02150-B0iNDE150,ZRE151..SOL200702-201001

DK.GRAY,TRIM1#,4#,*154

main58917-02150-B0iNDE150,ZRE151..SOL200702-201001

DK.GRAY,TRIM1#,*154

main58917-02170-B1iZWE150;ADE157..LHD;NDE150..6F..(E,TERRA);ADE150,NRE150,ZRE151..TERRA200912-201011

DK.GRAY,TRIM1#,4#

main58917-02170-B1iADE150,ZRE152..LHD..SOL;NDE150,NRE150,ZRE151..SOL200912-201011

DK.GRAY,TRIM1#

main58917-02171-B1iADE150,NDE150,NRE150,ZRE15#..SOL201012-201104

DK.GRAY,TRIM1#,4#

main58917-02171-B1iADE150,NDE150,NRE150,ZRE15#..SOL201012-201104

DK.GRAY,TRIM1#

main58917-02172-B1iADE150,NDE150,NRE150,ZRE15#..E,SOL201105-201210

DK.GRAY,TRIM1#,4#

main58917-02172-B1iADE157,ZWE150;ADE150,NDE150,NRE150,ZRE151..TERRA201105-201305

DK.GRAY,TRIM1#

58991DBRACKET, CONSOLE BOX MOUNTING, UPR RH

main58991-02010iNDE150..6F,6FS;ADE15#,NRE150,ZRE15#..(4FC,6F,6FS)..(DCRL,HTWC,HTWVM)200702-201305

58992ABRACKET, CONSOLE BOX MOUNTING, UPR LH

main58992-02010iNDE150..6F,6FS;ADE15#,NRE150,ZRE15#..(4FC,6F,6FS)..(DCRL,HTWC,HTWVM)200702-201305

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-02010iNDE150,ZRE151200702-201001

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-02040iNDE150,ZRE151200702-201001

main58996-02120iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912

9010508120

main90105-08120

90105W0175

main90105-W0175

9011908C59

main90119-08C59

90119W0003

main90119-W0003

90119W0047

main90119-W0047

9015960303

main90159-60303

9015960431

main90159-60431

90159W0007

main90159-W0007

9046710203

main90467-10203

91673A0816

main91673-A0816

9331915008

main93319-15008

27 parts on this diagram · 3 diagrams in section
