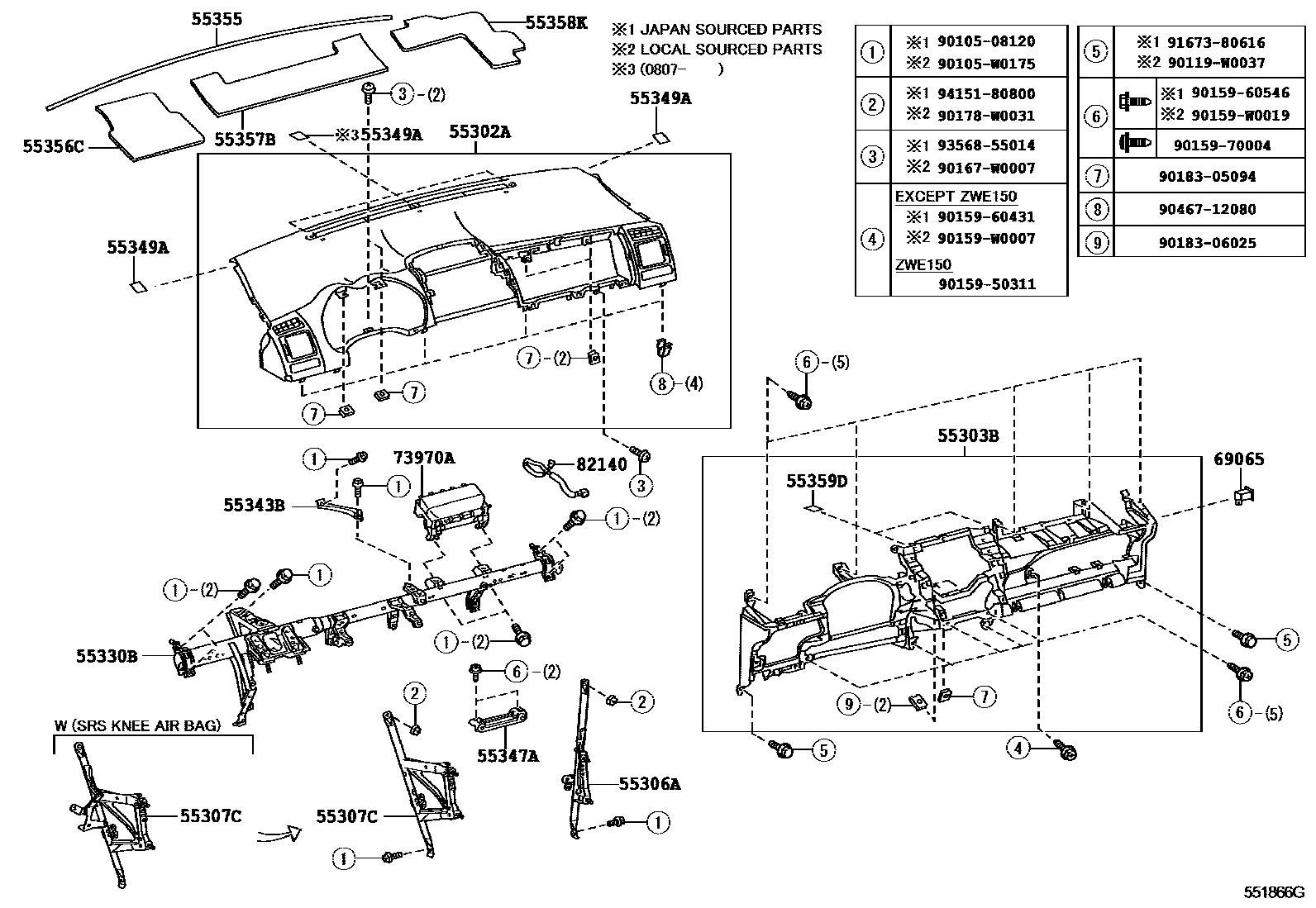

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-02070-B1iNDE150..LHD..6F..TERRA;ADE15#,NRE150,ZRE151..LHD;NDE150,ZRE152..LHD..(E,SOL)200912-201305

DK.GRAY,TRIM1#,*153

main55302-02070-E1iZZE150..LHD..SOL200702-200811

GREGE,TRIM4#,*153

main55302-02140-B1iNDE150,ZRE151..RHD200702-200902

DK.GRAY,TRIM1#

main55302-02140-E1iNDE150,ZRE151..RHD..SOL200702-200902

GREGE,TRIM4#

main55302-02170-B1iNDE150..LHD..6F..TERRA;ADE15#,NRE150,ZRE151..LHD;NDE150,ZRE152..LHD..(E,SOL)200912-201305

DK.GRAY,TRIM1#,*154

main55302-02170-E1iADE15#..LHD..SOL200702-200903

GREGE,TRIM4#,*154

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-02190-B0iADE15#,NDE150,NRE150,ZRE15#..LHD..(E,SOL)200912-201210

DK.GRAY,TRIM1#,4#,*153

main55303-02200-B0iNDE150..RHD..5D..5F..SOL; NDE150..RHD..TERRA; ZRE151..RHD;NDE150..RHD..5FS;NDE150..RHD..3D..5F..SOL200702-200902

DK.GRAY,TRIM0#,1#,4#; DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

main55303-02210-B0iZWE150..LHD;NDE150..LHD..6F..TERRA;ADE150,NRE150,ZRE151..LHD..TERRA200912-201305

DK.GRAY,TRIM1#,*154

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-02231iZWE150..RHD201006

main55307-02080iADE15#,NDE150,ZRE151,ZZE150200702-200707

main55307-02081iNDE150,ZRE151200707-200902

main55306-02230iADE15#,NDE150,ZRE151,ZZE150..RHD200702-200707

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55306-02211iZWE150..LHD201006

main55307-02090iADE15#,NDE150,ZRE151,ZZE150200702-200707

main55307-02091iADE15#200707-200903

main55306-02210iADE15#,NDE150,ZRE151,ZZE150..LHD200702-200707

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-02360iNDE150..LHD..6F..TERRA;NDE150,ZRE152..LHD..(E,SOL);ADE15#,NRE150,ZRE151,ZWE150..LHD200912

main55330-02370iADE150..RHD..DCRL;ADE157,NDE150,NRE150,ZRE15#..RHD..3D..(6F,6FS)200811-201001

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-02060iNDE150,ZRE151200702-200902

55347ABRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1

main55349-02100iADE15#,NDE150,ZRE151,ZZE150200702-200707

main55349-02101iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200811-200912

main55349-02170iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912

55349ACUSHION, INSTRUMENT PANEL

main55359-12110×5iZZE150200807-200811

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-02090iNDE150,ZRE151..LHD200702-200902

main55355-02120iADE15#..RHD200702-200903

main55355-02200iZWE150..LHD201006

main55355-02210iZWE150..RHD201006

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-02070iZZE150200702-200811

main55356-02080iZWE150201006

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-02050iZZE150200702-200811

main55357-02080iZWE150201006

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-02030iADE15#200702-200903

main55358-02040iZWE150201006

55359DCUSHION, INSTRUMENT PANEL, NO.5

main55359-12090×2iZZE150200702-200811

69065CYLINDER SUB-ASSY, AIRBAG CUT OFF SW

main69065-12400iADE15#200702-200903

main69065-12450iADE15#,NDE150,NRE150,ZRE15#201002

main69065-47040iZWE150201006

main69065-53010iADE150..RHD..DCRL;ZRE151..SOL..HTWC;ADE157,ZRE15#..3D..SOL;ADE150..LHD..3D..SOL..DCRL200902-201001

STARTING SYSTEM-PUSH BUTTON

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-02060iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200811-200912

82140WIRE ASSY, INSTRUMENT PANEL

main82140-02110iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200811-200912

9010508120

main90105-08120

90105W0175

main90105-W0175

90119W0037

main90119-W0037

9015950311

main90159-50311

9015960431

main90159-60431

9015960546

main90159-60546

9015970004

main90159-70004

90159W0007

main90159-W0007

90159W0019

main90159-W0019

90167W0007

main90167-W0007

90178W0031

main90178-W0031

9018305094

main90183-05094

9018306025

main90183-06025

9046712080

main90467-12080

9167380616

main91673-80616

9356855014

main93568-55014

9415180800

main94151-80800

33 parts on this diagram · 8 diagrams in section
