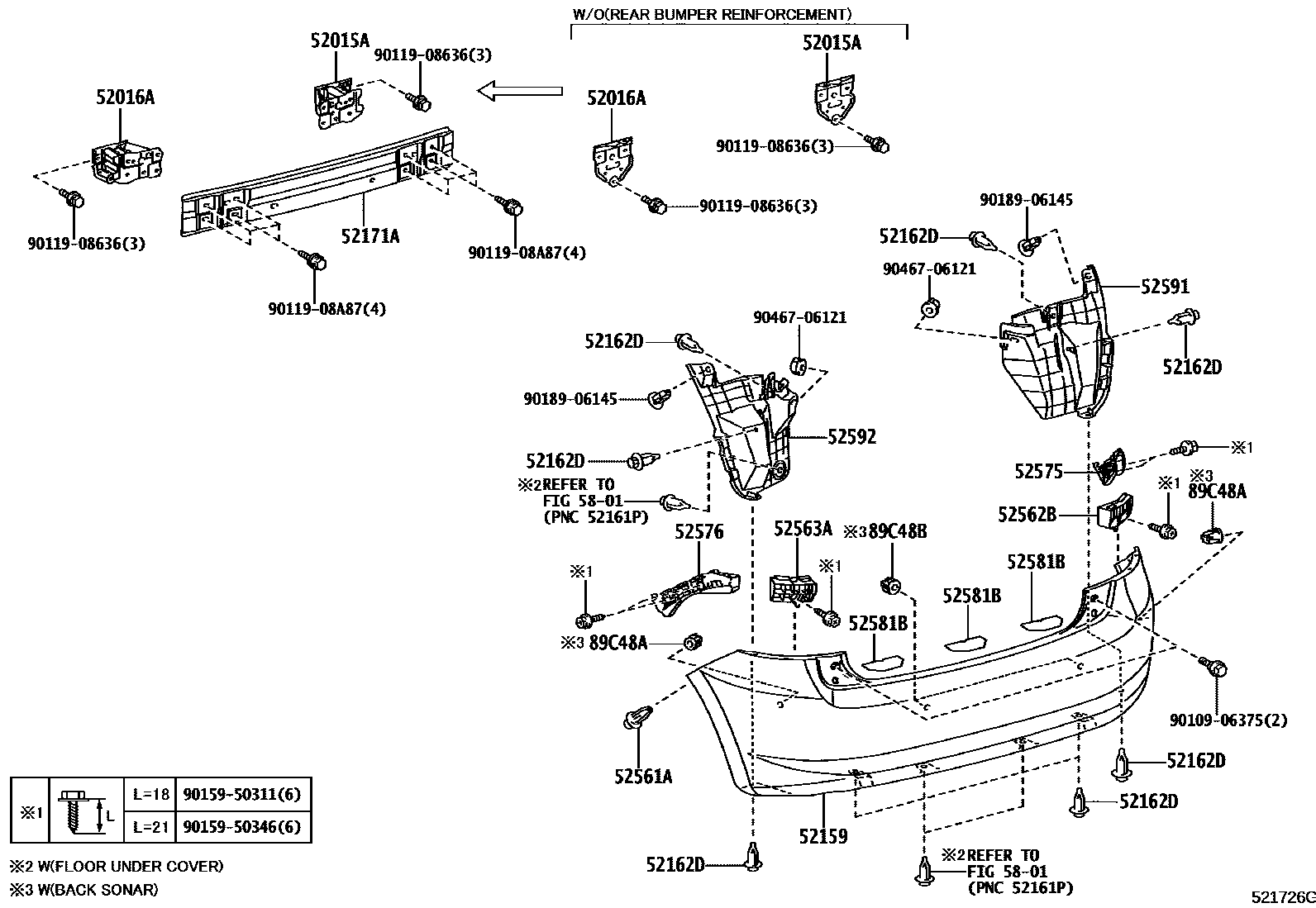

REAR BUMPER & BUMPER STAY

0001 1 0004 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-02050iZZE150200702-201305

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-02040iZZE150200702-201305

52159COVER, REAR BUMPER

main52159-02952iNDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC200702-201001

PAINT REQ.

main52159-02974iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912

PAINT REQ.

52162DPIECE, REAR BUMPER

main52161-02030iZZE150200702-201001

(L)

main52161-16010iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200702-201001

(J)

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52023-02140iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)200702-201103

main52171-02080iADE15#,NDE150,NRE150,ZRE15#,ZWE150201104

52561ACLIP(FOR REAR BUMPER RETAINER)

main90467-05090-B1iADE15#200702-201305

DK.GRAY

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-02040iZZE150200702-201001

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-02030iZZE150200702-201001

52575RETAINER, REAR BUMPER SIDE, RH

main52575-02070iZZE150200702-201001

52576RETAINER, REAR BUMPER SIDE, LH

main52576-02070iZZE150200702-201001

52581BPROTECTOR, REAR BUMPER

main52581-02020iZZE150200702-201001

52591SEAL, REAR BUMPER SIDE, RH

main52591-02140iZZE150200702-201001

main52591-02210iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912

52592SEAL, REAR BUMPER SIDE, LH

main52592-02130iZZE150200702-201001

main52592-02210iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

9010906375

main90109-06375

9011908636

main90119-08636

9011908A87

main90119-08A87

9015950311

main90159-50311

9015950346

main90159-50346

9018906145

main90189-06145

9046706121

main90467-06121

23 parts on this diagram · 2 diagrams in section
