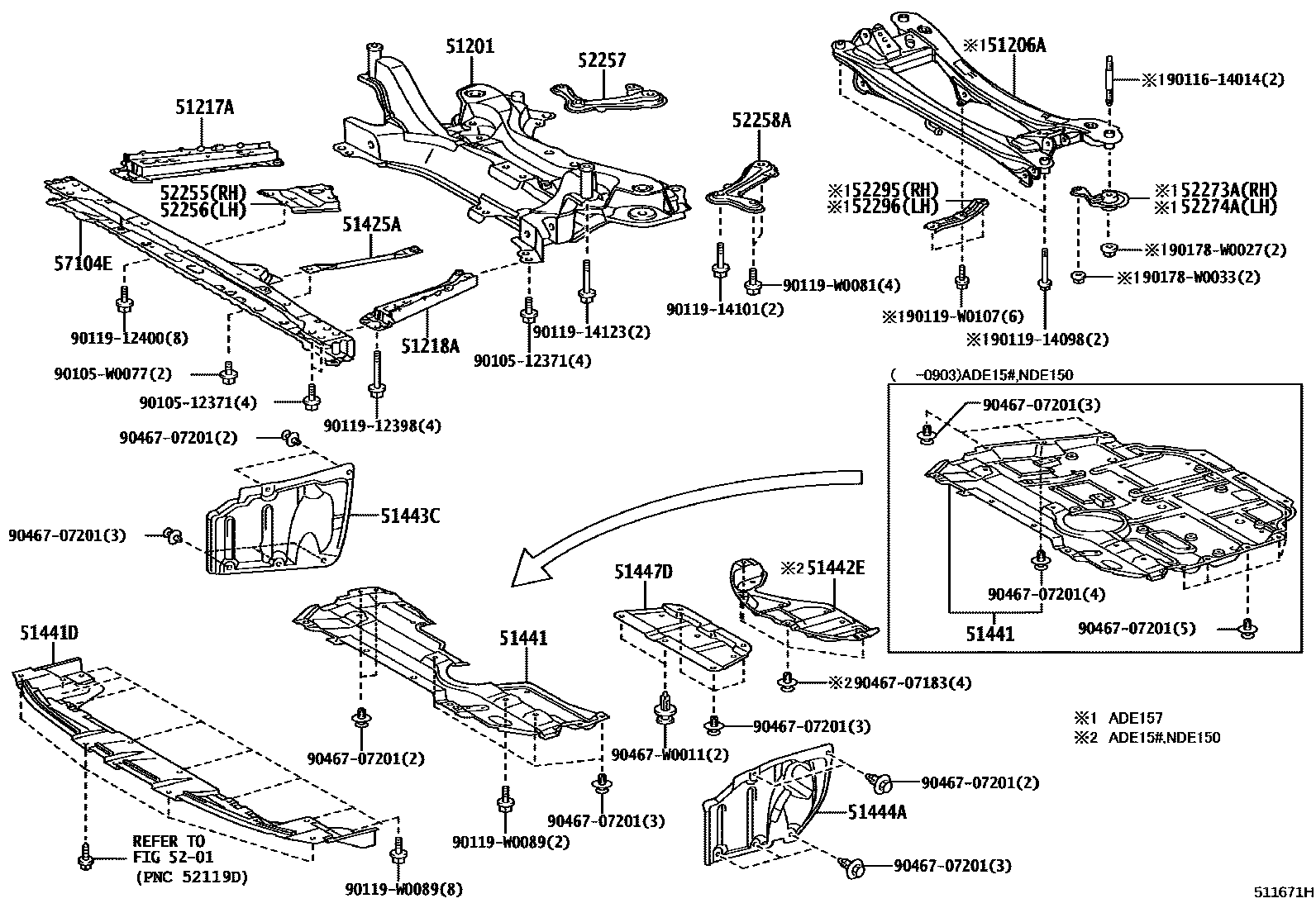

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0005 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-02101iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200702-201001

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-05080iADE157..3D200902-201101

*153

main51206-05100iADE157201101

*153

main51206-12110iADE157200702-200901

main51206-12111iADE157..LHD200902-201101

*154

main51206-12160iADE157201101

*154

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-02010iZZE150200702-201001

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-02010iZZE150200702-201001

51425AREINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER

main51425-02010iNDE150,ZRE151200702-201001

51441COVER, ENGINE UNDER, NO.1

main51410-02120iADE15#200702-200903

main51410-02170iNDE150..E;ZRE15#..5D..HTWVM200902-201007

main51410-02180iADE157..3D;ADE150..RHD;ADE150..LHD..3D200903-201001

main51441-02151iNDE150200702-200902

main51441-02220iZZE150200702-201001

51441DCOVER, ENGINE UNDER

main52618-02010iNDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC200702-201001

51442ECOVER, ENGINE UNDER, NO.2

main51442-02230iNDE150200702-201007

51443CCOVER, ENGINE UNDER, REAR RH

main51443-02050iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200702-201001

51444ACOVER, ENGINE UNDER, REAR LH

main51444-02040iADE15#,NDE150,ZRE151,ZZE150200702-200710

main51444-02041iZZE150200711-201001

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-02010iZZE150200702-201001

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-02010iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200702-201001

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-02010iNDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC200702-201001

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-02030iADE15#,NDE150,ZRE151,ZZE150200702-200806

main52257-02031iZZE150200807-201001

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-02030iADE15#,NDE150,ZRE151,ZZE150200702-200806

main52258-02031iNDE150,ZRE151200807-201001

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-02010iADE157200702-201001

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52203-02010iADE157200702-201001

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-05030iADE157..LHD200903-201001

main52295-05030iADE157200811-200903

*153

main52295-12050iADE157200702-200811

main52295-12050iADE157200811-200903

*154

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-05030iADE157200811-200903

*153

main52295-05030iADE157..LHD200903-201001

main52295-12050iADE157200811-200903

*154

main52295-12050iADE157200702-200811

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-02160iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)200702-201001

9010512371

main90105-12371

90105W0077

main90105-W0077

9011614014

main90116-14014

9011912398

main90119-12398

9011912400

main90119-12400

9011914098

main90119-14098

9011914101

main90119-14101

9011914123

main90119-14123

90119W0081

main90119-W0081

90119W0089

main90119-W0089

90119W0107

main90119-W0107

90178W0027

main90178-W0027

90178W0033

main90178-W0033

9046707183

main90467-07183

9046707201

main90467-07201

90467W0011

main90467-W0011

37 parts on this diagram · 2 diagrams in section
