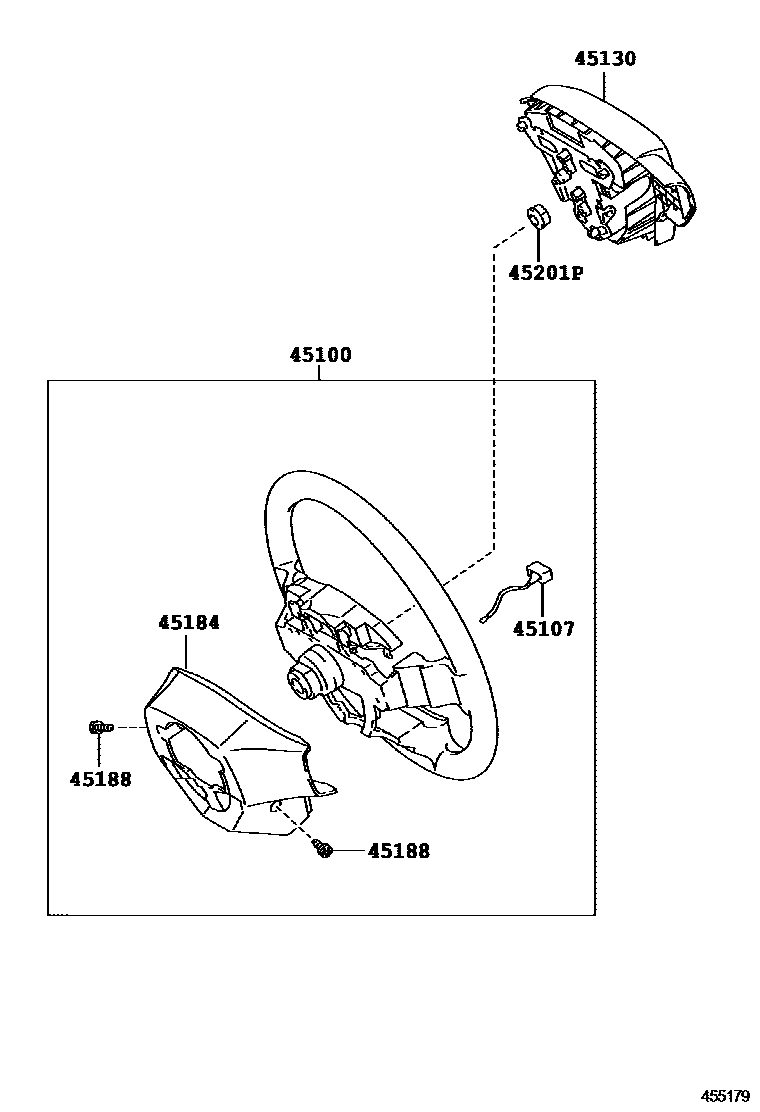

STEERING WHEEL

0001 13-SPOKE 0005 13-SPOKE 0008 13-SPOKE,W(STEERING SWITCH) 0014 13-SPOKE 0016 13-SPOKE 0018 13-SPOKE

45100WHEEL ASSY, STEERING

main45100-02520-B0iNDE150,ZRE151..5F..TERRA200702-201001

3-SPOKE,URETHANE,DK.GRAY,TRIM1#

main45100-02520-B0iNDE150..E200905-200912

3-SPOKE,URETHANE,DK.GRAY,TRIM1#,4#

main45100-02570-B0iADE150..RHD..3D200702-200903

3-SPOKE,LEATHER,DK.GRAY,TRIM0#,1#,4#

main45100-02570-B0iADE150..RHD..3D200702-200903

3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4#

main45100-02640-B0iNDE150..RHD..5FS;ZRE151..5FS..SOL200702-200902

3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4#

main45100-02640-B0iNDE150..LHD..5FS..SOL200702-200902

3-SPOKE,LEATHER,DK.GRAY,TRIM0#,1#,4#

main45100-02690-B0iNDE150,ZRE151..5FS..TERRA200702-201001

3-SPOKE,URETHANE,DK.GRAY,TRIM1#

main45100-02730-B0iADE157200702-201001

3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4#

main45100-02M50-B0iNDE150,ZRE151..6FS..SOL200902-201001

3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4#

45107WIRE SUB-ASSY, HORN BUTTON

main45107-02020iNDE150,ZRE151..5F..TERRA200702-201001

45130BUTTON ASSY, HORN

main45130-02280-B0iNDE150..(6F,6FS)..TERRA;ADE150,NRE150,ZRE15#..(4FC,6F,6FS)..TERRA..(DCRL,HTWC,HTWVM)200702-201001

DK.GRAY,TRIM1#

main45130-02280-B0iNDE150..E200905-200912

DK.GRAY,TRIM1#,4#

main45130-02290-B0iZRE151..SOL;NDE150..RHD..5FS;NDE150..RHD..3D..5F..SOL200702-200903

DK.GRAY,TRIM0#,1#,4#

main45130-02290-B0iZRE151..SOL;NDE150..RHD..5FS;NDE150..RHD..3D..5F..SOL200702-201001

DK.GRAY,TRIM1#,4#

main45130-02500-B0iADE15#,ZRE152..LHD..SOL;NDE150,NRE150,ZRE151..E,SOL200912-201004

DK.GRAY,TRIM1#,4#

sub45130-02501

main45130-02500-B0iADE15#,ZRE152..LHD..SOL;NDE150,NRE150,ZRE151..E,SOL200912-201004

DK.GRAY,TRIM1#

sub45130-02501

main45130-02501-B0iADE150,NDE150,NRE150,ZRE15#..E,SOL201005-201210

DK.GRAY,TRIM1#,4#

sub45130-02730

main45130-02501-B0iADE157,ZWE150;ADE150,NDE150,NRE150,ZRE151..TERRA201005-201305

DK.GRAY,TRIM1#

sub45130-02730

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-02130-B0iZZE150..RHD..3D..SOL200702-200903

DK.GRAY,TRIM0#,1#,4#

main45184-02130-B0iZZE150..TERRA200702-201001

DK.GRAY,TRIM1#

main45184-02130-B0iZZE150..TERRA200702-201001

DK.GRAY,TRIM1#,4#

main45184-02140-B0iNDE150,ZRE151..5FS..TERRA200702-201001

DK.GRAY,TRIM1#,4#

main45184-02140-B0iNDE150,ZRE151..5FS..TERRA200702-201001

DK.GRAY,TRIM1#

main45184-02140-B0iNDE150,ZRE151..5FS..TERRA200702-200902

DK.GRAY,TRIM0#,1#,4#

main45184-02180-B0iADE15#,ZRE152..LHD..SOL;NDE150,NRE150,ZRE151..(4FC,6F)..SOL200912-201210

DK.GRAY,TRIM1#,4#

main45184-02180-B0iADE15#,ZRE152..LHD..SOL;NDE150,NRE150,ZRE151..(4FC,6F)..SOL200912-201210

RADIOLESS 6SPEAKER,DK.GRAY,TRIM1#,4#

main45184-02180-B0iADE150,NDE150,NRE150,ZRE151..(4FC,6F)..(E,TERRA)200912-201305

DK.GRAY,TRIM1#

main45184-02190-B0iZWE150201006-201211

DK.GRAY,TRIM1#

main45184-02270-B0iZRE151..6FS..TERRA200912-201210

DK.GRAY,TRIM1#,4#

main45184-02270-B0iZRE151..6FS..TERRA200912-201210

DK.GRAY,TRIM1#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010iZZE150200702-201001

L=18

45201PNUT, STEERING WHEEL SET

main90178-W0030iZZE150200702-200903

sub90179-12071

main90179-12071iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200811-201001

6 parts on this diagram · 6 diagrams in section
