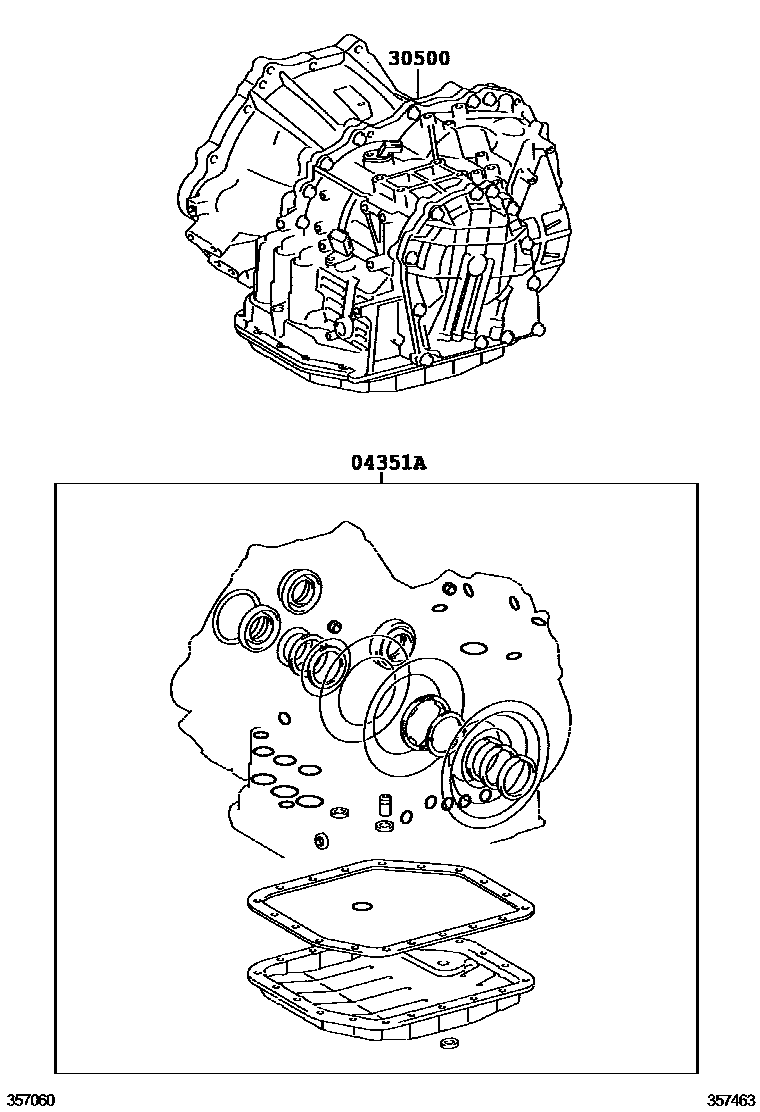

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-52510iZRE151..HTWC200909-201001

main04351-52511supersedes 04351-52592iZRE151..HTWC201009-201201

EXHAUST EMISSION CONTROL-ECE STEP4; EXHAUST EMISSION CONTROL-ECE STEP4,WITHOUT(OBD)

main04351-52512supersedes 04351-52592iZRE151..HTWC201201-201210

EXHAUST EMISSION CONTROL-ECE STEP4; EXHAUST EMISSION CONTROL-ECE STEP4,WITHOUT(OBD)

30500TRANSAXLE ASSY, AUTOMATIC

main30500-12D30iZRE151..HTWC200909-201001

U340E

2 parts on this diagram · 1 diagram in section
