GEAR SHIFT FORK & LEVER SHAFT (MTM)

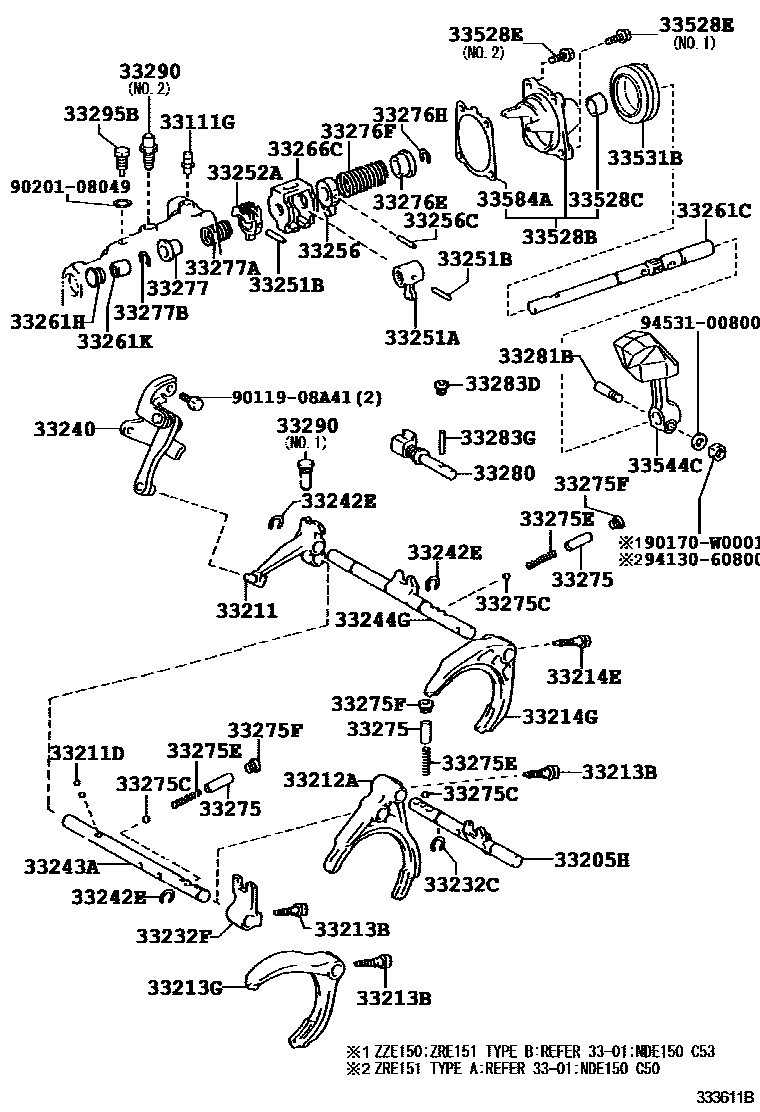

Parts diagram
33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)
main90930-03085i200702-201001
main90930-03133i200702-200902
C53
main90930-03133i200702-200811
main90930-03133i200809-200902
C50
33205HSHAFT SUB-ASSY, GEAR SHIFT FORK, NO.1
main33205-02020i200801-200902
C53
sub33205-52010
main33205-02020i200801-200902
TYPE B:REFER 33-01
sub33205-52010
main33205-02020i200801-200811
sub33205-52010
main33205-05010i200702-200801
(L)
sub33205-02020
main33205-05010i200702-200801
TYPE B:SEE 33-01,(L)
sub33205-02020
main33205-52010i200809-200902
C50
main33205-52010i200702-200801
TYPE B:SEE 33-01,(J)
main33205-52010i200702-200801
(J)
main33205-52010i200712-200902
TYPE A:REFER 33-01
33211FORK, REVERSE SHIFT
main33211-05010i200702-200801
(L)
sub33211-12021
main33211-05020i200811-201305
*202
main33211-12021i200702-200902
(J)
main33211-12021i200809-200902
C50
main33211-12021i200801-200902
C53
main33211-12021i200801-200811
main33211-20030i200702-201210
main33211-20040i200811-201305
*206
main33211-20040i200811-201305
*201
33211DBALL(FOR REVERSE SHIFT FORK)
main90360-06004i200702-200902
OD=6.35,TYPE B:REFER 33-01
main90360-06004i200702-200902
OD=6.35
main90360-06004i200702-200902
OD=6.35,C53
main90360-06004i200712-200902
OD=6.35,TYPE A:REFER 33-01
main90360-06004i200809-200902
OD=6.35,C50
33212AFORK, GEAR SHIFT, NO.1
main33210-20010i200702-201001
main33212-05010i200702-200902
C53,(L)
sub33212-10013
main33212-05010i200702-200902
(L)
sub33212-10013
main33212-10013i200702-200902
(J)
main33212-10013i200702-200902
C53,(J)
main33212-10013i200809-200902
C50
33213BBOLT(FOR SHIFT FORK SET)
main90105-06077i200702-201001
main90105-06115i200702-200902
C53
main90105-06115i200809-200902
C50
main90105-06115i200702-200811
33213GFORK, GEAR SHIFT, NO.2
main33213-05010i200702-200902
(L)
sub33213-20050
main33213-05010i200702-200902
C53,(L)
sub33213-20050
main33213-20050i200702-200902
C53,(J)
main33213-20050i200702-200902
(J)
main33213-20050i200809-200902
C50
main33220-20010i200702-201001
33214EBOLT(FOR GEAR SHIFT FORK LOCK)
main90105-06115i200702-200902
C53
main90105-06115i200809-200902
C50
main90105-06115i200702-200811
33214GFORK, GEAR SHIFT, NO.3
main33214-05010i200702-200902
C53,(L)
sub33214-20050
main33214-05010i200702-200902
(L)
sub33214-20050
main33214-20050i200702-200902
C53,(J)
main33214-20050i200809-200902
C50
main33214-20050i200702-200902
(J)
main33230-20020i200702-201001
33232CRING, SNAP (FOR 1ST & 2ND SHIFT HEAD)
main90520-12003i200702-200811
main90520-12003i200702-200902
C53
main90520-12003i200809-200902
C50
33232FHEAD, GEAR SHIFT, NO.1
main33232-20030i200702-200811
main33232-20030i200702-200902
C53
main33232-20030i200809-200902
C50
main33232-20040i200811-201106
*206
sub33232-20070
main33232-20040i200811-201001
*202
sub33232-20070
main33232-20040i200811-201001
*201
sub33232-20070
main33232-20040i200912-201106
*201,*202
sub33232-20070
main33232-20070i201106-201305
*206
main33232-20070i201106-201305
*201,*202
33240BRACKET ASSY, REVERSE SHIFT ARM
main33240-0D020i201204-201305
*202
main33240-16020i200702-200811
main33240-16020i200702-200902
C53
main33240-16020i200809-200902
C50
main33240-20040i200902-200909
sub33240-20041
main33240-20040i200811-200909
*201
sub33240-20041
main33240-20040i200811-200909
*206
sub33240-20041
main33240-20040i200811-200909
*202
sub33240-20041
main33240-20041i200909-201305
*201
sub33240-20042
main33240-20041i200909-201305
*206
sub33240-20042
main33240-20041i200909-201204
*202
sub33240-20042
main33240-20041i200912-201210
sub33240-20042
33242SHAFT, GEAR SHIFT FORK, NO.1
main33242-52040i200702-200902
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
main90520-12003i200811-201305
*201
main90520-12003i200702-201004
main90520-12003i200702-200902
C53
main90520-12003i200809-200902
C50
main90520-12003i200811-201305
*202
main90520-12003i200811-201305
*206
33243ASHAFT, GEAR SHIFT FORK, NO.2
main33243-05010i200702-200902
(L)
sub33243-20070
main33243-05010i200702-200902
C53,(L)
sub33243-20070
main33243-20070i200702-200902
C53,(J)
main33243-20070i200702-200902
(J)
main33243-20070i200809-200902
C50
33244GSHAFT, GEAR SHIFT FORK, NO.3
main33244-02020i200801-200902
TYPE B:REFER 33-01
sub33244-52030
main33244-02020i200801-200811
sub33244-52030
main33244-02020i200801-200902
C53
sub33244-52030
main33244-05010i200702-200801
(L)
sub33244-02020
main33244-05010i200702-200801
TYPE B:SEE 33-01,(L)
sub33244-02020
main33244-52030i200712-200902
TYPE A:REFER 33-01
main33244-52030i200702-200801
TYPE B:SEE 33-01,(J)
main33244-52030i200702-200801
(J)
main33244-52030i200702-200902
main33244-52030i200809-200902
C50
33251ALEVER, SHIFT, INNER NO.1
main33251-0D010i201105-201305
*202
main33251-12090i200702-200902
C53
main33251-12090i200809-200902
C50
main33251-20110i200702-201210
main33251-20120i200811-201305
*206
main33251-20120i200811-201305
*201
main33251-20120i200811-201105
*202
main33251-52050i200902-201210
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
main90254-05001i200902-201210
L=22
main90254-05001i200912-201305
L=22,*202
main90254-05001i200811-201001
L=22,*201,*202,*206
main90254-05011i200912-201305
L=28.0,*201,*202
main90254-05011i200912-201305
L=28.0,*206
main90254-05011i200905-201001
L=28.0
main90254-05011i200811-201001
L=28.0,*202,*206
main90254-05011i200811-201001
L=28.0,*201
main90254-05016i200702-200902
L=25.5
main90254-05016i200702-200902
L=25.5,C53
main90254-05016i200809-200902
L=25.5,C50
33252ALEVER, SHIFT, INNER NO.2
main33252-0D020i201105-201305
*202
main33252-12040i200702-200902
C53
sub33252-12041
main33252-12040i200702-200811
sub33252-12041
main33252-12040i200809-200902
C50
sub33252-12041
main33252-20060i200811-201105
*202
main33252-20060i200811-201305
*201
main33252-20060i200811-201305
*206
main33252-52030i200902-201210
33256LEVER, SELECT INNER
main33256-0D030i201105-201305
*202
main33256-12022i200702-200902
C53
main33256-12022i200702-200811
main33256-12022i200809-200902
C50
main33256-20030i200811-201305
*206
main33256-20030i200811-201105
*202
main33256-20030i200811-201305
*201
main33256-52020i200902-201210
33256CPIN, SLOTTED SPRING (FOR SELECT INNER LEVER)
main90254-05001i200902-201210
main90254-05016i200702-200902
C53
main90254-05016i200809-200902
C50
main90254-05016i200702-200811
33261CSHAFT, SHIFT & SELECT LEVER
main33261-05010i200811-201305
*202
main33261-12190i200702-201210
main33261-20120i200811-201305
*206
main33261-20120i200811-201305
*201
main33261-52110i200809-200902
C50
sub33261-52111
main33261-52110i200702-200902
C53
sub33261-52111
main33261-52110i200702-200811
sub33261-52111
main33261-52130i200902-201210
33261HSEAL, OIL (FOR SHIFT & SELECT LEVER SHAFT)
main90310-15004i200809-200902
C50
main90310-15004i200702-200811
main90310-15004i200702-200902
C53
33261KBEARING, NEEDLE ROLLER (FOR SHIFT & SELECT LEVER SHAFT)
main90369-15001i200702-200902
TYPE B:REFER 33-01
main90369-15001i200702-200811
main90369-15001i200702-200902
C53
main90369-15001i200712-200902
TYPE A:REFER 33-01
main90369-15001i200809-200902
C50
main90369-15002i200702-201001
33266CPLATE, SHIFT INTERLOCK
main33266-20020i200702-200902
C53
main33266-20020i200702-200811
main33266-20020i200809-200902
C50
main33266-20050i200702-201210
sub33266-64010
main33266-20060i200811-201001
*202
sub33266-20061
main33266-20060i200811-201001
*201
sub33266-20061
main33266-20060i200811-201107
*206
sub33266-20061
main33266-20060i200912-201107
*201,*202
sub33266-20061
main33266-20061i201107-201305
*206
sub33266-20062
main33266-20061i201107-201305
*201,*202
sub33266-20062
main33266-52040i200902-201210
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
main33275-12041i200702-200902
OD=10.7,C53
main33275-12041i200702-201001
OD=10.7
main33275-12041i200809-200902
OD=10.7,C50
33275CBALL (FOR SHIFT DETENT)
main90080-36169i200702-200811
sub90360-10003
main90080-36169i200702-200902
TYPE B:REFER 33-01
sub90360-10003
main90080-36169i200702-200902
C53
sub90360-10003
main90360-10003i200712-200902
TYPE A:REFER 33-01
main90360-10003i200809-200902
C50
main90360-10003i200702-201210
main90360-10003i200811-201001
*202
main90360-10003i200811-201001
*201
main90360-10003i200811-201001
*206
main90360-10003i200912-201305
*201,*202
33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)
main90501-11110i200911-201001
*201,NO.2
main90501-11110i200908-201001
*202,NO.2
main90501-11110i200911-201001
NO.2
main90501-11110i200911-201001
*206,NO.2
main90501-11110i200912-201305
*202,NO.2,*201,NO.2
main90501-12173i200702-201210
main90501-12187i200702-200808
sub90501-12207
main90501-12207i200808-200811
main90501-12207i200809-200902
C50
main90501-12207i200808-200902
C53
main90501-13088i200811-201001
*201,NO.1
main90501-13088i200811-201001
*202,NO.1
main90501-13088i200811-201001
*206,NO.1
main90501-13088i200902-201001
NO.1
main90501-13088i200912-201305
*202,NO.1,*201,NO.1
main90501-13089i200811-200911
*206,NO.2
sub90501-11110
main90501-13089i200902-200911
NO.2
sub90501-11110
main90501-13089i200811-200911
*201,NO.2
sub90501-11110
main90501-13089i200811-200908
*202,NO.2
sub90501-11110
33275FPLUG (FOR SHIFT DETENT BALL)
main90341-12004i200811-201001
*202
main90341-12004i200702-201210
main90341-12004i200702-200902
C53
main90341-12004i200809-200902
C50
main90341-12004i200811-201001
*201
main90341-12004i200811-201305
*206
main90341-12004i200912-201305
*201,*202
33276ESEAT, SELECT SPRING, NO.1
main33276-12022i200702-200811
main33276-12022i200702-200902
C53
main33276-12022i200809-200902
C50
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
main90501-17040i200702-200811
main90501-17040i200702-200902
C53
main90501-17040i200809-200902
C50
33276HRING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT)
main90520-15003i200702-200811
main90520-15003i200702-200902
C53
main90520-15003i200809-200902
C50
33277SEAT, SELECT SPRING, NO.2
main33277-12011i200702-200811
main33277-12011i200702-200902
C53
main33277-12011i200809-200902
C50
33277ASPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)
main90501-16190i200702-200811
main90501-16190i200702-200902
C53
main90501-16190i200809-200902
C50
33277BRING, E (FOR SELECT SPRING NO.2 SEAT)
main90523-12003i200702-200811
main90523-12003i200702-200902
C53
main90523-12003i200809-200902
C50
33280PIN ASSY, REVERSE RESTRICT
main33280-12061i200702-200902
C53
main33280-12061i200702-200811
main33280-12061i200809-200902
C50
main33280-20050i200811-201001
*201
main33280-20050i200905-201210
main33280-20050i200912-201305
*201,*202,*206
main33280-20050i200811-201001
*202,*206
33281BPIN, LEVER LOCK (FOR SHIFT OUTER LEVER)
main33281-16020i200702-200902
C53
main33281-16020i200702-200811
main33281-16020i200809-200902
C50
33283DPLUG (FOR REVERSE RESTRICT PIN)
main90341-10065i200702-200902
C53
main90341-10065i200809-200902
C50
main90341-10065i200702-200811
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
main90254-05003i200702-200902
C53
main90254-05003i200702-200811
main90254-05003i200809-200902
C50
33290BALL ASSY, LOCK, NO.1
main33290-02010i200702-200902
C53,NO.2
main33290-02010i200702-200902
T/P B:SEE 33-01,NO.2
main33290-02010i200811-201305
*202
main33290-02010i200702-200811
NO.2
main33290-0H010i200707-200902
NO.2
main33290-12011i200702-200902
C53,NO.1
main33290-12011i200702-200902
NO.1
main33290-12011i200809-200902
C50,NO.1
main33290-20020i200702-201210
main33290-52010i200702-200707
NO.2
sub33290-0H010
main33290-52040i200811-201305
*201
main33290-52040i200712-200902
T/P A:SEE 33-01,NO.2
main33290-52040i200809-200902
C50,NO.2
main33290-52040i200811-201305
*206
33295BPIN, SHIFT GATE
main33295-20010i200702-201001
main33295-52010i200702-200902
C53
main33295-52010i200702-200811
main33295-52010i200809-200902
C50
33528BCOVER, CONTROL SHAFT
main33506-12160i200702-200902
TYPE B:REFER 33-01
main33506-12160i200702-200811
main33506-12160i200702-200902
C53
main33506-17081i200712-200902
TYPE A:REFER 33-01
main33506-17081i200809-200902
C50
main33506-20330i200702-201001
33528CSEAL, OIL (FOR CONTROL SHAFT COVER)
main90310-18002i200702-201001
main90311-18013i200702-200902
C53
main90311-18013i200809-200902
C50
main90311-18013i200702-200811
33528EBOLT (FOR CONTROL SHAFT COVER)
main90119-08C67i200702-201001
*8-1.25PX18-13.1
main90119-10288i200702-200902
*10-1.25PX25-19.8,C53,NO.1
main90119-10288i200702-200902
*10-1.25PX25-19.8,NO.1
main90119-10288i200809-200902
*10-1.25PX25-19.8,C50,NO.1
main90119-W0036i200702-200811
*10-1.25PX25-19.8,NO.2
sub91612-61025
main90119-W0036i200702-200902
*10-1.25PX25-19.8,C53,NO.2
sub91612-61025
main90119-W0036i200702-200902
*10-1.25PX25-19.8,T/P B:SEE 33-01,NO.2
sub91612-61025
main91611-60830i200702-201001
*8-1.25PX30-30
main91612-61025i200712-200902
*10-1.25PX25-25,T/P A:SEE 33-01,NO.2
main91612-61025i200809-200902
*10-1.25PX25-25,C50,NO.2
33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)
main33531-05010i200702-200902
TYPE B:REFER 33-01
sub33531-12030
main33531-05010i200702-200902
C53
sub33531-12030
main33531-05010i200702-200811
sub33531-12030
main33531-12030i200712-200902
TYPE A:REFER 33-01
main33531-12030i200809-200902
C50
33544CDAMPER, SHIFT LEVER
main33544-12050i200702-200902
C53
main33544-12050i200702-200811
main33544-12050i200809-200902
C50
main33544-12060i200702-201001
33584AGASKET, CONTROL SHIFT LEVER RETAINER
main33584-12060i200702-200811
main33584-12060i200702-200902
C53
main33584-12060i200809-200902
C50
9011908A41
main90119-08A41
90170W0001
main90170-W0001
9020108049
main90201-08049
9413060800
main94130-60800
9453100800
main94531-00800

52 parts on this diagram · 5 diagrams in section

GEAR SHIFT FORK & LEVER SHAFT (MTM) — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
