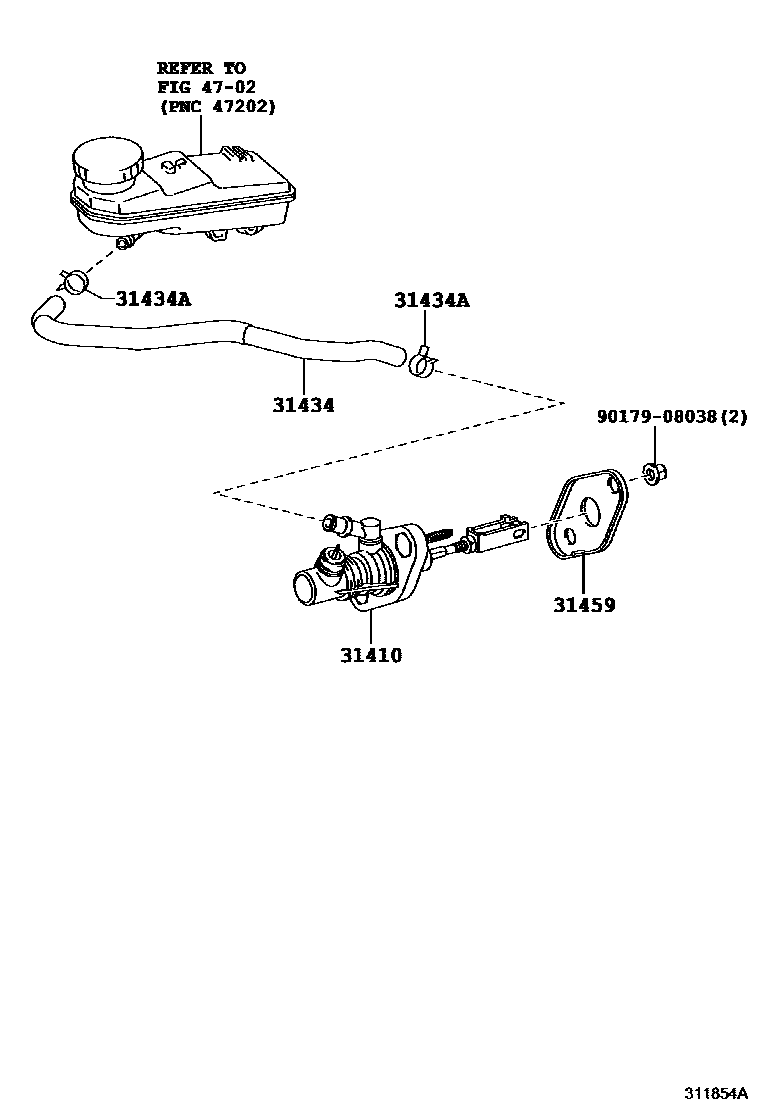

CLUTCH MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1

31410CYLINDER ASSY, CLUTCH MASTER

main31420-02031iNDE150,NRE150,ZRE15#..LHD..6F200702-201305

main31420-02041iNDE150,ZRE151,ZZE150..RHD..5F200702-201012

main31420-02042iNDE150,NRE150,ZRE151..RHD..6F201101-201210

main31420-02051iADE15#..LHD200702-201210

main31420-02061iADE15#..RHD200702-201001

31434TUBE, CLUTCH RESERVOIR

main31434-02030iADE15#..LHD200702-201305

main31434-02040iADE15#..RHD200702-201210

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96136-41801iZZE150200702-201305

31459BRACKET, CLUTCH MASTER CYLINDER

main31459-42040iZZE150200702-201305

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9017908038

main90179-08038

6 parts on this diagram · 4 diagrams in section
