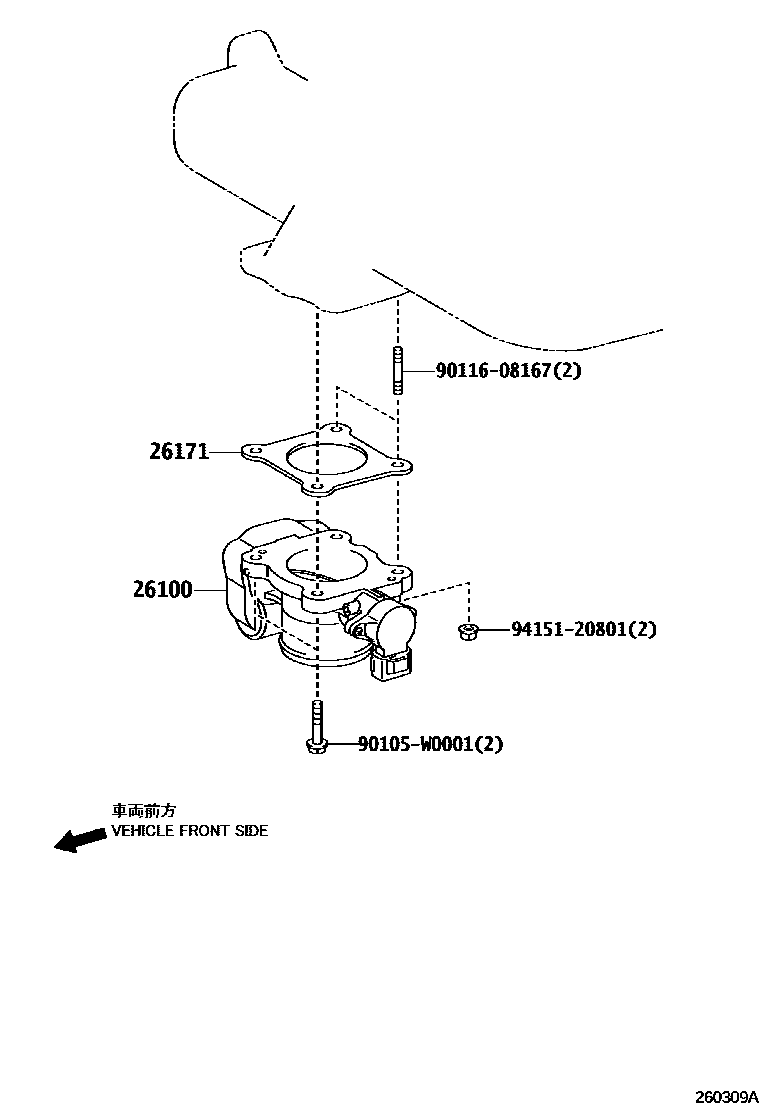

VENTURI

0001 1 0002 1 0004 1 0005 1 0006 1

26100VENTURI ASSY

main26100-0R010i1ADFTV,2ADFHV..ADE15#200702-200802

main26100-0R011i1ADFTV,2ADFHV..ADE15#200802-200903

(L)

main26100-0R020i1ADFTV,2ADFHV..ADE15#200903-201001

main26100-26020i1ADFTV,2ADFHV..ADE15#200802-200903

(J)

26171GASKET, VENTURI

main26171-0R010i1ADFTV,2ADFHV..ADE15#200903-201001

main26171-26010i1ADFTV,2ADFHV..ADE15#200702-200903

main26171-33030i1NDTV..NDE150200902-201001

main26171-33040i1NDTV..NDE150200702-200902

90105W0001

main90105-W0001

9011608167

main90116-08167

9415120801

main94151-20801

5 parts on this diagram · 5 diagrams in section
