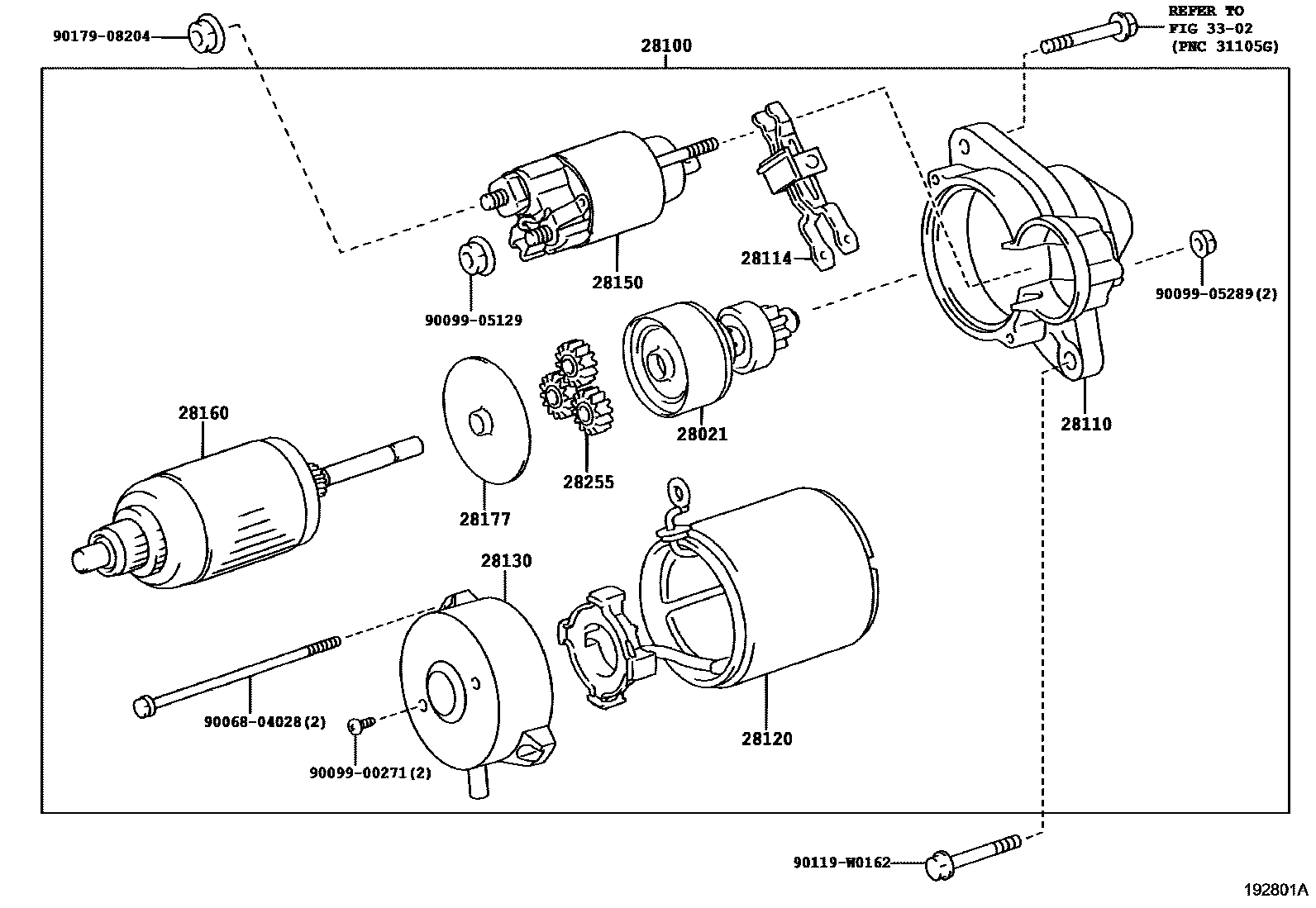

STARTER

0001 112V 2.0KW 0002 112V 1.1KW 0003 112V 2.0KW 0004 112V 1.1KW 0005 112V 1.1KW 0006 112V 1.3KW 0007 112V 1.6KW 0008 112V 1.6KW 0009 112V 2.0KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-0R010i2ADFHV..ADE157..5D;1ADFTV..ADE150..LHD..5D200903-200912

main28021-0N050supersedes 28021-33090i1NDTV..NDE150..3D;1NDTV..NDE150..5D..6FS..TERRA; 1NDTV..NDE150..LHD..3D;1NDTV..NDE150..5D..6FS..TERRA200902-201001

COLD AREA SPEC; SUB COLD AREA SPEC

main28021-47110supersedes 28021-37050i1NRFE..NRE150200912

STOP & START SYSTEM PACKAGE

28100STARTER ASSY

main28100-0D130i4ZZFE..ZZE150200702-200811

12V 1.1KW

main28100-0R010i2ADFHV..ADE157..3D;1ADFTV..ADE150..RHD;1ADFTV..ADE150..LHD..3D200903-201001

12V 2.0KW

main28100-0T030i1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D200902-201001

12V 1.1KW

main28100-0N050i1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA; 1NDTV..NDE150..LHD..(E,SOL);1NDTV..NDE150..LHD..6F..TERRA200912

12V 2.0KW,COLD AREA SPEC; 12V 2.0KW,SUB COLD AREA SPEC

main28100-0Y020supersedes 28100-0Y010i1NRFE..NRE150..5D200811-200912

12V 1.6KW,STOP & START SYSTEM PACKAGE

main28100-0Y021i1NRFE..NRE150201007-201012

12V 1.6KW,STOP & START SYSTEM PACKAGE

main28100-0Y022supersedes 28100-0Y010i1NRFE..NRE150201101

12V 1.6KW,STOP & START SYSTEM PACKAGE

main28100-33080i1NDTV..NDE150; 1NDTV..NDE150..LHD200702-200902

12V 2.0KW,COLD AREA SPEC; 12V 2.0KW,SUB COLD AREA SPEC

28110HOUSING ASSY, STARTER DRIVE

main28110-0D130i4ZZFE..ZZE150200702-200811

main28110-0N010i1NDTV..NDE150200702-200902

main28110-0R010i1ADFTV,2ADFHV..ADE15#200702-200903

main28110-0T030i1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D200902-201001

main28110-0N050i1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA; 1NDTV..NDE150..LHD..(E,SOL);1NDTV..NDE150..LHD..6F..TERRA200912

COLD AREA SPEC; SUB COLD AREA SPEC

main28110-47110supersedes 28110-0Y010i1NRFE..NRE150200912

STOP & START SYSTEM PACKAGE

28114PIN, STARTER DRIVE LEVER SET

main28114-0R010i1ADFTV,2ADFHV..ADE15#..LHD200912

main28114-33100i1NDTV..NDE150..3D;1NDTV..NDE150..5D..6FS..TERRA; 1NDTV..NDE150..LHD..3D;1NDTV..NDE150..5D..6FS..TERRA200902-201001

COLD AREA SPEC; SUB COLD AREA SPEC

28120YOKE ASSY, STARTER

main28120-0D130i1ZRFAE,2ZRFAE..ZRE15#..5D200902-200912

main28120-38020supersedes 28120-33110i1ADFTV,2ADFHV..ADE15#200702-200903

main28120-47110supersedes 28120-0J050i1NRFE..NRE150..5D200811-200912

STOP & START SYSTEM PACKAGE

main28120-54380i1NDTV..NDE150; 1NDTV..NDE150..LHD200702-200902

COLD AREA SPEC; SUB COLD AREA SPEC

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-0D130i1ZR#..ZRE151;2ZRFAE..ZRE152..LHD..SOL200912

main28130-0R010i1ADFTV,2ADFHV..ADE15#200702-200903

main28130-0N050i1NDTV..NDE150..3D;1NDTV..NDE150..5D..6FS..TERRA; 1NDTV..NDE150..LHD..3D;1NDTV..NDE150..5D..6FS..TERRA200902-201001

COLD AREA SPEC; SUB COLD AREA SPEC

main28130-47110supersedes 28130-0Y010i1NRFE..NRE150..5D200811-200912

STOP & START SYSTEM PACKAGE

28150SWITCH ASSY, MAGNET STARTER

main28150-0D130i1ZR#..ZRE151;2ZRFAE..ZRE152..LHD..SOL200912

main28150-37020i1NDTV..NDE150..5D..6F..TERRA;1ADFTV..ADE150..LHD..5D..DCRL;2ADFHV,1NDTV..ADE157,NDE150..5D..(E,SOL)200902-200912

main28150-40090i1NRFE..NRE150..3D200811-201001

main28150-33040i1NDTV..NDE150; 1NDTV..NDE150..LHD200702-200902

COLD AREA SPEC; SUB COLD AREA SPEC

28160ARMATURE ASSY, STARTER

main28160-0D130i4ZZFE..ZZE150200702-200811

main28160-0G020supersedes 28160-33090i1ADFTV,2ADFHV..ADE15#..LHD; 1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA; 1NDTV..NDE150..LHD..(E,SOL);1NDTV..NDE150..LHD..6F..TERRA200912

COLD AREA SPEC; SUB COLD AREA SPEC

main28160-54380i1NDTV..NDE150; 1NDTV..NDE150..LHD200702-200902

COLD AREA SPEC; SUB COLD AREA SPEC

main28180-47110supersedes 28160-0D180i1NRFE..NRE150..5D200811-200912

STOP & START SYSTEM PACKAGE

28177PLATE(FOR STARTER ARMATURE)

main28177-0G020i1ADFTV,2ADFHV..ADE15#200702-200903

main28177-37050i1NDTV..NDE150..5D..6FS..TERRA;1N#..NDE150,NRE150..3D..(6F,6FS)200811-201001

28255GEAR, PLANET

main28255-0G040×3supersedes 28255-33090i1ADFTV,2ADFHV..ADE15#..LHD; 1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA; 1NDTV..NDE150..LHD..(E,SOL);1NDTV..NDE150..LHD..6F..TERRA200912

COLD AREA SPEC; SUB COLD AREA SPEC

main28255-47110×3supersedes 28255-37050i1NRFE..NRE150..3D200811-201001

STOP & START SYSTEM PACKAGE

3302CLUTCH HOUSING & TRANSMISSION CASE (MTM)

→ Go to FIG 33-02

9006804028

main90068-04028

9009900271

main90099-00271

9009905129

main90099-05129

9009905289

main90099-05289

90119W0162

main90119-W0162

9017908204

main90179-08204

17 parts on this diagram · 9 diagrams in section
