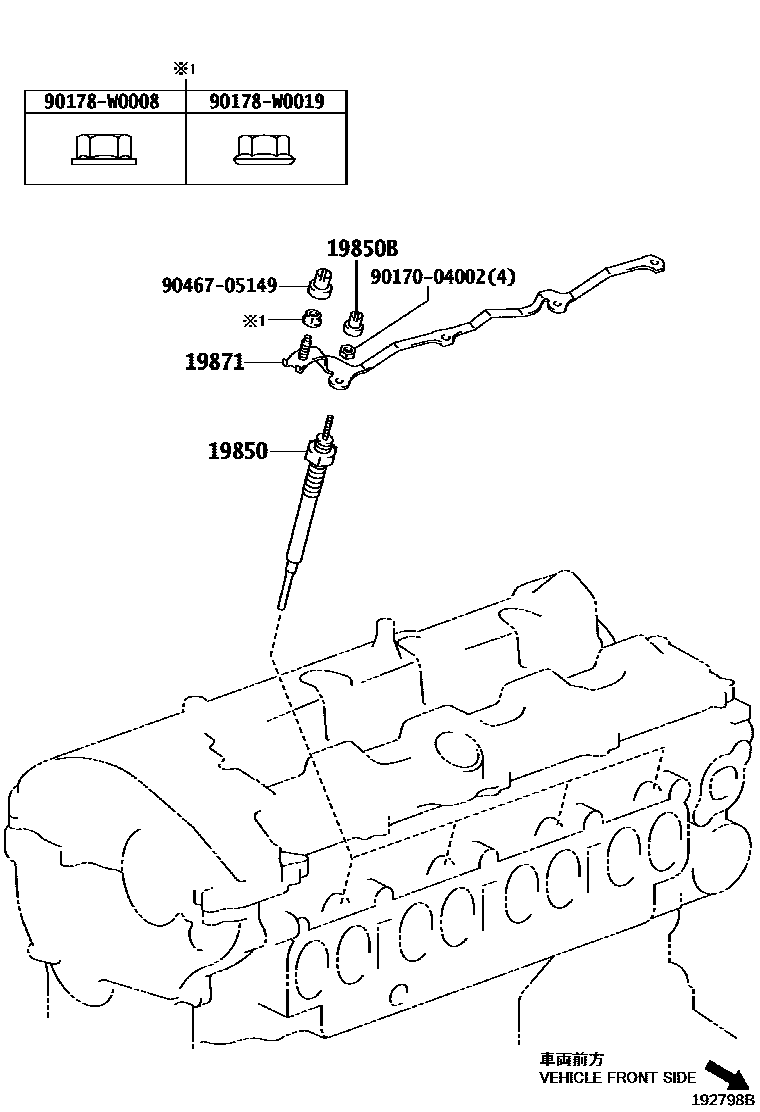

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1 0005 1

19850PLUG ASSY, GLOW

main19850-0R010i1ADFTV..ADE150..DCR200702-200903

*BV-GV=12V-11V

main19850-0R020i1ADFTV,2ADFHV..ADE15#..DCRL200702-200809

*BV-GV=12V-11V

sub19850-0R022

main19850-0R022i1ADFTV,2ADFHV..ADE15#..DCRL200809-201107

*BV-GV=12V-11V,(L)

main19850-0W010i1NDTV..NDE150200702-200902

*BV-GV=12V-11V

main19850-26022i1ADFTV,2ADFHV..ADE15#..LHD200810-201107

*BV-GV=12V-11V,(J)

main19850-26022i1ADFTV,2ADFHV..ADE15#201107

*BV-GV=12V-11V

main19850-33020i1NDTV..NDE150..SOL..DCR;1NDTV..NDE150..6F..TERRA..DCR200912-201010

*BV-GV=12V-11V,*132

main19850-33020i1NDTV..NDE150200902-201001

*BV-GV=12V-11V

main19850-33020i1NDTV..NDE150..DCRL201008-201012

*BV-GV=12V-11V,*251

main19850-33030i1NDTV..NDE150..DCR201012

*BV-GV=12V-11V,*251

main19850-33030i1NDTV..NDE150..DCR201010

*BV-GV=12V-11V,*132

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024i1ADFTV,2ADFHV..ADE15#200702-201001

main90189-04024i1ADFTV,2ADFHV..ADE15#..LHD200912

*132

main90189-04024i1NDTV..NDE150..DCRL201008

*251

19871CONNECTOR, GLOW PLUG NO.1

main19871-26010i1ADFTV,2ADFHV..ADE15#200702-201001

main19871-33010i1NDTV..NDE150200702-200902

main19871-33020i1NDTV..NDE150200902-201001

main19871-33020i1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA200912

*132

main19871-33020i1NDTV..NDE150..DCRL201008

*251

9017004002

main90170-04002

90178W0008

main90178-W0008

90178W0019

main90178-W0019

9046705149

main90467-05149

7 parts on this diagram · 5 diagrams in section
