ENGINE OIL COOLER

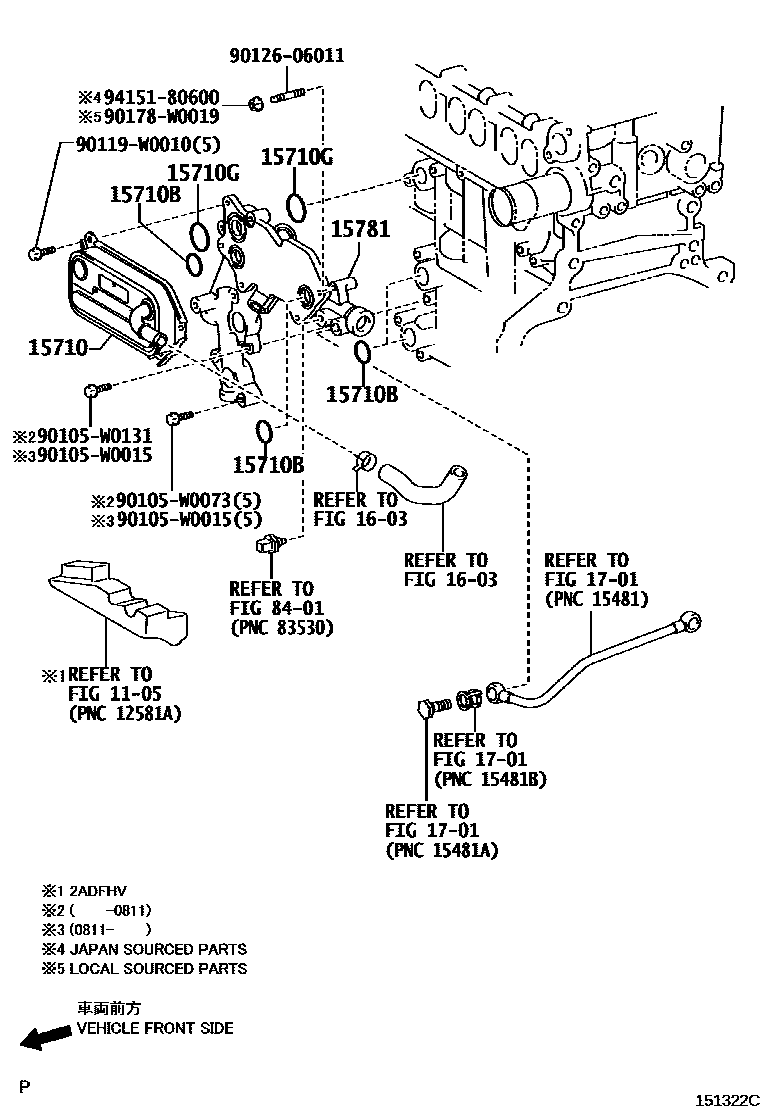

Parts diagram
1105CYLINDER BLOCK
→ Go to FIG 11-05
15710COOLER ASSY, OIL
main15710-0R010i200702-200903
SOUTH AFRICA SPEC
main15710-0R011i201010
main15710-33030i200702-200902
main15710-33050i200912
15710BRING, O(FOR OIL COOLER)
main90301-24018×4i200702-200903
EXHAUST EMISSION CONTROL-ECE STEP4,WITHOUT(OBD); SOUTH AFRICA SPEC
main90301-58002i200702-200902
main96723-35024×2i200912
15710GRING, O, NO.2
main90301-29013×2i200702-200903
EXHAUST EMISSION CONTROL-ECE STEP4,WITHOUT(OBD); SOUTH AFRICA SPEC
15781BRACKET, OIL COOLER, NO.1
main15781-26011i200702-200811
EXHAUST EMISSION CONTROL-ECE STEP4,WITHOUT(OBD); SOUTH AFRICA SPEC
main15781-26030i200811-200903
EXHAUST EMISSION CONTROL-ECE STEP4,WITHOUT(OBD); SOUTH AFRICA SPEC
main15781-26031i201011
1603RADIATOR & WATER OUTLET
→ Go to FIG 16-03
1701MANIFOLD
→ Go to FIG 17-01
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
90105W0015
main90105-W0015
90105W0073
main90105-W0073
90105W0131
main90105-W0131
90119W0010
main90119-W0010
9012606011
main90126-06011
90178W0019
main90178-W0019
9415180600
main94151-80600

15 parts on this diagram · 4 diagrams in section
