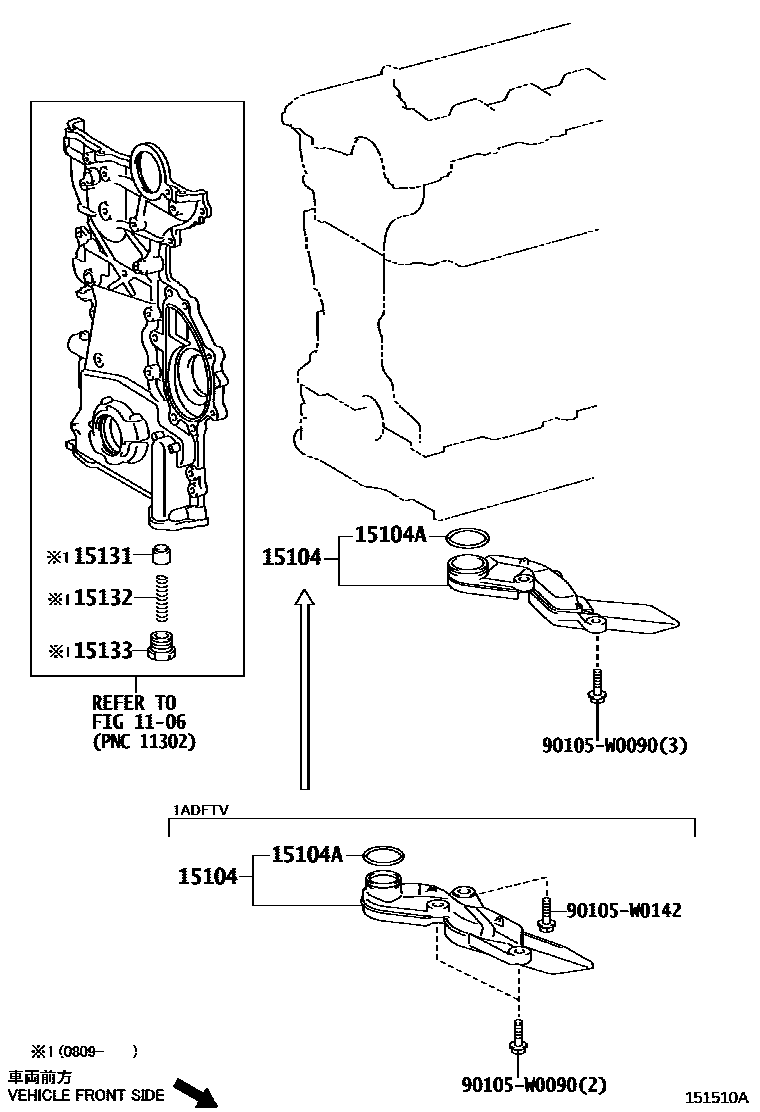

Toyota AURIS/HYBRID (UKP)166 — ENGINE OIL PUMP
1106TIMING GEAR COVER & REAR END PLATE
15104STRAINER SUB-ASSY, OIL
15104ARING, O(FOR OIL STRAINER)
15132SPRING, OIL PUMP RELIEF VALVE
90105W0090
90105W0142
8 parts on this diagram · 7 diagrams in section
ENGINE OIL PUMP for Toyota AURIS/HYBRID (UKP)166
This section contains 48 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota AURIS/HYBRID (UKP)166. Key components include: CYLINDER BLOCK, TIMING GEAR COVER & REAR END PLATE, COVER, TIMING CHAIN, NO.2, COVER SUB-ASSY, OIL PUMP, PUMP ASSY, OIL.
