CAMSHAFT & VALVE

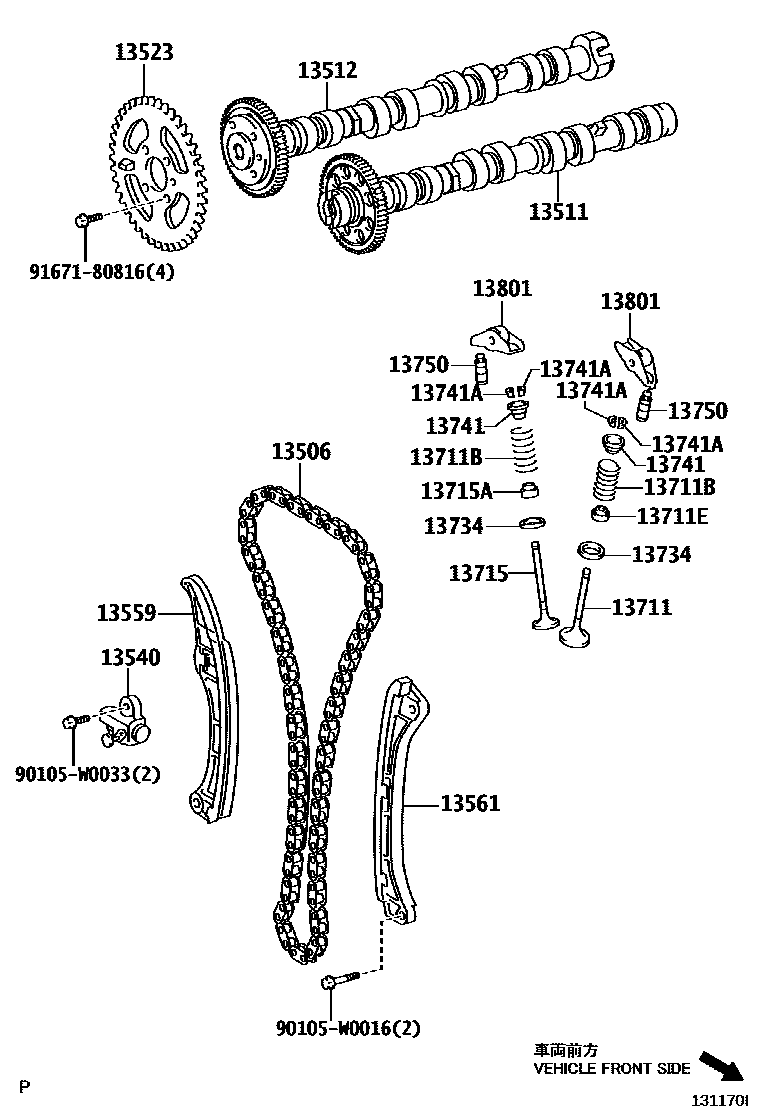

Parts diagram
13506CHAIN SUB-ASSY
main13506-0D020i200702-200811
(L)
sub13506-22030
main13506-0R010i200702-201001
main13506-22030i200702-200811
(J)
main13506-33020i200702-200902
main13506-33030i200902-201210
main13506-37010i200702-201001
sub13506-37070
main13506-37040i200902-201001
main13506-47010i200811-201210
sub13506-47030
main13506-47030i201210-201305
13511CAMSHAFT
main13501-0D021i200702-200801
(L)
sub13501-0D022
main13501-0D022i200801-200811
(L)
main13501-0R010i200702-201001
main13501-0T030i200801-201001
(L)
main13501-22061i200702-200803
(J)
sub13501-22062
main13501-22062i200803-200811
(J)
main13501-33010i200702-200902
main13501-33041i200902-201001
sub13501-33042
main13501-33041i200912-201112
*132
sub13501-33042
main13501-33041i201008-201202
*251
sub13501-33042
main13501-33042i201112
*132
main13501-33042i201202
*251
main13501-37010i200702-200705
(J),*148
sub13501-37011
main13501-37011i200909-201001
(J)
sub13501-37040
main13501-37011i200702-200902
(J),*149
sub13501-37040
main13501-37011i200705-200902
(J),*148
sub13501-37040
main13501-37030i201006
main13501-47020i200811-201305
13512CAMSHAFT, NO.2
main13502-0D021i200702-200811
(L)
sub13502-22011
main13502-0R010i200702-201110
sub13502-0R011
main13502-0R011i201110
main13502-0T030i200801-201001
(L)
main13502-22011i200702-200811
(J)
main13502-37010i200702-201001
(J)
sub13502-37050
main13502-37040i201006
sub13502-37080
sub13801-36020
main13502-47010i200811-201305
13523GEAR OR SPROCKET, CAMSHAFT TIMING
main13523-0D020i200702-200811
(L)
sub13523-22020
main13523-0R010i200702-201002
sub13523-0R011
main13523-0R011i200912-201001
main13523-22020i200702-200811
(J)
main13523-33021i200702-200902
main13523-33030i200902-201210
13540TENSIONER ASSY, CHAIN, NO.1
main13540-0D020i200702-200811
(L)
main13540-0R010i200702-201001
main13540-0T030i200810-201001
(L)
main13540-22022i200702-200811
(J)
main13540-33020i200702-200902
main13540-33030i200902-201210
main13540-37010i200702-200703
(J),*148
sub13540-37020
main13540-37020i200702-200704
(J),*149
sub13540-37030
main13540-37020i200703-200704
(J),*148
sub13540-37030
main13540-37030i200902-201001
(J)
main13540-37030i200704-200902
(J),*148,(J),*149
main13540-47010i200811-201305
sub13540-47011
13559SLIPPER, CHAIN TENSIONER
main13559-0D020i200702-200811
(L)
main13559-0R010i200702-201110
sub13559-0R020
main13559-0R020i201110
main13559-0T030i200810-201001
(L)
sub13559-0T080
main13559-22011i200702-200811
(J)
main13559-33010i200702-200902
main13559-33020i200902-201210
sub13559-33021
main13559-37010i200702-201001
(J)
sub13559-37050
13561DAMPER, CHAIN VIBRATION, NO.1
main13561-0D020i200702-200811
(L)
main13561-0R010i200702-201110
sub13561-0R020
main13561-0R020i201110
main13561-0T050i200902-201210
(L)
sub13561-37060
main13561-22020i200702-200811
(J)
main13561-33020i200702-200902
main13561-33030i200902-201210
main13561-37010i200902-201210
(J)
sub13561-37040
main13561-37020i201006-201211
(J)
sub13561-37050
main13561-37020i200702-201211
sub13561-37050
13711VALVE, INTAKE
main13711-0R010i200702-201001
main13711-0T040i201105-201211
(L)
main13711-22040i200702-200811
main13711-33030i200702-200803
sub13711-33031
main13711-33031i200804-201210
main13711-37020i200702-201211
main13711-37020i201105-201211
(J)
main13711-47010i200811-201305
13711BSPRING, COMPRESSION(FOR INNER)
main90080-50253i200702-200811
(L)
main90501-28039i200803-201001
main90501-29048i200702-200811
(J)
main90501-31024i200702-201110
sub90501-31027
main90501-31027i201110
main90501-W0006i200702-200803
sub90501-28039
13711ESEAL, INTAKE VALVE STEM OIL
main90913-02124i200702-201001
(J)
main90913-W2001i200702-201001
(L)
13715VALVE, EXHAUST
main13715-0R010i200702-201001
main13715-0T040i201105-201211
(L)
main13715-22040i200702-200811
main13715-33040i200702-200803
sub13715-33041
main13715-33041i200804-201210
main13715-37030i200702-201211
main13715-37030i201105-201211
(J)
main13715-47010i200811-201305
13715ASEAL, EXHAUST VALVE STEM OIL
main90913-02124i200702-201001
(J)
main90913-W2001i200702-201001
(L)
13734SEAT, VALVE SPRING
main13734-33020i200809-201210
main13734-62020i200702-201305
main13734-74010i200702-200811
main90562-13002i200702-200809
13741RETAINER, VALVE SPRING
main13741-0R010i200702-200812
sub13741-33020
main13741-10020i200702-200902
main13741-20021i200702-201001
main13741-22021i200702-200811
main13741-33020i200812-201210
13741ALOCK, VALVE SPRING RETAINER
main90080-38115i200702-200811
sub90913-03028
main90913-03021i200702-201210
main90913-03028i200702-201305
13750ADJUSTER ASSY, VALVE LASH
main13750-0R010i200702-201001
main13750-0T010i200810-201001
(L)
main13750-75020i200702-201001
(J)
main13750-75020i200811-201001
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
main13801-0R010i200702-201001
main13801-0T020i200810-201001
(L)
main13801-23011i200702-201001
(J)
main13801-23011i200811-201008
main13801-33020i201008-201210
(J),*251
main13801-33020i200702-201001
main13801-33020i200912
(J),*132
main13801-47010i201008
sub13801-36020
90105W0016
main90105-W0016
90105W0033
main90105-W0033
9167180816
main91671-80816

20 parts on this diagram · 8 diagrams in section
