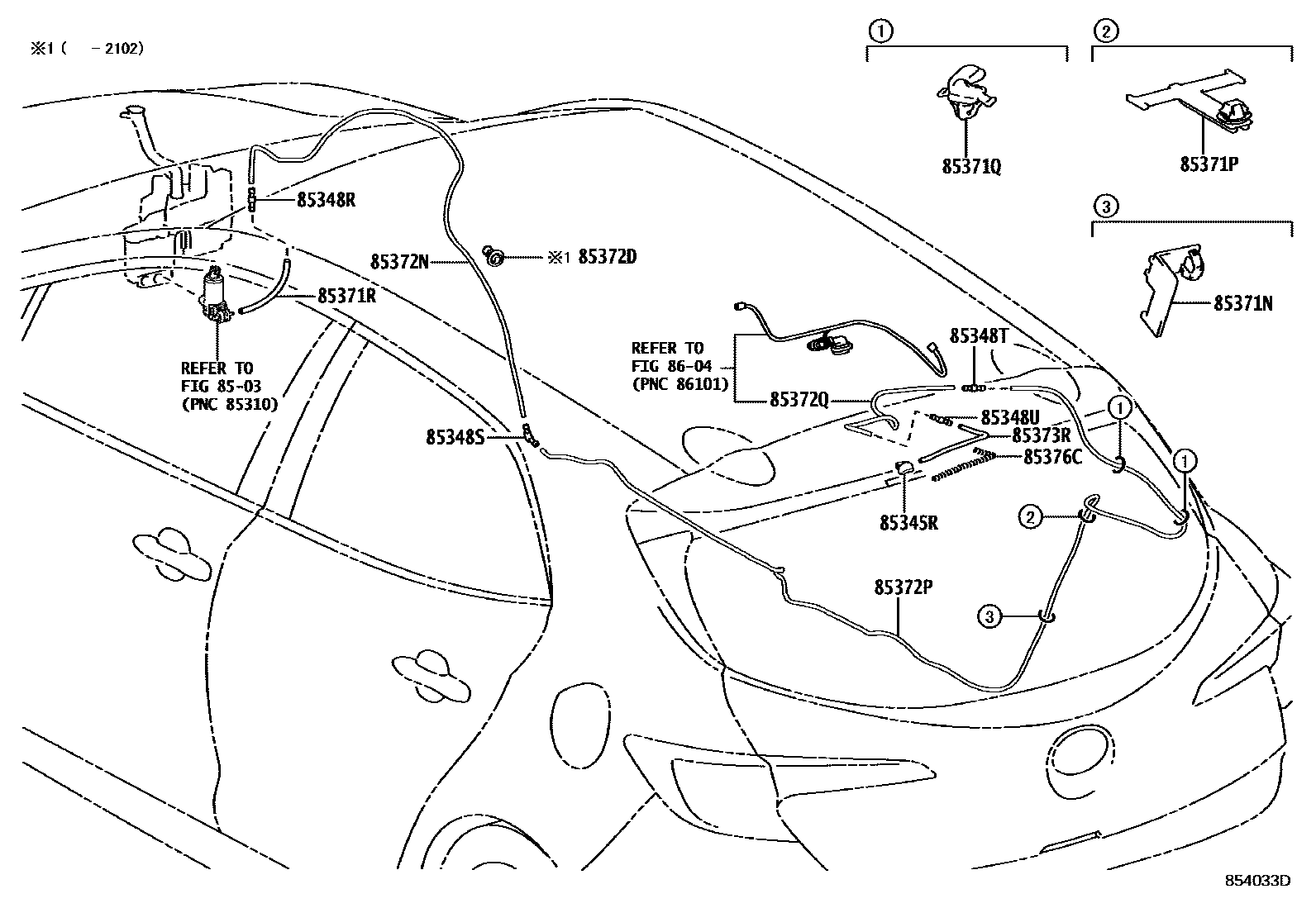

REAR WASHER
8503WINDSHIELD WASHER
85345RNOZZLE, REAR WASHER
main85391-12110iMZEH12,NRE210,ZWE211..WG; MZEH12,NRE210,ZWE211..WG..(D,G,N); MZEH12,ZWE211..WG..G; NRE210..WG..G201902
LIGHT GRADE; LIGHT GRADE&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT; LIGHT GRADE&WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85371NCLAMP, REAR WASHER HOSE
85371PCLAMP, REAR WASHER HOSE, NO.2
85371QCLAMP, REAR WASHER HOSE, NO.3
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
main90069-16010iMZEH12,NRE210,ZWE211; MZEH12,NRE210,ZWE211..(C,D,N)..EUR; MZEH12,NRE210,ZWE211..N201901
AUDIO-8INCH & NAVI & DAB & 6SPEAKER; AUDIO-8INCH & DAB & 6SPEAKER
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
MOON ROOF-WITH(PANORAMA ROOF)
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
main90069-16009iMZEH12,NRE210,ZWE211..(C,D,N)..EUR; MZEH12,NRE210,ZWE211..C,D,N; MZEH12,NRE210,ZWE211..G,P; MZEH12,NRE210,ZWE211..N201901
L=1000; L=1000,AUDIO-8INCH & NAVI & DAB & 6SPEAKER; L=1000,AUDIO-8INCH & DAB & 6SPEAKER; L=496
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=200); L=1450(*H,L=200),MOON ROOF-WITH(PANORAMA ROOF); L=1450(*H,L=330)
85376CSPRING, WASHER HOSE
main85389-72030iMZEH12,NRE210,ZWE211..WG; MZEH12,NRE210,ZWE211..WG..(D,G,N); MZEH12,ZWE211..WG..G; NRE210..WG..G201902
LIGHT GRADE; LIGHT GRADE&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT; LIGHT GRADE&WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT
8604ANTENNA
17 parts on this diagram · 2 diagrams in section
