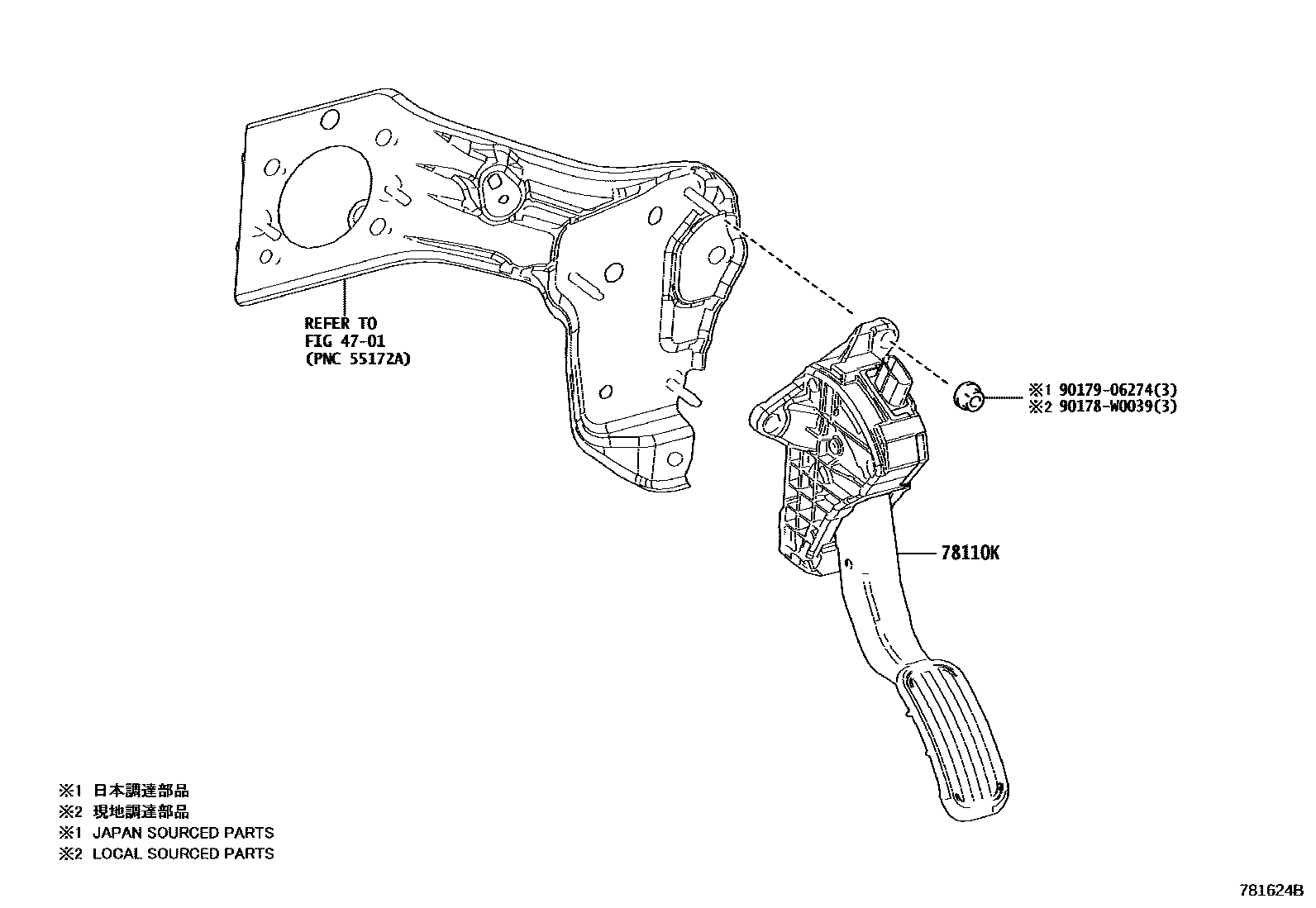

ACCELERATOR LINK

0001 1 0002 1

4701

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-02190iMZEH12,NRE210,ZWE211..RHD201901-202009

sub78110-02191

main78110-02191iMZEH19,ZWE219..RHD202010

main78110-02200iNRE210..6F..GEN201901-202009

SPEED LIMITER CONTROL-WITHOUT

sub78110-02201

main78110-02201iNRE210..6F..GEN202010

SPEED LIMITER CONTROL-WITHOUT

main78110-02210iNRE210..CVT..GEN;MZEH12,NRE210,ZWE211..LHD..EUR201901-202009

sub78110-02211

main78110-02211iNRE210..CVT..GEN;MZEH12,NRE210,ZWE211..LHD..EUR202010

90178W0039

main90178-W0039

9017906274

main90179-06274

4 parts on this diagram · 2 diagrams in section
