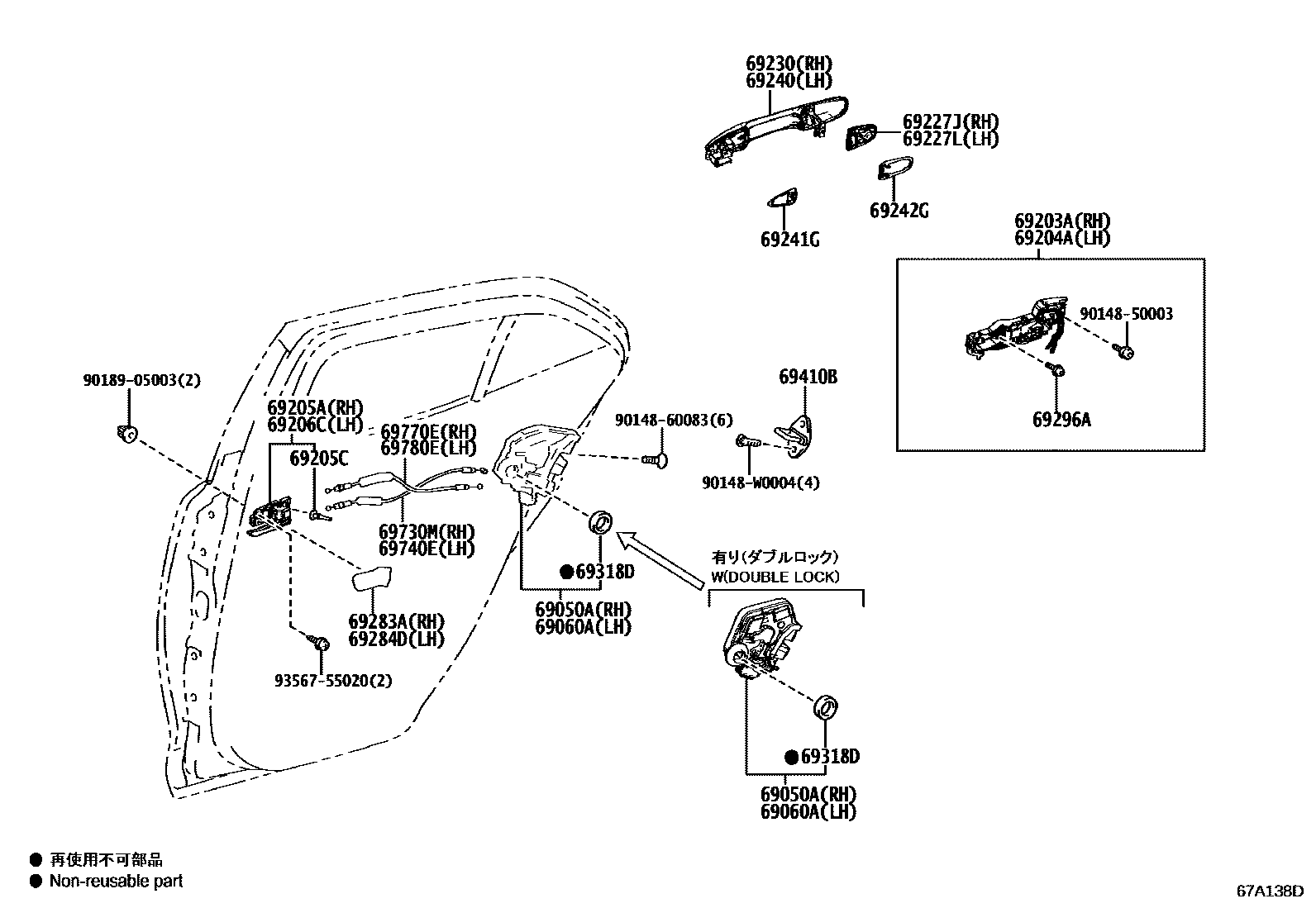

REAR DOOR LOCK & HANDLE

0001 1 0002 1

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-02580iMZEH19,ZWE219..LHD201901

main69050-02600iNRE210..LHD..G201901

GERMANY SPEC&WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)

main69050-02600iMZEH12,NRE210,ZWE211..LHD..EUR201901

GERMANY SPEC

main69050-02610iNRE210..LHD..G201901

WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-02580iMZEH19,ZWE219..LHD201901

main69060-02600iNRE210..LHD..G201901

GERMANY SPEC&WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)

main69060-02600iMZEH12,NRE210,ZWE211..RHD201901

GERMANY SPEC

main69060-02610iNRE210..LHD..(D,N)201901

WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-02400iMZEH19,ZWE219..HB201901

main69203-02410iMZEH19,ZWE219..WG201902

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-02400iMZEH19,ZWE219..HB201901

main69204-02410iMZEH12,NRE210,ZWE211..WG201902

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-02350-B1iNRE210,ZWE211..C,D201901

COOL GRAY/BLACK,TRIM1#

main69205-02350-C1iNRE210,ZWE211..C,D201901

BLACK,TRIM2#

main69205-02370-B0iMZEH12,NRE210,ZWE211..G,N,P201901

COOL GRAY,TRIM1#

main69205-02370-C0iMZEH19,ZWE219..G,N,P,S201901

BLACK,TRIM2#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04014iMZEH12,NRE210,ZWE211201901

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-02360-B1iNRE210,ZWE211..C,D201901

COOL GRAY/BLACK,TRIM1#

main69206-02360-C1iZWE219..C,D201901

BLACK,TRIM2#

main69206-02370-B0iMZEH12,NRE210,ZWE211..G,N,P201901

COOL GRAY,TRIM1#

main69206-02370-C0iMZEH12,NRE210,ZWE211..G,N,P201901

BLACK,TRIM2#

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-02390iMZEH19,ZWE219201901

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69227-02390iMZEH12,NRE210,ZWE211201901

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69211-02934iMZEH12,NRE210,ZWE211201901

PAINT REQ.

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69211-02934iMZEH12,NRE210,ZWE211201901

PAINT REQ.

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-02250iMZEH12,NRE210,ZWE211201901

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-02240iMZEH12,NRE210,ZWE211201901

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main74037-02040-B0iMZEH12,NRE210,ZWE211201901

COOL GRAY,TRIM1#

main74037-02040-C0iMZEH12,NRE210,ZWE211201901

BLACK,TRIM2#

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main74038-02040-B0iMZEH12,NRE210,ZWE211201901

COOL GRAY,TRIM1#

main74038-02040-C0iMZEH12,NRE210,ZWE211201901

BLACK,TRIM2#

69296ASCREW, DOOR INSIDE HANDLE

main69296-30010iMZEH12,NRE210,ZWE211201901

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iMZEH19,ZWE219201901

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-0H020iMZEH19,ZWE219201901

69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69730-02330iMZEH19,ZWE219..HB201901

main69730-02430iMZEH12,NRE210,ZWE211..LHD..WG..(D,G,N)201902

main69730-02470iMZEH12,NRE210,ZWE211..RHD..WG..(D,G,N,P)201902

GERMANY SPEC&WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)

main69730-02470iMZEH12,NRE210,ZWE211..RHD..WG..(D,G,N,P)201902

GERMANY SPEC

69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69730-02330iMZEH19,ZWE219..HB201901

main69730-02430iMZEH12,NRE210,ZWE211..LHD..WG..(D,G,N)201902

main69730-02470iMZEH12,NRE210,ZWE211..LHD..WG..(D,G,N)201902

GERMANY SPEC&WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)

main69730-02470iZWE211..RHD..C201902

GERMANY SPEC

69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69770-02430iMZEH12,NRE210,ZWE211..LHD..HB201901

main69770-02520iMZEH12,NRE210,ZWE211..RHD..HB201901

GERMANY SPEC&WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)

main69770-02520iMZEH12,NRE210,ZWE211..LHD..HB..EUR201901

GERMANY SPEC

main69770-02530iMZEH19,ZWE219..LHD..WG201902

main69770-02570iMZEH19,ZWE219..LHD..WG201902

GERMANY SPEC

main69770-02570iMZEH12,NRE210,ZWE211..RHD..WG..(D,G,N,P)201902

GERMANY SPEC&WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)

69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69770-02430iMZEH19,ZWE219..LHD..HB201901

main69770-02520iNRE210..LHD..HB..G201901

GERMANY SPEC

main69770-02520iMZEH12,NRE210,ZWE211..LHD..HB..EUR201901

GERMANY SPEC&WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)

main69770-02530iMZEH12,NRE210,ZWE211..LHD..WG..(D,G,N)201902

main69770-02570iMZEH19,ZWE219..LHD..WG201902

GERMANY SPEC

main69770-02570iMZEH12,NRE210,ZWE211..RHD..WG..(D,G,N,P)201902

GERMANY SPEC&WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)

9014850003

main90148-50003

9014860083

main90148-60083

90148W0004

main90148-W0004

9018905003

main90189-05003

9356755020

main93567-55020

27 parts on this diagram · 2 diagrams in section
