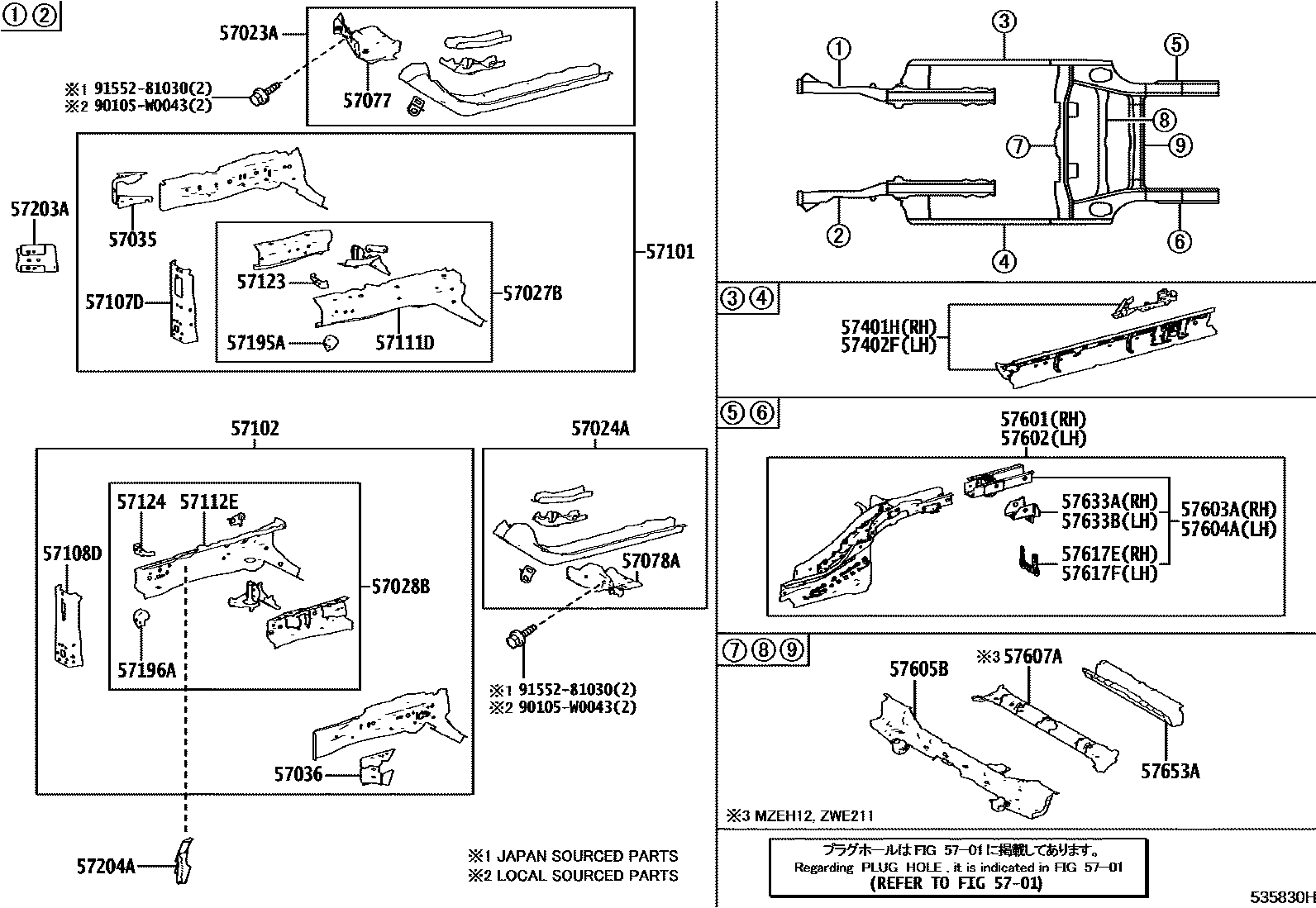

FLOOR SIDE MEMBER

0001 1 0002 1

5701HOLE PLUG

→ Go to FIG 57-01

57023AMEMBER SUB-ASSY, REAR SIDE, RH

main57023-02090iMZEH12,NRE210,ZWE211201901-202005

main57023-02091iMZEH12,NRE210,ZWE211202006

57024AMEMBER SUB-ASSY, REAR SIDE, LH

main57024-02100iMZEH12,NRE210,ZWE211201901-202005

main57024-02101iMZEH12,NRE210,ZWE211202006

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-02100iMZEH12,NRE210,ZWE211201901

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-02110iMZEH12,NRE210,ZWE211201901

57035PANEL SUB-ASSY, FRONT STEP, RH

main57035-02020iMZEH12,NRE210,ZWE211201901

57036PANEL SUB-ASSY, FRONT STEP, LH

main57036-02020iMZEH12,NRE210,ZWE211201901

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-02030iMZEH12,NRE210,ZWE211201901

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-02040iMZEH12,NRE210,ZWE211201901

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-02927iMZEH12,NRE210,ZWE211201901

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-02944iMZEH12,NRE210,ZWE211201901

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-02100iMZEH12,NRE210,ZWE211201901

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-02100iMZEH12,NRE210,ZWE211201901

57111DMEMBER, FRONT SIDE, INNER RH

main57111-02210iMZEH12,NRE210,ZWE211201901

57112EMEMBER, FRONT SIDE, INNER LH

main57112-02180iMZEH12,NRE210,ZWE211201901

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-F4010iMZEH12,NRE210,ZWE211201901

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-F4010iMZEH12,NRE210,ZWE211201901

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-F4010iMZEH12,NRE210,ZWE211201901

57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-F4010iMZEH12,NRE210,ZWE211201901

57203AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57203-02030iMZEH12,NRE210,ZWE211201901

57204AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57204-02030iMZEH12,NRE210,ZWE211201901

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-02350iMZEH12,NRE210,ZWE211..HB201901

main57401-02360iMZEH19,ZWE219..WG202301

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-02360iMZEH19,ZWE219..HB202301

main57402-02370iMZEH19,ZWE219..WG202301

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-02940iMZEH19,ZWE219..HB202301

main57601-02941iMZEH19,ZWE219..WG202301

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-02942iMZEH12,NRE210,ZWE211..HB201901

main57602-02943iMZEH12,NRE210,ZWE211..WG201902

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-02200iMZEH12,NRE210,ZWE211..HB201901

main57603-02210iMZEH19,ZWE219..WG202301

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-02100iMZEH19,ZWE219..HB202301

main57604-02110iMZEH12,NRE210,ZWE211..WG201902

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-02310iMZEH19,ZWE219202301

main57605-02320iNRE210201901

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-02020iMZEH12,ZWE211201901

57617EPLATE, REAR FLOOR SIDE MEMBER SUB

main57617-F4010iMZEH12,NRE210,ZWE211201901

57617FPLATE, REAR FLOOR SIDE MEMBER SUB

main57617-F4010iZWE219..HB202301

57633AEXTENSION, REAR FLOOR SIDE MEMBER, REAR RH

main57633-02060iMZEH19,ZWE219..WG202301

main57633-F4010iMZEH19,ZWE219..HB202301

57633BEXTENSION, REAR FLOOR SIDE MEMBER, REAR LH

main57633-02060iMZEH12,NRE210,ZWE211..WG201902-202006

main57633-02100iMZEH12,NRE210,ZWE211..WG202006

main57633-F4010iMZEH12,NRE210,ZWE211..HB201901

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-02190iMZEH12,NRE210,ZWE211201901

90105W0043

main90105-W0043

9155281030

main91552-81030

36 parts on this diagram · 2 diagrams in section
