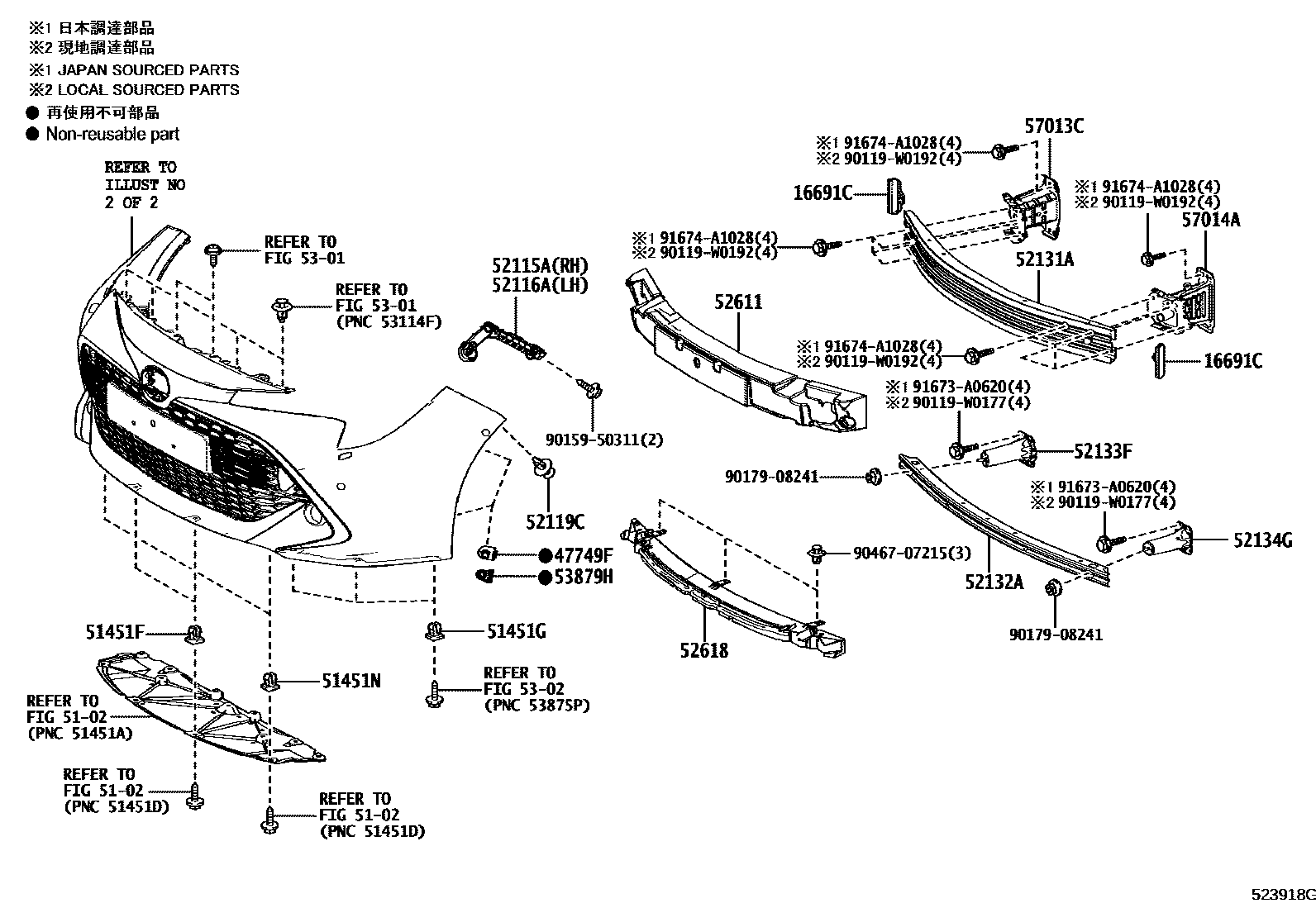

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1CROSS PACKAGE 0004 1CROSS PACKAGE 0005 1GRS PACKAGE 0007 1GRS PACKAGE 0009 1 0010 1

16691CPLATE, RADIATOR SIDE AIR GUIDE, FRONT

main16691-0T030×2iM20AFXS,8NRFTS,2ZRFXE..MZEH12,NRE210,ZWE211201901

47749FCLIP, PIN HOLD

main47749-02040×4iMZEH12,NRE210,ZWE211201901

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

51451FGROMMET, NO.1

main90189-06193×2iMZEH12,NRE210,ZWE211201901

51451GGROMMET, NO.2

main90189-06193×6iMZEH12,NRE210,ZWE211201901

51451NGROMMET, NO.3

main90189-06193×2iMZEH12,NRE210,ZWE211201901

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-02330iMZEH12,NRE210,ZWE211201901

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-02470iMZEH12,NRE210,ZWE211201901

52119CCLIP, FRONT BUMPER COVER

main90467-05170×2iMZEH12,NRE210,ZWE211201901

52131AREINFORCEMENT, FRONT BUMPER

main52131-02290iMZEH12,NRE210,ZWE211201901

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-02070iMZEH12,NRE210,ZWE211..G201901

main52132-02140iMZEH12,NRE210,ZWE211..C,D,N,P; MZEH12,NRE210,ZWE211..G201911

FRONT FOG & DRIVING LAMP-WITHOUT

52133FBRACKET, FRONT BUMPER, RH

main52133-02110iMZEH12,NRE210,ZWE211201901

52134GBRACKET, FRONT BUMPER, LH

main52133-02110iMZEH12,NRE210,ZWE211201901

52611ABSORBER, FRONT BUMPER ENERGY

main52611-02520iMZEH12,NRE210,ZWE211201901

main52611-02720iMZEH19,ZWE219202301

52618ABSORBER, FRONT BUMPER, LOWER

main52618-02180iMZEH12,NRE210,ZWE211201901

5301RADIATOR GRILLE

→ Go to FIG 53-01

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53879HRETAINER, FRONT FENDER LINER

main53879-02160×4iMZEH12,NRE210,ZWE211201901

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-02190iMZEH12,NRE210,ZWE211201901

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-02190iMZEH12,NRE210,ZWE211201901

90119W0177

main90119-W0177

90119W0192

main90119-W0192

9015950311

main90159-50311

9017908241

main90179-08241

9046707215

main90467-07215

91673A0620

main91673-A0620

91674A1028

main91674-A1028

27 parts on this diagram · 8 diagrams in section
