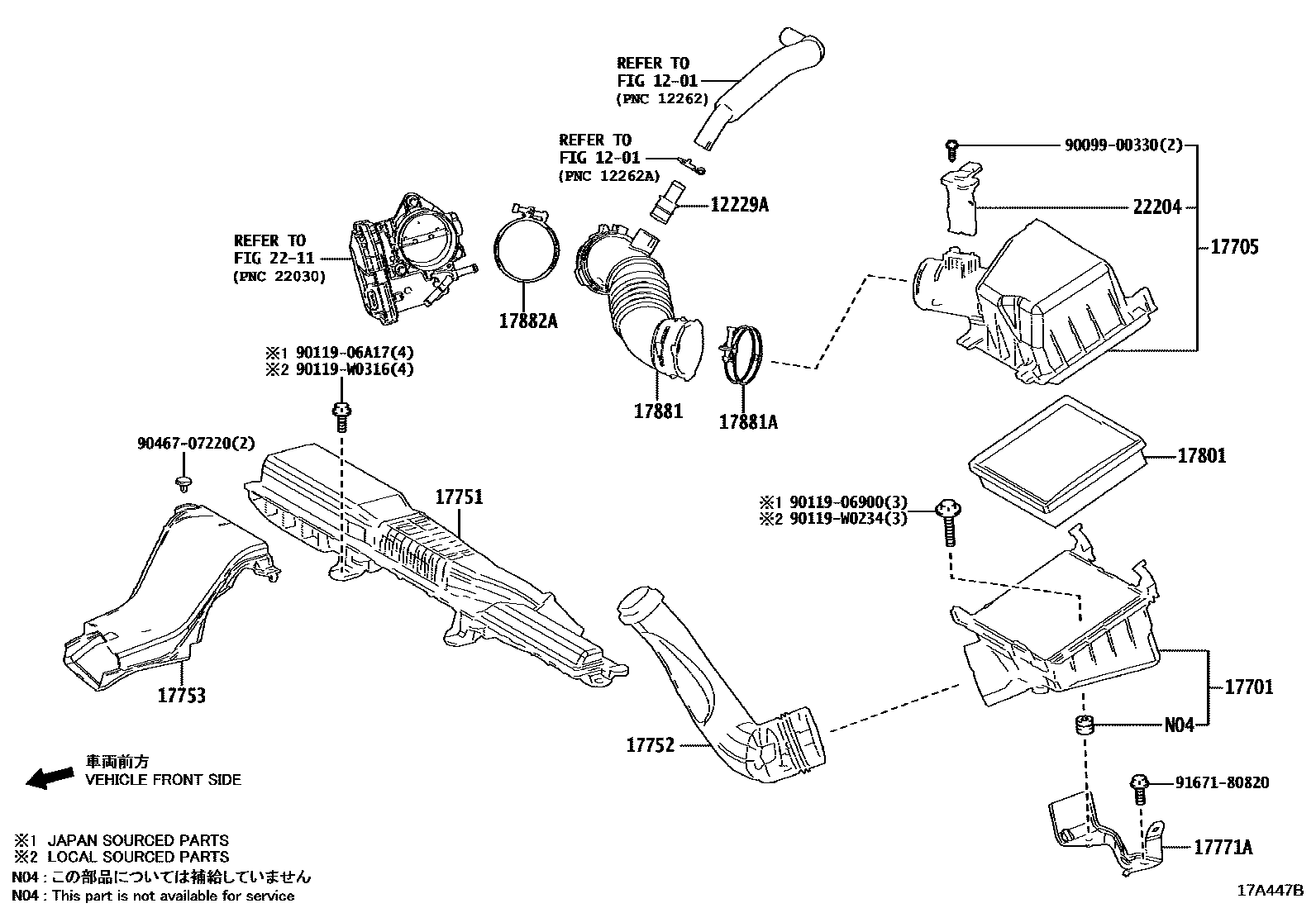

AIR CLEANER
1201
12229APIPE, VENTILATION
17701CASE SUB-ASSY, AIR CLEANER
17705CAP SUB-ASSY, AIR CLEANER
17751INLET, AIR CLEANER, NO.1
17752INLET, AIR CLEANER, NO.2
(L)
(J)
17753INLET, AIR CLEANER, NO.3
17771ABRACKET, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
(L)
(L)
(J)
(J)
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
2211
22204METER SUB-ASSY, INTAKE AIR FLOW
(J)
(L)
9009900330
main90099-00330
9011906900
main90119-06900
9011906A17
main90119-06A17
90119W0234
main90119-W0234
90119W0316
main90119-W0316
9046707220
main90467-07220
9167180820
main91671-80820
21 parts on this diagram · 6 diagrams in section
