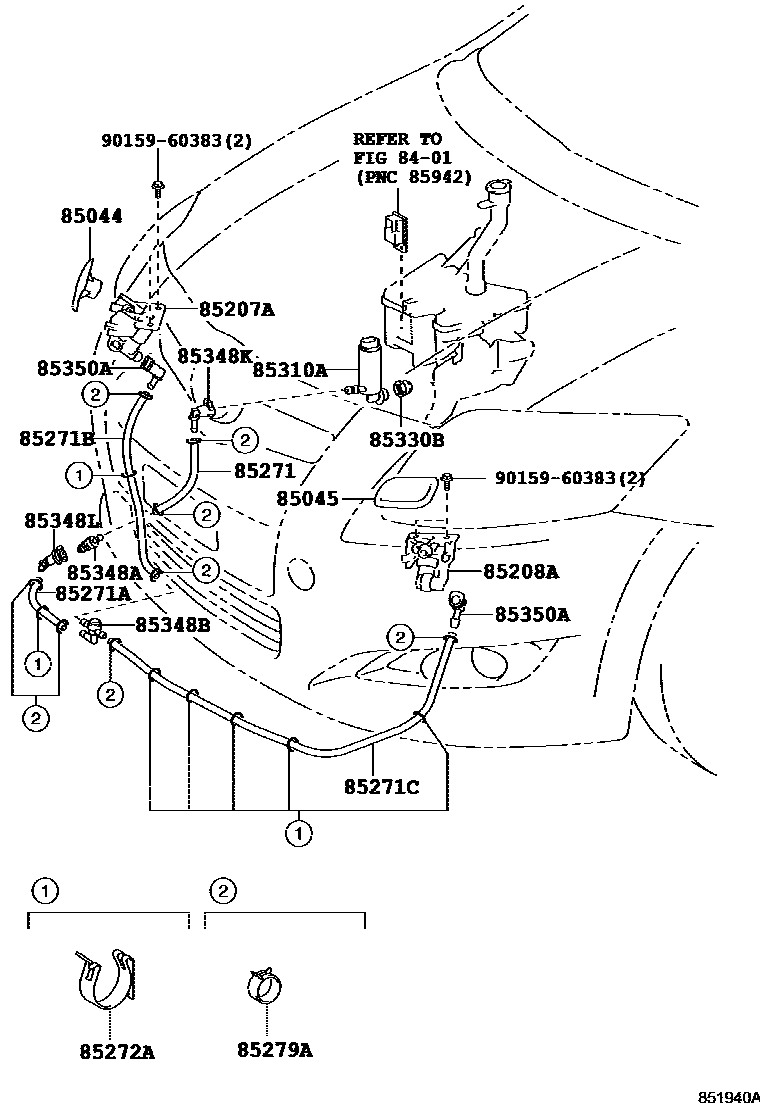

HEADLAMP CLEANER
8401SWITCH & RELAY & COMPUTER
85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH,SUPER WHITE 2,040; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH,SUPER WHITE 2,040
main85044-12110-B0iADE150,ZZE150..LHD;NDE150,ZRE151..LHD..(5F,5FS); ADE150..LHD..SOL;ZRE151..LHD..(5F,5FS)..SOL200610-200901
HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH,SILVER ME.,1C0; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH,SILVERME.,1C0; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH,SILVER ME.,1C0
HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH,GRAY ME.,1G3; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH,GRAY ME.,1G3
HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH,BLACK MC.,209; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH,BLACK MC.,209
main85044-12110-J0iADE150,ZZE150..LHD;NDE150,ZRE151..LHD..(5F,5FS); ADE150..LHD..SOL;ZRE151..LHD..(5F,5FS)..SOL200610-200901
HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH,LT.BLUE M.M.,8S1; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH,LT.BLUEM.M.,8S1; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH,LT.BLUE M.M.,8S1
HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH,DK.BLUEMC.,8S6; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH,DK.BLUE MC.,8S6
main85044-12110-J2iADE150,ZZE150..LHD;NDE150,ZRE151..LHD..(5F,5FS); ADE150..LHD..SOL;ZRE151..LHD..(5F,5FS)..SOL200610-200901
HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH,DK.BLUE ME.,8T8; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH,DK.BLUEME.,8T8; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH,DK.BLUE ME.,8T8
85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
main85045-12070-A0iADE150,ZZE150..LHD;NDE150,ZRE151..LHD..(5F,5FS); ADE150..LHD..SOL;ZRE151..LHD..(5F,5FS)..SOL200610-200901
HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH,SUPER WHITE 2,040; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH,SUPER WHITE 2,040; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH,SUPER WHITE 2,040
main85045-12070-B0iADE150,ZZE150..LHD;NDE150,ZRE151..LHD..(5F,5FS); ADE150..LHD..SOL;ZRE151..LHD..(5F,5FS)..SOL200610-200901
HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH,SILVER ME.,1C0; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH,SILVERME.,1C0; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH,SILVER ME.,1C0
main85045-12070-B1iADE150,ZZE150..LHD;NDE150,ZRE151..LHD..(5F,5FS); ADE150..LHD..SOL;ZRE151..LHD..(5F,5FS)..SOL200610-200901
HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH,GRAY ME.,1G3; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH,GRAY ME.,1G3; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH,GRAY ME.,1G3
main85045-12070-C0iADE150,ZZE150..LHD;NDE150,ZRE151..LHD..(5F,5FS); ADE150..LHD..SOL;ZRE151..LHD..(5F,5FS)..SOL200610-200901
HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH,BLACK MC.,209; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH,BLACK MC.,209; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH,BLACK MC.,209
HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH,LT.BLUEM.M.,8S1; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH,LT.BLUE M.M.,8S1
main85045-12070-J1iADE150,ZZE150..LHD;NDE150,ZRE151..LHD..(5F,5FS); ADE150..LHD..SOL;ZRE151..LHD..(5F,5FS)..SOL200610-200901
HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH,DK.BLUE MC.,8S6; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH,DK.BLUEMC.,8S6; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH,DK.BLUE MC.,8S6
HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH,DK.BLUEME.,8T8; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH,DK.BLUE ME.,8T8
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
main85208-02030iADE150,ZZE150..LHD;NDE150,ZRE151..LHD..(5F,5FS); ADE150..LHD..SOL;ZRE151..LHD..(5F,5FS)..SOL200610-200901
HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH
85271HOSE, HEADLAMP CLEANER, NO.1
*H,L=440,HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH; *H,L=440,HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH
85271AHOSE, HEADLAMP CLEANER, NO.2
L=300,HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH; L=300,HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH; L=300,HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH
85271BHOSE, HEADLAMP CLEANER, NO.3
*H,L=440,HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH; *H,L=440,HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH; *H,L=440,HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH
85271CHOSE, HEADLAMP CLEANER, NO.4
L=1380,HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH; L=1380,HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH; L=1380,HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH
85272ACLAMP, HEADLAMP CLEANER, NO.1
HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH
85279AJOINT, HEADLAMP CLEANER HOSE
HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH
85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
HEADLAMP CLEANER-WITH
85330BBUSH, HEADLAMP CLEANER WASHER JAR
HEADLAMP CLEANER-WITH
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH
85350AJOINT, HEADLAMP CLEANER ELBOW, NO.3
HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH
9015960383
main90159-60383
19 parts on this diagram · 1 diagram in section
