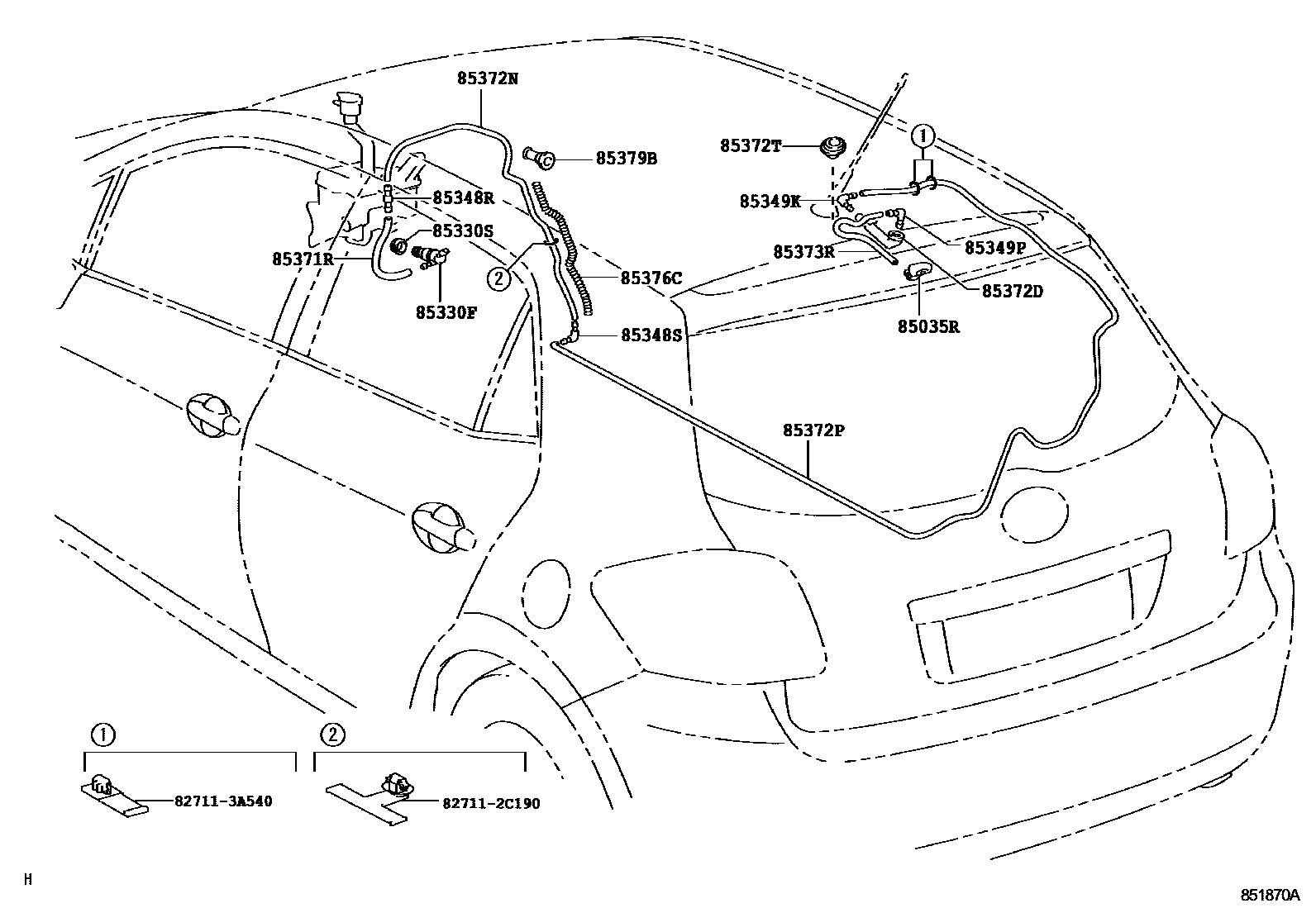

REAR WASHER

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-12070iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-60160iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

main85330-02040iADE150,NRE150,ZRE152..LHD..(DCRL,HTWC,HTWVM);NDE150,ZRE151..LHD..(6F,6FS)..(DCR,DCRL,HTWVM)200809-200910

HEADLAMP CLEANER-WITH

85330SBUSH, REAR WASHER JAR

main85336-60300iNDE150,ZRE151200910-201208

main90069-20005iADE150,NRE150,ZRE152..LHD..(DCRL,HTWC,HTWVM);NDE150,ZRE151..LHD..(6F,6FS)..(DCR,DCRL,HTWVM)200809-200910

HEADLAMP CLEANER-WITH

85348RJOINT, REAR WASHER HOSE, NO.1

main85375-10260iZRE151..SOL200910-201003

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iNDE150,ZRE151,ZZE150200610-200812

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200iNDE150,ZRE151,ZZE150200610-200812

85349PJOINT, REAR WASHER ELBOW, NO.3

main85355-20200iNDE150,ZRE151,ZZE150200610-200812

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-200901

L=1450(*H,L=100)

main90069-16009iADE150,ZZE150..LHD;NDE150,ZRE151..LHD..(5F,5FS)200610-200901

HEADLAMP CLEANER-WITH

85372DGROMMET, REAR WASHER HOSE

main85372-20040iADE150,NDE150,ZRE151,ZZE150200610-200611

main85373-12030iNDE150,ZRE151,ZZE150200611-200812

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iNDE150,ZRE151,ZZE150200610-200812

L=1800(*H,L=1120)

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-33595iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-200901

L=4985(*H,L=3450)

85372TGROMMET, WASHER

main85372-20020iNDE150,ZRE151,ZZE150200610-200812

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iNDE150,ZRE151,ZZE150200610-200812

L=1000(*H,L=190)

85376CSPRING, WASHER HOSE

main85389-12850iNDE150,ZRE151,ZZE150200610-200812

85379BGROMMET, WASHER, A

main85379-12850iNDE150,ZRE151,ZZE150200610-200812

827112C190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C190

827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A540

17 parts on this diagram · 1 diagram in section
