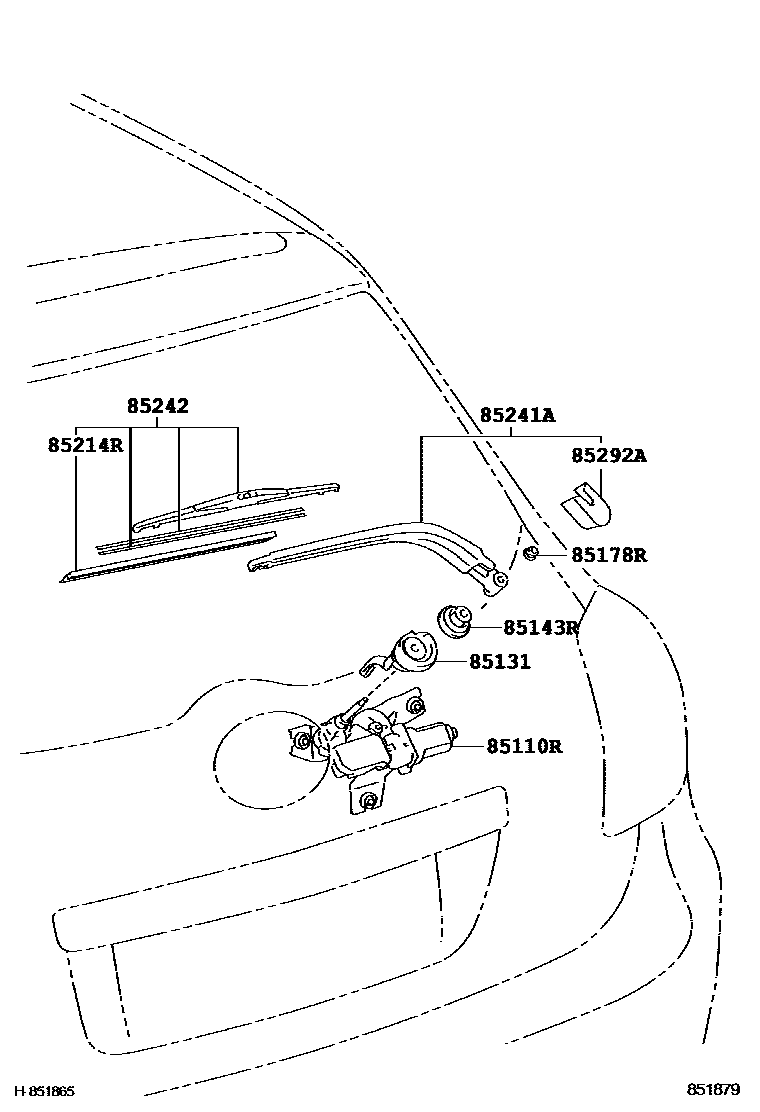

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-12880iNDE150,ZRE151,ZZE150200610-200910

85131COVER, REAR WIPER MOTOR

main85131-12800iNDE150201012

85143RGROMMET, REAR WIPER MOTOR

main85143-12790iNDE150,ZRE151,ZZE150200610-200910

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iNDE150,ZRE151,ZZE150200610-200910

85214RRUBBER, REAR WIPER

main85214-12320iNDE150,ZRE151,ZZE150200610-200910

85241AARM, REAR WIPER

main85241-12100iNDE150,ZRE151,ZZE150200610-200910

85242BLADE, RR WIPER

main85242-12100iNDE150,ZRE151,ZZE150200610-200910

85292ACAP, REAR WIPER ARM HEAD

main85244-13010iNDE150,ZRE151,ZZE150200610-200910

8 parts on this diagram · 1 diagram in section
