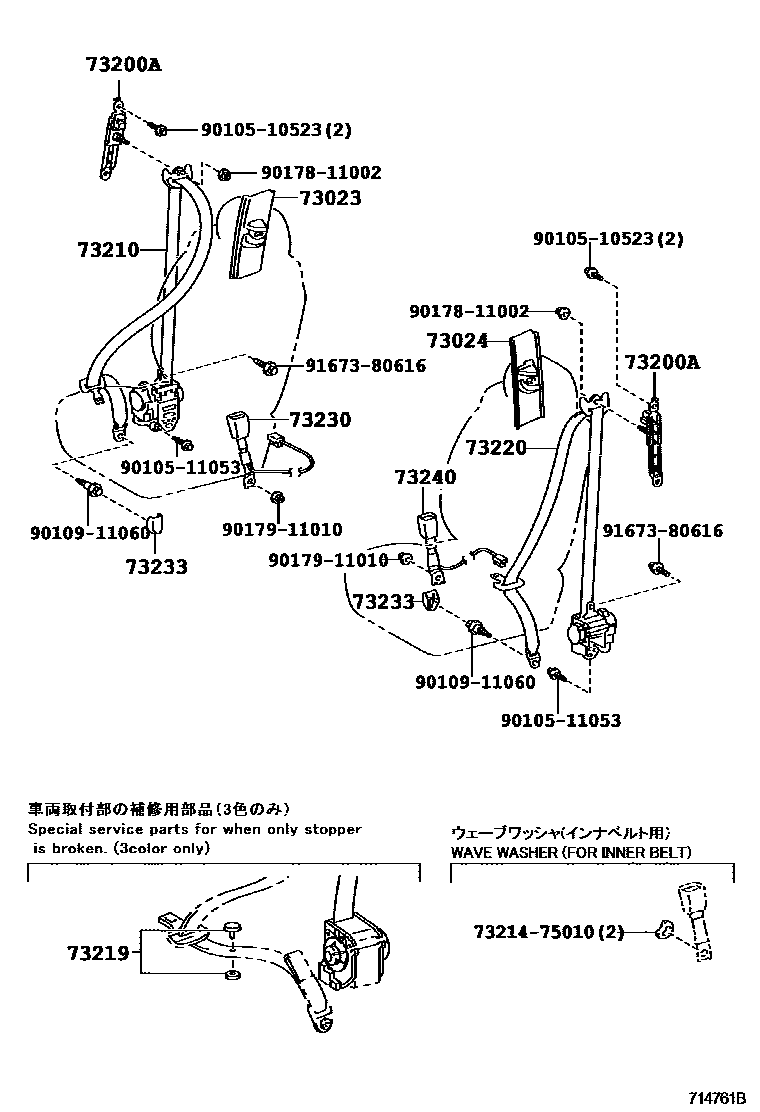

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-12010-B0iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-200901

LT.GRAY,TRIM1#

main73023-12010-E0iNDE150..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200809-200910

GREGE,TRIM4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-12010-B0iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

LT.GRAY,TRIM1#

main73024-12010-E0iADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL200610-200901

GREGE,TRIM4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-53010×2iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-12A70-C2iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-200901

BLACK,TRIM1#

main73210-12A70-E0iNDE150..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200809-200910

GREGE,TRIM4#

main73210-12C30-C1iNDE150,ZRE151200910-201208

BLACK/LT.GRAY,TRIM1#

73219STOPPER, TONGUE PLATE

main73219-33010iZRE151..SOL200910-201003

BLACK

main73219-33020iNDE150,ZRE151..TERRA200910

GRAY

main73219-33030iZRE151..SOL200910-201003

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-12A50-C2iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-200901

BLACK,TRIM1#

main73220-12A50-E0iNDE150..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200809-200910

GREGE,TRIM4#

main73220-12C20-C1iNDE150,ZRE151200910-201208

BLACK/LT.GRAY,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-12770-C0iNDE150200910-201208

BLACK,TRIM1#

main73230-12800-B0iNDE150..RHD..(6F,6FS);ADE150,NRE150,ZRE15#..RHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

DK.GRAY,TRIM1#

main73230-12800-E0iNDE150..RHD..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..RHD..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200809-200910

GREGE,TRIM4#

main73230-12820-B0iNDE150..LHD..(6F,6FS);ADE150,NRE150,ZRE15#..LHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

DK.GRAY,TRIM1#

main73230-12820-E0iNDE150..LHD..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..LHD..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200809-200910

GREGE,TRIM4#

main73230-12A60-C0iZRE151200910-201208

BLACK,TRIM1#

73233COVER, LAP BELT OUTER ANCHOR

main73233-12050-B0×2iADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL; ADE150,ZZE150..TERRA;NDE150,ZRE151..(5F,5FS)..TERRA200610-200901

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

main73233-12050-C0×2iNDE150,ZRE151201204-201208

BLACK,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-12770-C0iZRE151200910-201208

BLACK,TRIM1#

main73230-12800-B0iADE150,ZZE150..LHD;NDE150,ZRE151..LHD..(5F,5FS)200610-200901

DK.GRAY,TRIM1#

main73230-12800-E0iADE150,ZZE150..LHD..SOL;NDE150,ZRE151..LHD..(5F,5FS)..SOL200610-200901

GREGE,TRIM4#

main73230-12820-B0iNDE150..RHD..(6F,6FS);ADE150,NRE150,ZRE15#..RHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

DK.GRAY,TRIM1#

main73230-12820-E0iNDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC)200610-200901

GREGE,TRIM4#

main73230-12A60-C0iNDE150200910-201208

BLACK,TRIM1#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511053

main90105-11053

9010911060

main90109-11060

9017811002

main90178-11002

9017911010

main90179-11010

9167380616

main91673-80616

16 parts on this diagram · 2 diagrams in section
