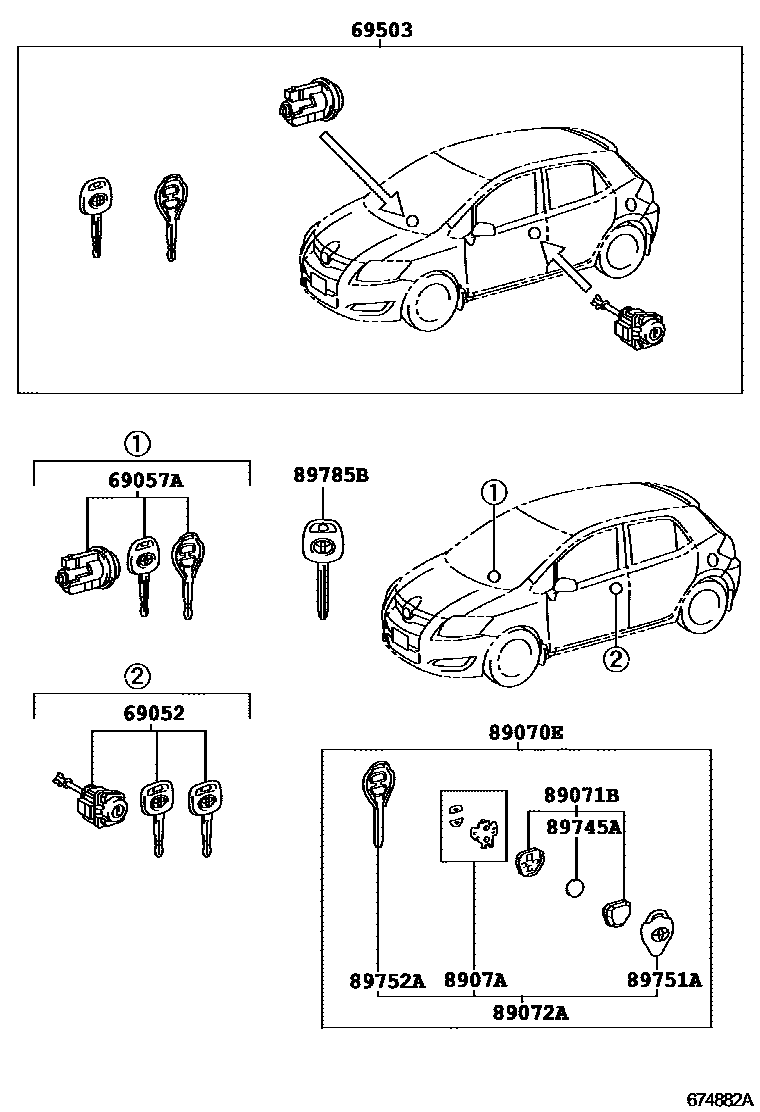

LOCK CYLINDER SET
69052CYLINDER & KEY SET, DOOR LOCK, LH
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
POWER DOOR LOCK-WITH(DOUBLE LOCK)
POWER DOOR LOCK-WITH(DOUBLE LOCK)
69503CYLINDER SET, LOCK
main69005-12B70iNDE150..LHD..(6F,6FS);ADE150,NRE150,ZRE15#..LHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON(SMART ENTRY); POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON(SMART ENTRY)
POWER DOOR LOCK-WITH(DOUBLE LOCK)
POWER DOOR LOCK-WITH(DOUBLE LOCK)
STARTING SYSTEM-PUSH BUTTON(SMART ENTRY)
89070ETRANSMITTER ASSY, DOOR CONTROL
NEW ZEALAND SPEC&STARTING SYSTEM-PUSH BUTTON(SMART ENTRY); STARTING SYSTEM-PUSH BUTTON(SMART ENTRY)
NEW ZEALAND SPEC&STARTING SYSTEM-PUSH BUTTON(SMART ENTRY); STARTING SYSTEM-PUSH BUTTON(SMART ENTRY)
NEW ZEALAND SPEC
NEW ZEALAND SPEC
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
main89071-28201iADE150,NDE150,ZRE151,ZZE150; ADE150,NDE150,ZRE151,ZZE150..RHD; ADE150,ZRE151..RHD; ADE150,ZRE151..SOL; ADE150..RHD200610-200804
NEW ZEALAND SPEC&POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON(SMART ENTRY); NEW ZEALAND SPEC&POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON(SMART ENTRY); POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON(SMART ENTRY); POWER DOOR LOCK-WITH(DOUBLE LOCK); POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON(SMART ENTRY); STARTING SYSTEM-PUSH BUTTON(SMART ENTRY)
main89071-28202iNDE150,ZRE151,ZZE150; NDE150,ZRE151,ZZE150..RHD; ZRE151..RHD; ZRE151..SOL200804-200812
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON(SMART ENTRY); POWER DOOR LOCK-WITH(DOUBLE LOCK); POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON(SMART ENTRY); STARTING SYSTEM-PUSH BUTTON(SMART ENTRY)
NEW ZEALAND SPEC
NEW ZEALAND SPEC; NEW ZEALAND SPEC&POWER DOOR LOCK-WITH(DOUBLE LOCK)
89072AHOUSING SET, DOOR CONTROL TRANSMITTER
8907ASWITCH SET, TRANSMITTER
main8907A-28010iNDE150,ZRE151,ZZE150; NDE150,ZRE151,ZZE150..RHD; ZRE151..RHD; ZRE151..SOL200610-200812
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON(SMART ENTRY); POWER DOOR LOCK-WITH(DOUBLE LOCK); POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON(SMART ENTRY); STARTING SYSTEM-PUSH BUTTON(SMART ENTRY)
89745ABATTERY, TRANSMITTER
main89745-48030iNDE150,ZRE151,ZZE150; NDE150,ZRE151,ZZE150..RHD; ZRE151..RHD; ZRE151..SOL200610-200812
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON(SMART ENTRY); POWER DOOR LOCK-WITH(DOUBLE LOCK); POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON(SMART ENTRY); STARTING SYSTEM-PUSH BUTTON(SMART ENTRY)
89751ACOVER, TRANSMITTER HOUSING
main89751-28070iNDE150,ZRE151,ZZE150; NDE150,ZRE151,ZZE150..RHD; ZRE151..RHD; ZRE151..SOL200610-200812
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON(SMART ENTRY); POWER DOOR LOCK-WITH(DOUBLE LOCK); POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON(SMART ENTRY); STARTING SYSTEM-PUSH BUTTON(SMART ENTRY)
89752ACASE, TRANSMITTER HOUSING
89785BTRANSMITTER, TRANSPONDER KEY MASTER
main89785-60160iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM); NDE150..RHD..(6F,6FS);ADE150,NRE150,ZRE15#..RHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910
POWER DOOR LOCK-WITH(DOUBLE LOCK)
11 parts on this diagram · 4 diagrams in section
