DECK BOARD & DECK TRIM COVER
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
58582DMAT, REAR FLOOR, REAR
N1 PACKAGE&SPARE TIRE-GROUND TIRE(195/65R15),STEEL WHEEL,BLACK,TRIM1#,4#
sub58570-12450
N1 PACKAGE&SPARE TIRE-GROUND TIRE(195/65R15),STEEL WHEEL&LUGGAGE TRAY-WITH(RH & LH),BLACK,TRIM1#
sub58570-12450
N1 PACKAGE&SPARE TIRE-GROUND TIRE(195/65R15),STEEL WHEEL&LUGGAGE TRAY-WITH(RH & LH),BLACK,TRIM1#,4#
sub58570-12450
N1 PACKAGE&LUGGAGE TRAY-WITH(RH & LH & CENTER),BLACK,TRIM1#
sub58570-12450
N1 PACKAGE&LUGGAGE TRAY-WITH(RH & LH & CENTER),BLACK,TRIM1#,4#
sub58570-12450
BLACK,TRIM1#,4#
sub58570-12450
BLACK,TRIM1#
sub58570-12450
N1 PACKAGE,BLACK,TRIM1#
sub58570-12450
N1 PACKAGE,BLACK,TRIM1#,4#
sub58570-12450
N1 PACKAGE&SPARE TIRE-GROUND TIRE(195/65R15),STEEL WHEEL,BLACK,TRIM1#
sub58570-12450
BLACK,TRIM1#,4#
BLACK,TRIM1#
BLACK,TRIM1#
63709BBAND SUB-ASSY, ROOM RACK
main63709-12051-C0iADE150,NRE150,ZRE152..TERRA..(DCRL,HTWC,HTWVM);NDE150,ZRE151..(6F,6FS)..TERRA..(DCR,DCRL,HTWVM)200610-201012
BLACK,TRIM1#
sub63709-02060
main63709-12051-C0iADE150,NRE150,ZRE152..TERRA..(DCRL,HTWC,HTWVM);NDE150,ZRE151..(6F,6FS)..TERRA..(DCR,DCRL,HTWVM)200610-200910
BLACK,TRIM1#,4#
sub63709-02060
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
N1 PACKAGE
PACKAGE TRAY TRIM & TONEAU COVER-WITHOUT
PACKAGE TRAY TRIM & TONEAU COVER-WITHOUT
N1 PACKAGE
64330DPANEL ASSY, PACKAGE TRAY TRIM
N1 PACKAGE,BLACK,TRIM1#
sub64330-12A01
N1 PACKAGE,BLACK,TRIM1#,4#
sub64330-12A01
PACKAGE TRAY TRIM & TONEAU COVER-WITHOUT,BLACK,TRIM1#
sub64330-12A01
PACKAGE TRAY TRIM & TONEAU COVER-WITHOUT,BLACK,TRIM1#,4#
sub64330-12A01
N1 PACKAGE,BLACK,TRIM1#,4#
sub64330-12A02
BLACK,TRIM1#
sub64330-12A02
N1 PACKAGE,BLACK,TRIM1#
sub64330-12A02
BLACK,TRIM1#,4#
sub64330-12A02
BLACK,TRIM1#
64376SPACER, PACKAGE TRAY TRIM, NO.2
N1 PACKAGE
PACKAGE TRAY TRIM & TONEAU COVER-WITHOUT
64716DCOVER, DECK TRIM, REAR
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#,4#
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM1#,4#
BLACK,TRIM1#
64740CPANEL ASSY, DECK TRIM SIDE, LH
main64740-12330-C0iNDE150..(6F,6FS)..TERRA;ADE150,NRE150,ZRE15#..(6F,6FS)..TERRA..(DCRL,HTWC,HTWVM)200610-201208
BLACK,TRIM1#
BLACK,TRIM1#,4#
64745COVER, REAR COMBINATION LAMP SERVICE, RH
DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#
64746COVER, REAR COMBINATION LAMP SERVICE, LH
DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#
64750FCLIP(FOR DECK SIDE TRIM PANEL)
64777JCUSHION, SPARE WHEEL
64993BOX, DECK FLOOR, REAR
main64993-12010
64995BOX, DECK FLOOR, RH
64997BOX, DECK FLOOR, LH
81496AGUIDE, REAR COMBINATION LAMP
9011906840
main90119-06840
9017606036
main90176-06036

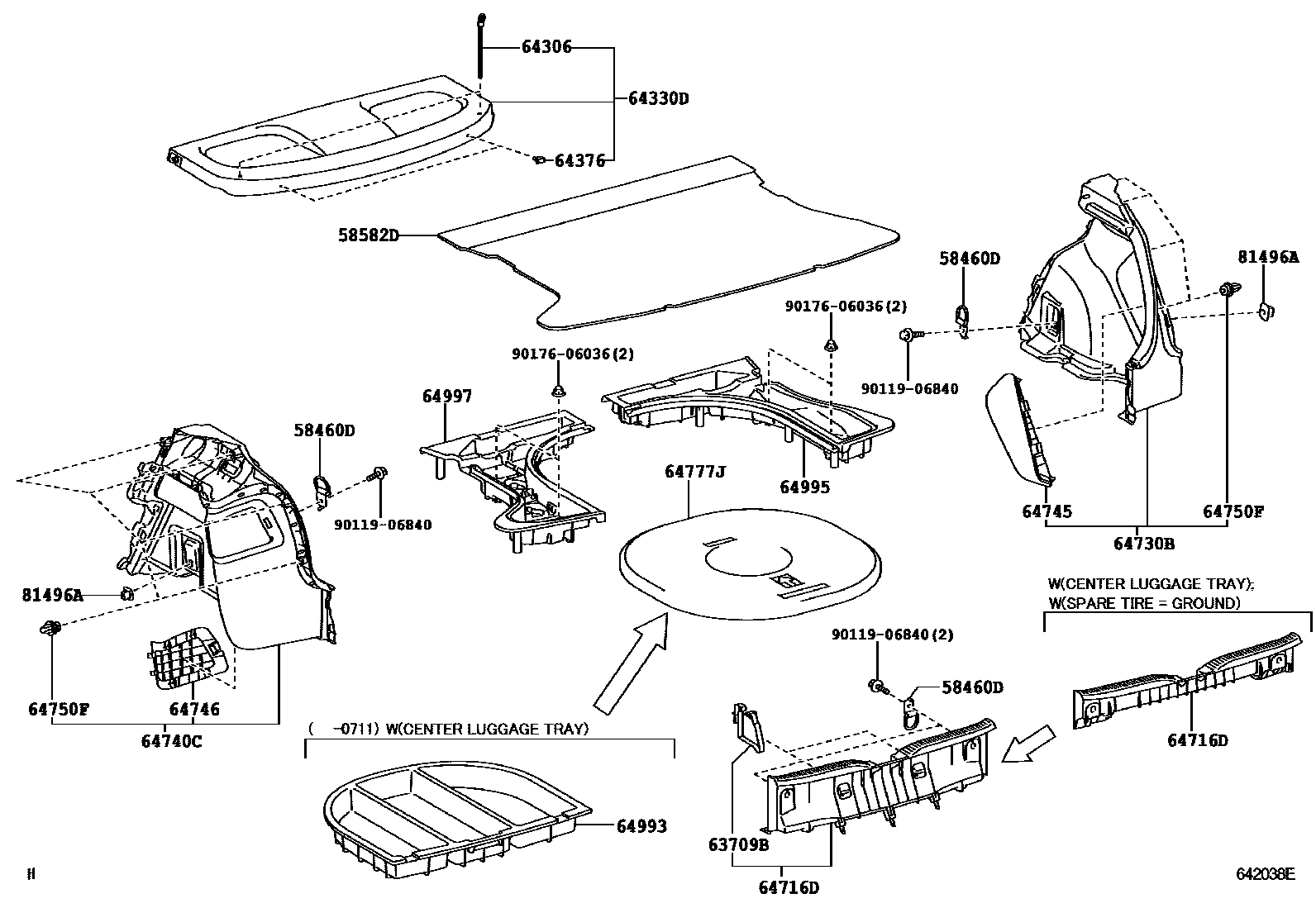

19 parts on this diagram · 1 diagram in section
