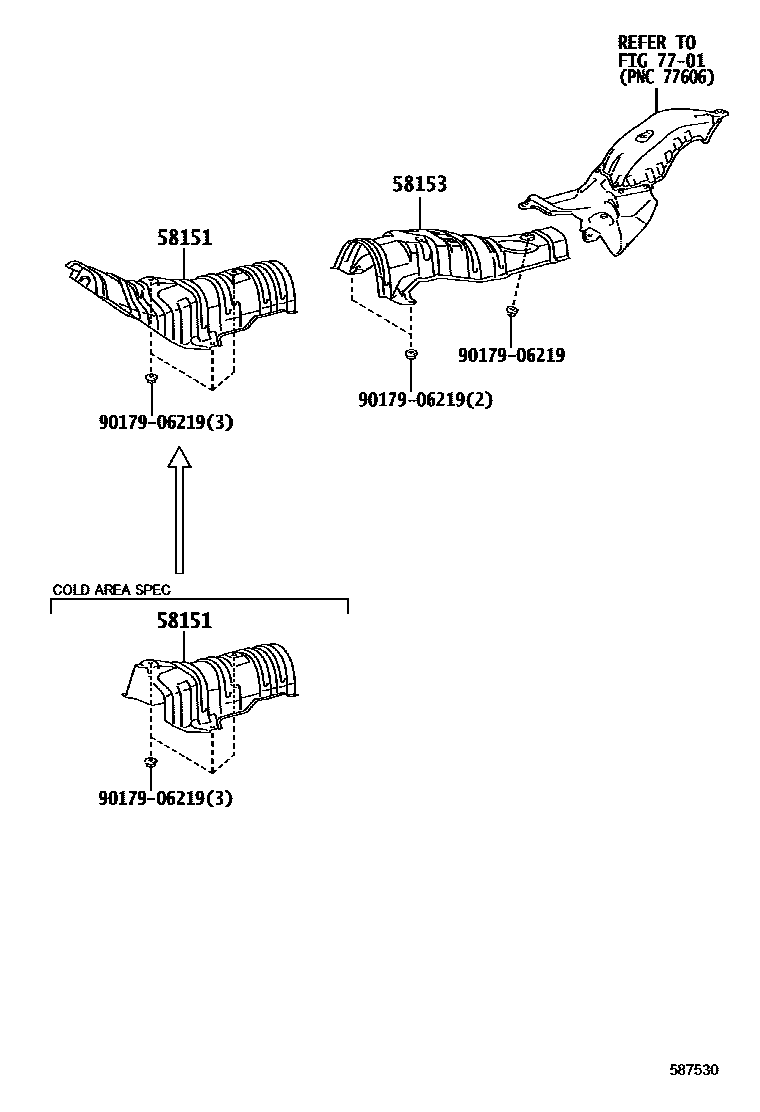

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-12240iADE150,NDE150,ZRE151,ZZE150200610-200801

main58151-12241iNDE150,ZRE151,ZZE150200802-200812

main58151-12310iNDE150,ZRE151..TERRA200910

main58151-12320iNRE150..LHD200809-200910

COLD AREA SPEC

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-12180iADE150,NDE150,ZRE151,ZZE150200610-200804

main58153-12181iNDE150,ZRE151,ZZE150200805-200812

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9017906219

main90179-06219

4 parts on this diagram · 1 diagram in section
