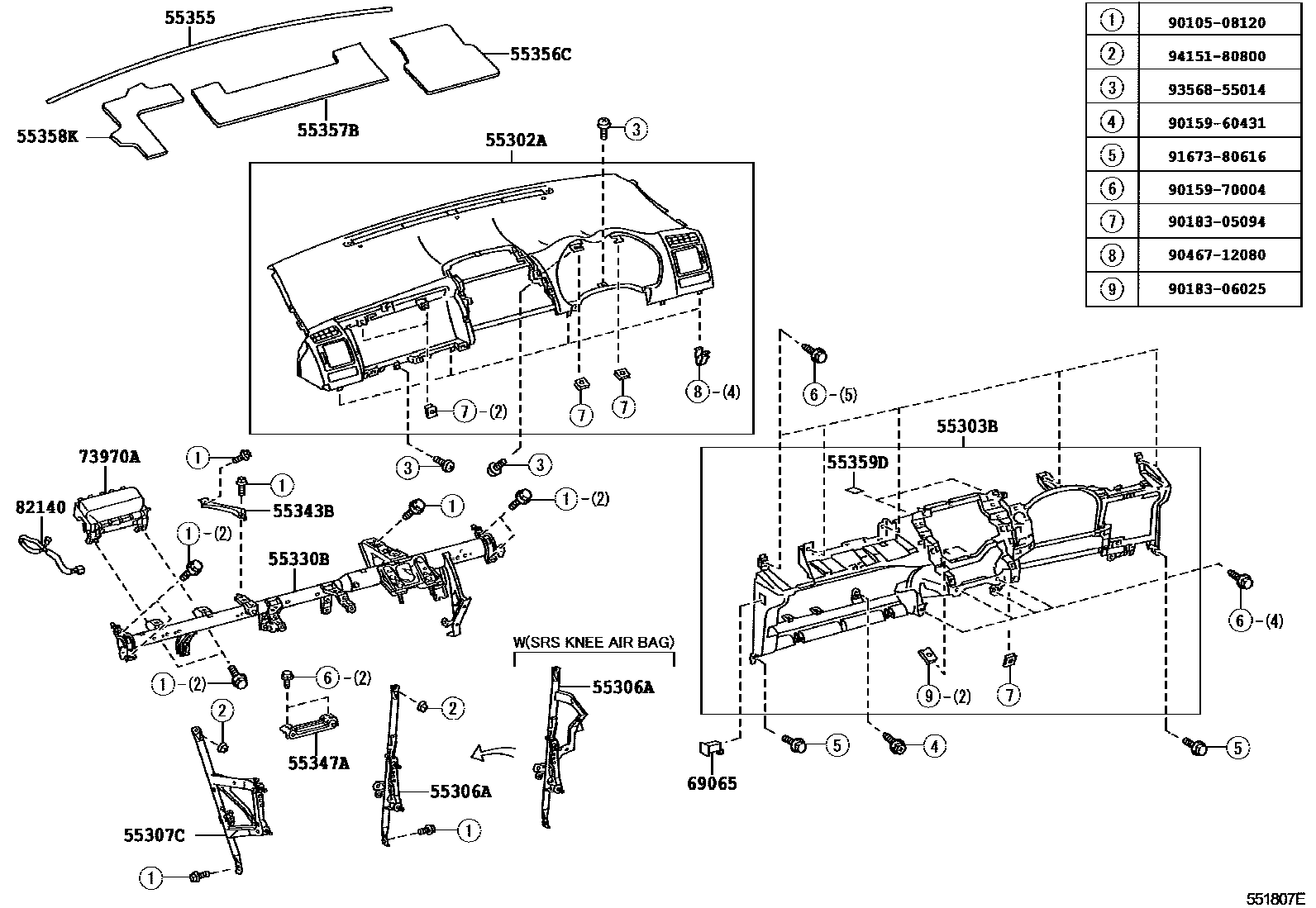

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1DRIVER SIDE 0005 1DRIVER SIDE 0006 1DRIVER SIDE 0007 1CENTER 0008 1CENTER 0009 1CENTER 0010 1CENTER 0011 1PASSENGER SIDE 0012 1PASSENGER SIDE 0013 1PASSENGER SIDE 0014 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-12080-B1iADE150,NDE150,ZRE151,ZZE150..RHD200610-201208

DK.GRAY,TRIM1#

sub55302-12160

main55302-12080-E1iADE150,NDE150,ZRE151,ZZE150..RHD..SOL200610-200804

GREGE,TRIM4#

sub55302-12160

main55302-12100-B1iADE150,NDE150,ZRE151,ZZE150..LHD200610-201208

DK.GRAY,TRIM1#

sub55302-12170

main55302-12100-E1iADE150,NDE150,ZRE151,ZZE150..LHD..SOL200610-200804

GREGE,TRIM4#

sub55302-12170

main55302-12160-B1iNDE150..RHD..(6F,6FS);ADE150,NRE150,ZRE15#..RHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200804-201110

DK.GRAY,TRIM1#

sub55302-12161

sub55302-12160

main55302-12160-E1iNDE150..RHD..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..RHD..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200804-200910

GREGE,TRIM4#

sub55302-12161

sub55302-12160

main55302-12161-B1iNDE150201111-201112

DK.GRAY,TRIM1#

sub55302-12080

main55302-12170-B1iZRE151200804-201110

DK.GRAY,TRIM1#

sub55302-12171

main55302-12170-E1iNDE150..LHD..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..LHD..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200804-200910

GREGE,TRIM4#

sub55302-12171

main55302-12171-B1iZRE151201111-201112

DK.GRAY,TRIM1#

sub55302-12100

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-12330-B0iADE150,NDE150,ZRE151,ZZE150..RHD..SOL200610-201208

DK.GRAY,TRIM1#

main55303-12330-B0iADE150,NDE150,ZRE151,ZZE150..RHD..SOL200610-200804

DK.GRAY,TRIM1#,4#

main55303-12340-B0iADE150,NDE150,ZRE151,ZZE150..LHD..TERRA200610-200804

DK.GRAY,TRIM1#,4#

sub55303-12400

main55303-12340-B0iADE150,NDE150,ZRE151,ZZE150..LHD..TERRA200610-201208

DK.GRAY,TRIM1#

sub55303-12400

main55303-12390-B0iNDE150200804-201110

DK.GRAY,TRIM1#

sub55303-12391

main55303-12390-B0iNDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC)200804-200910

DK.GRAY,TRIM1#,4#

sub55303-12391

main55303-12391-B0iNDE150201111-201112

DK.GRAY,TRIM1#

sub55303-12330

main55303-12400-B0iADE150,ZZE150..LHD..SOL;NDE150,ZRE151..LHD..(5F,5FS)..SOL200804-201003

DK.GRAY,TRIM1#,4#

sub55303-12401

main55303-12400-B0iADE150,ZZE150..LHD..SOL;NDE150,ZRE151..LHD..(5F,5FS)..SOL200804-201110

DK.GRAY,TRIM1#

sub55303-12401

main55303-12401-B0iZRE151201111-201112

DK.GRAY,TRIM1#

sub55303-12340

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-12331iNDE150200910

main55307-12310iADE150,NDE150,ZRE151,ZZE150200610-200706

sub55307-12311

sub55306-12341

sub55307-12301

sub55349-12121

main55307-12311iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200706-200910

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55306-12341iZRE151200910

main55307-12300iADE150,NDE150,ZRE151,ZZE150200610-200706

sub55307-12301

sub55306-12331

sub55307-12311

sub55349-12121

main55307-12301iNDE150,ZRE151,ZZE150200706-200910

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-12660iNDE150200610-201208

main55330-12670iNDE150..LHD..(6F,6FS);ADE150,NRE150,ZRE15#..LHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-201208

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-12070iADE150200610-200910

55347ABRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1

main55349-12120iADE150,NDE150,ZRE151,ZZE150200610-200706

sub55349-12121

sub55306-12331

sub55306-12341

sub55307-12301

sub55307-12311

sub55307-12381

main55349-12121iADE150200706-200904

sub55349-12170

main55349-12170iNDE150,ZRE151200905-200910

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-12090iNDE150,ZRE151,ZZE150..LHD200610-200910

main55355-12130iADE150..RHD200610-200910

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-12090iNDE150,ZRE151,ZZE150200610-200910

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-12080iNDE150,ZRE151,ZZE150200610-200910

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-12070iNDE150,ZRE151200610-200910

55359DCUSHION, INSTRUMENT PANEL, NO.5

main55359-12090iADE150200610-201201

69065CYLINDER SUB-ASSY, AIRBAG CUT OFF SW

main69065-42010iNDE150,ZRE151,ZZE150200610-200912

sub69065-74010

main69065-74010iNDE150,ZRE151..TERRA201001-201003

sub69065-12460

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-12110iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-201003

sub73970-12250

82140WIRE ASSY, INSTRUMENT PANEL

main82140-1A200iZRE151..SOL200610-201003

9010508120

main90105-08120

9015960431

main90159-60431

9015970004

main90159-70004

9018305094

main90183-05094

9018306025

main90183-06025

9046712080

main90467-12080

9167380616

main91673-80616

9356855014

main93568-55014

9415180800

main94151-80800
