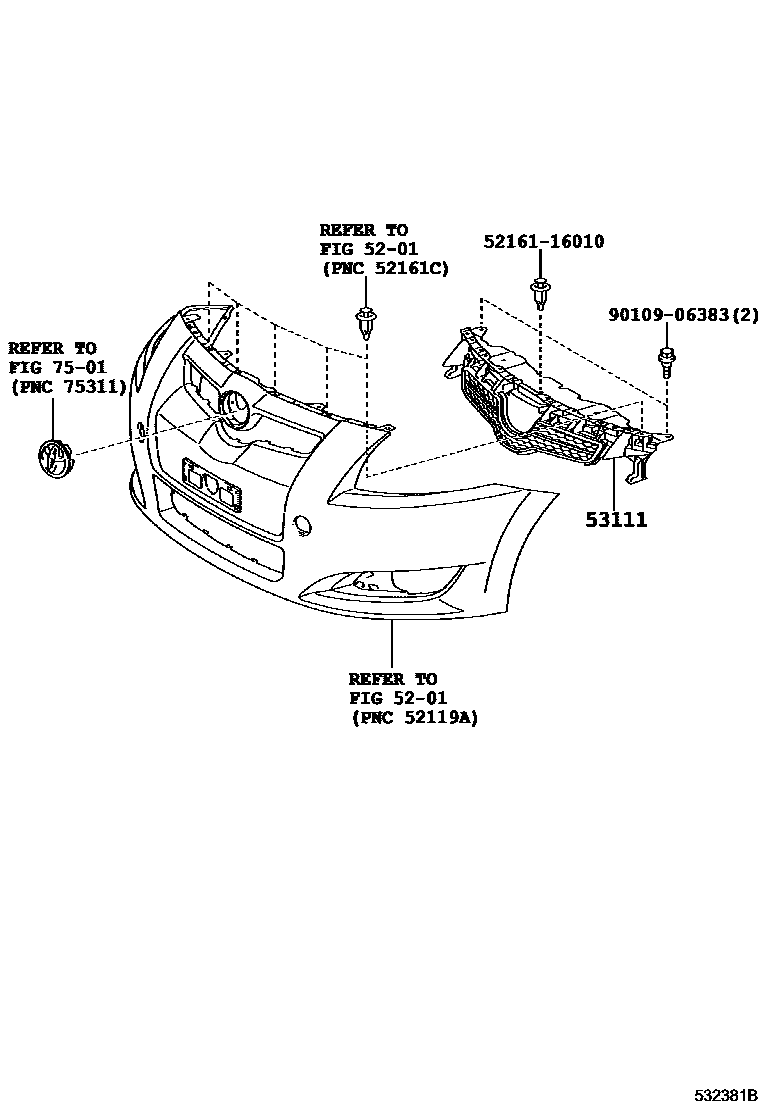

RADIATOR GRILLE

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

53111GRILLE, RADIATOR

main53100-12370-A0iNDE150,ZRE151200910-201208

SUPER WHITE 2,040

main53100-12370-B0iNDE150,ZRE151200910-201208

SILVER ME.,1F7

main53100-12370-B1iNDE150,ZRE151200910-201208

GRAY ME.,1G3

main53100-12370-C0iNDE150,ZRE151200910-201208

BLACK MC.,209

main53100-12370-D0iNDE150,ZRE151200910-201208

RED M.M.,3R3

main53100-12370-J0iNDE150,ZRE151200910-201208

LT.BLUE M.M.,8S1

main53100-12370-J1iNDE150,ZRE151200910-201208

DK.BLUE MC.,8S6

main53100-12370-J3iNDE150,ZRE151200910-201208

BLUE ME.,8T7

main53111-12A00iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

NO PAINT REQ.

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

9010906383

main90109-06383

5 parts on this diagram · 2 diagrams in section
