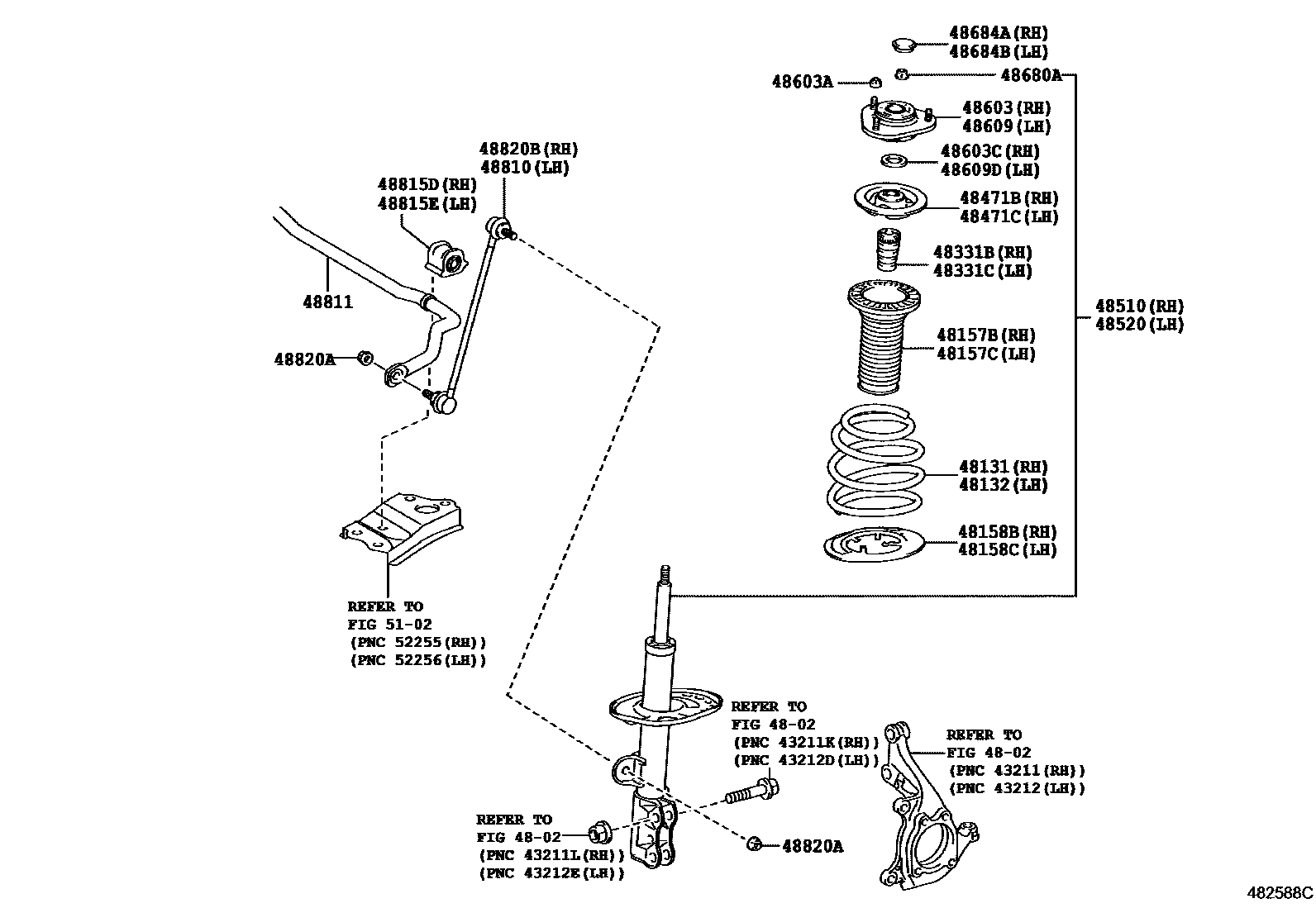

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-12A20iZZE150200610-200910

main48131-12A40iNDE150,ZRE151200610-200910

main48131-12A50iADE150200610-200910

48132SPRING, FRONT COIL, LH

main48131-12A20iZZE150200610-200910

main48131-12A40iNDE150,ZRE151200610-200910

main48131-12A50iADE150200610-200910

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-42030iZRE151..SOL200610-201003

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-42030iNDE150,ZRE151,ZZE150200610-201003

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-12040iNDE150,ZRE151,ZZE150200610-201003

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-12040iNDE150,ZRE151,ZZE150200610-201003

48331BBUMPER, FRONT SPRING, RH

main48331-12220iADE150200610-201003

48331CBUMPER, FRONT SPRING, LH

main48331-12220iNDE150,ZRE151,ZZE150200610-201003

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-42010iNDE150,ZRE151,ZZE150200610-201003

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-42010iNDE150,ZRE151,ZZE150200610-201003

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80332iADE150200610-200803

MARK 48510-12B70

sub48510-80459

main48510-80333iNDE150200610-200803

MARK 48510-12B60

sub48510-80458

main48510-80334iZRE151,ZZE150200610-200803

MARK 48510-12B40

sub48510-80457

main48510-80457iZRE151,ZZE150200803-201208

MARK 48510-12B41

main48510-80458iNDE150200803-201208

MARK 48510-12B61

main48510-80459iADE150200803-200910

MARK 48510-12B71

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80106iADE150200610-200803

MARK 48520-12A70

sub48520-80202

main48520-80107iNDE150200610-200803

MARK 48520-12A60

sub48520-80201

main48520-80108iZRE151,ZZE150200610-200803

MARK 48520-12A40

sub48520-80200

main48520-80200iZRE151,ZZE150200803-201208

MARK 48520-12A41

main48520-80201iNDE150200803-201208

MARK 48520-12A61

main48520-80202iADE150200803-200910

MARK 48520-12A71

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-12500iNDE150,NRE150,ZRE15#..6F,6FS200610-201001

sub48609-12570

main48609-12510iADE150200610-200910

sub48609-12580

main48609-12570iZRE151..SOL201002-201003

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10030iNDE150,ZRE151,ZZE150200610-201003

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22002iNDE150,ZRE151..TERRA200610-201003

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-12500iNDE150,ZRE151,ZZE150200610-201001

sub48609-12570

main48609-12510iADE150200610-200910

sub48609-12580

main48609-12570iZRE151..SOL201002-201003

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22002iADE150200610-201003

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90179-14015iNDE150,ZRE151,ZZE150200610-201003

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-52010iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-201003

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-52010iNDE150,ZRE151,ZZE150200610-201003

48810LINK ASSY, FRONT STABILIZER, LH

main48820-42030iNDE150,ZRE151,ZZE150200610-201003

48811BAR, STABILIZER, FRONT

main48811-12A10iNDE150,ZRE151,ZZE150200610-201003

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-12390iNDE150,ZRE151,ZZE150200610-201003

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-12370iNDE150,ZRE151,ZZE150200610-201003

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-12151iNDE150,ZRE151,ZZE150200610-201003

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-42030iNDE150,ZRE151,ZZE150200610-201003

5102

28 parts on this diagram · 1 diagram in section
