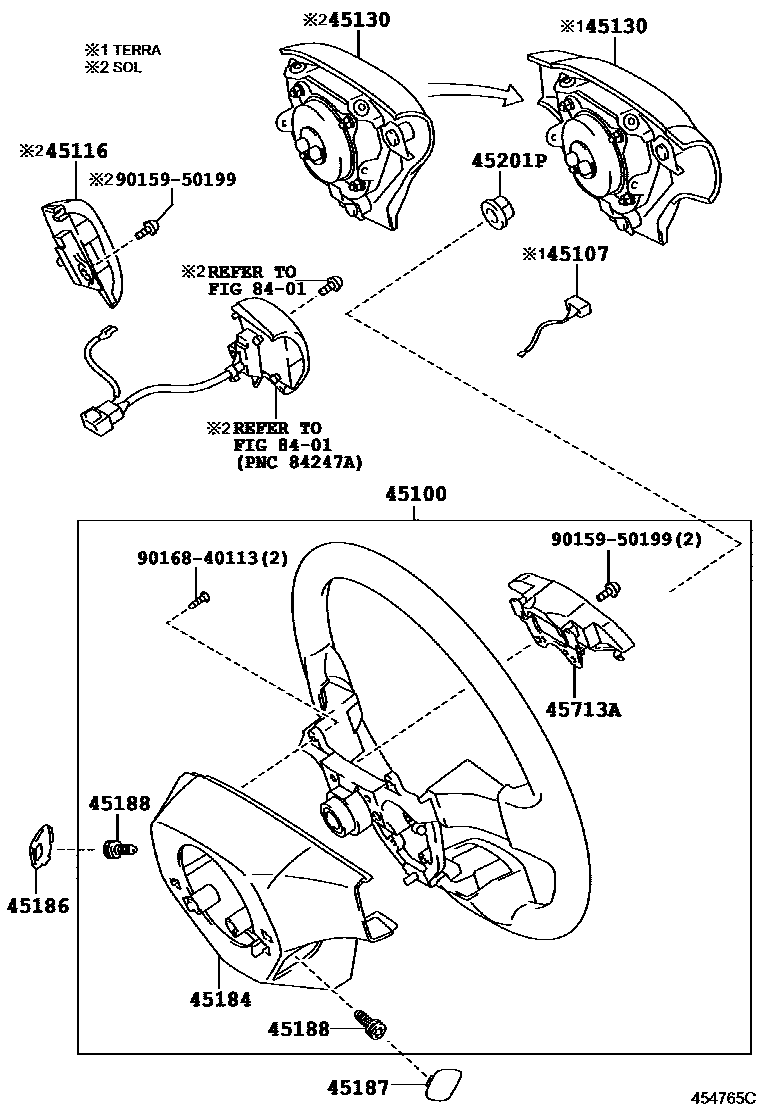

STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,URETHANE,DK.GRAY,TRIM1#
3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4#
3-SPOKE,URETHANE,DK.GRAY,TRIM1#
3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4#
3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4#
3-SPOKE,URETHANE,STEERING SWITCH-MULTI INFORMATION DISPLAY,DK.GRAY,TRIM1#
45107WIRE SUB-ASSY, HORN BUTTON
45116ORNAMENT, STEERING WHEEL, NO.1
45130BUTTON ASSY, HORN
main45130-12B40-B0iNDE150..(6F,6FS)..TERRA;ADE150,NRE150,ZRE15#..(6F,6FS)..TERRA..(DCRL,HTWC,HTWVM)200809-200910
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#
45184COVER, STEERING WHEEL BOSS, LOWER
main45184-12340-B0iADE150,ZZE150..SOL;NDE150,ZRE151..5F..SOL; ADE150,ZZE150..TERRA;NDE150,ZRE151..5F..TERRA200610-200901
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#
45186COVER, STEERING WHEEL, LOWER NO.2
main45186-12020-B0iADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL; ADE150,ZZE150..TERRA;NDE150,ZRE151..(5F,5FS)..TERRA200610-200901
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#
CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4#
CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4#
45187COVER, STEERING WHEEL, LOWER NO.3
main45187-12020-B0iNDE150..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM); NDE150..(6F,6FS)..TERRA;ADE150,NRE150,ZRE15#..(6F,6FS)..TERRA..(DCRL,HTWC,HTWVM)200809-200910
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#,4#
45188SCREW, STEERING WHEEL PAD ATTACHING
L=18
45201PNUT, STEERING WHEEL SET
45713ADAMPER, STEERING SHAKE
8401SWITCH & RELAY & COMPUTER
9015950199
main90159-50199
9016840113
main90168-40113
13 parts on this diagram · 3 diagrams in section
