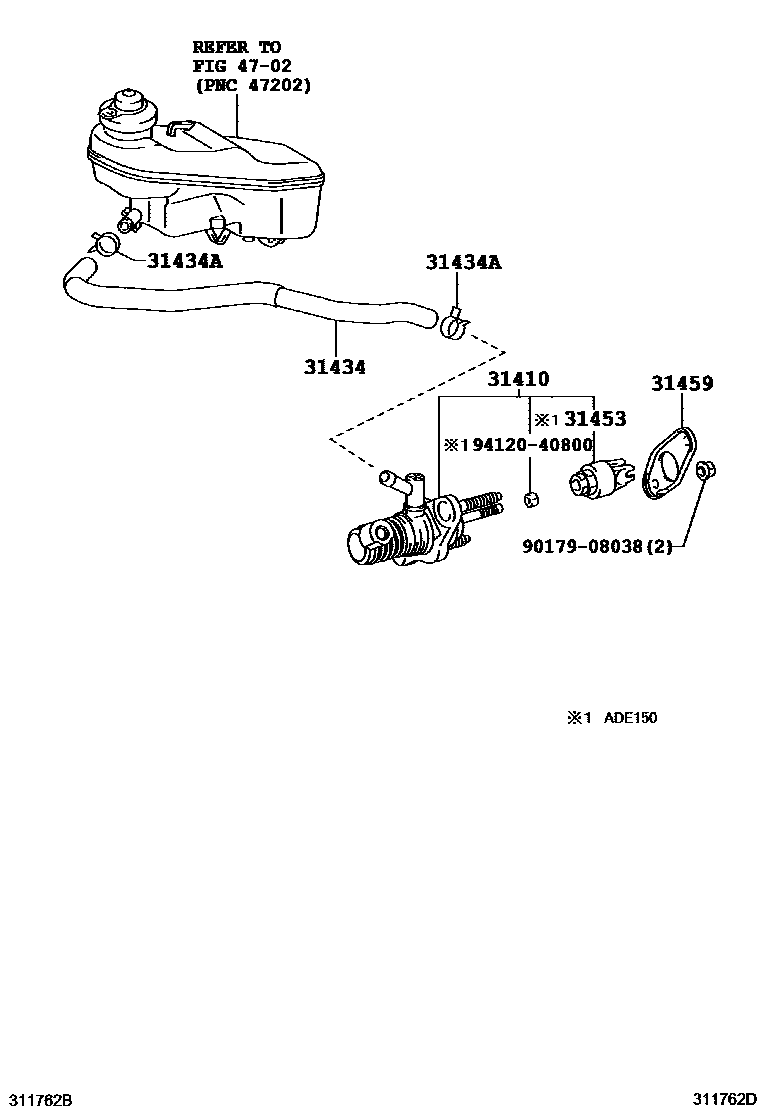

CLUTCH MASTER CYLINDER

0001 1 0002 1

31410CYLINDER ASSY, CLUTCH MASTER

main31420-12030iNDE150,ZRE151,ZZE150..LHD..5F200610-200812

main31420-12050iNDE150200910-201208

main31420-12060iADE150..RHD200901-200910

main31420-52050iADE150..LHD200901-200910

31434TUBE, CLUTCH RESERVOIR

main31434-12100iZRE151,ZZE150..LHD..5F200610-200812

main31434-12101iZRE151201007-201201

main31434-12110iZRE151,ZZE150..RHD..5F200610-200812

main31434-12120iADE150..LHD200610-200901

main31434-12130iNDE150201201

main31434-12131iNDE150201104-201201

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96136-41501×2iZRE151201007-201201

main96136-41801×2iNDE150..6F;ADE150,NRE150,ZRE15#..6F..(DCRL,HTWC,HTWVM)200809-200910

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31453-52010iADE150..LHD200610-200901

31459BRACKET, CLUTCH MASTER CYLINDER

main31459-42040iNDE150,ZRE151,ZZE150..5F200610-200812

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9017908038

main90179-08038

9412040800

main94120-40800

8 parts on this diagram · 2 diagrams in section
