RADIATOR & WATER OUTLET

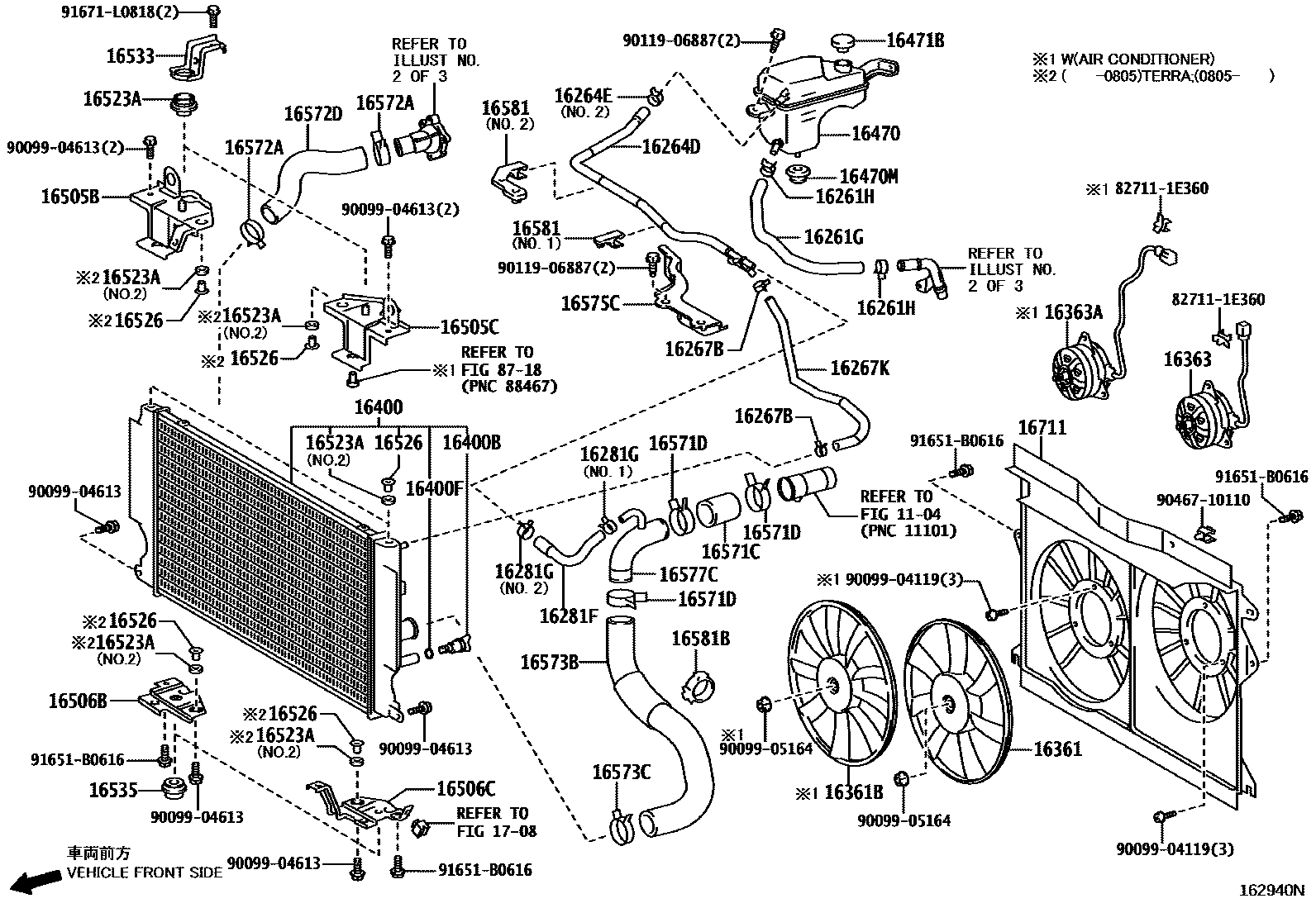

Parts diagram
1104
16261HOSE, WATER BY-PASS
main16261-0D040i200610-200812
(L)
main16261-0R020i200610-200802
main16261-0R081i200802-200910
main16261-22100i200610-200812
(J)
main16261-33050i200812-200910
main16261-37020i200610-200705
main16261-37021i200705-201101
sub16261-37022
main16261-37022i201101
main16261-37051i200812-200910
sub16261-37052
main16261-47010i200809-200910
16261GHOSE, WATER BY-PASS, NO.1
main16261-26030i200610-200910
main16261-33030i200610-200812
main16261-47020i200809-200910
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
main96136-42901i200809-200910
main96136-52501i200610-200910
16264HOSE, WATER BY-PASS, NO.2
main16264-0D030i200610-200812
(L)
main16264-22110i200610-200812
(J)
main16264-26020i200610-200805
main16264-26080i200805-200910
main16264-33030i200812-200910
main16264-37020i200610-200705
main16264-37021i200705-201101
sub16264-37022
main16264-37022i201101
main16264-37041i200812-200910
sub16264-37042
16264DHOSE, WATER BY-PASS, NO.2
main16264-21090i200610-200910
main16264-33020i200610-200812
16264ECLIP(FOR WATER BY-PASS HOSE NO.2)
main90467-15022i200812-201208
NO.1
main96136-42101i201207-201208
NO.2
main96136-52101i200610-200910
main96136-52101i200812-201206
NO.2
16267HOSE, WATER BY-PASS, NO.3
main16267-26020i200610-200805
main16267-26021i200805-200910
main16267-33010i200610-200812
main16267-33030i200812-200910
main16267-37010i200610-200910
16267BCLIP(FOR WATER BY-PASS HOSE)
main90467-15022i200610-200910
16267KHOSE, WATER BY-PASS, NO.3
main16267-0N040i200812-200910
AIR CONDITIONER-MANUAL AIR CONDITIONER
main16267-0N040i200910
main16267-0R040i200901-200910
AIR CONDITIONER-MANUAL AIR CONDITIONER
main16267-26040i200610-200901
AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)
16281HOSE, WATER BY-PASS, NO.4
main16281-0R010i200610-200910
PNC 16321=ALUMINUM
main16281-0R030i200610-200910
PNC 16321=PLASTIC
main16281-33030i200812-200910
16281FHOSE, WATER BY-PASS, NO.5
main16281-22080i200610-200812
main16281-26010i200610-200901
main16281-33010i200610-200703
sub16281-33011
main16281-33011i200704-200812
main16281-33040i200812-200910
main16281-37040i200809-201003
16281GCLIP(FOR WATER BY-PASS HOSE NO.5)
main90467-15022i200809-200910
NO.3
main90467-15022i200610-201208
NO.1
main90467-17013i200610-201208
NO.1
main96136-41901i201207-201208
NO.2
main96136-51901i200610-201206
NO.2
16361FAN
main16361-0N040i200610-201208
main16361-0R020i200610-200910
main16361-22100i200610-201208
16361BFAN, NO.2
main16361-0R030i200610-200901
AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)
main16361-0R030i200901-200910
AIR CONDITIONER-MANUAL AIR CONDITIONER
16363MOTOR, COOLING FAN
main16363-0N020i200610-201007
main16363-0R020i200610-200910
main16363-22120i200610-201208
main16363-33050i201008-201208
16363AMOTOR, COOLING FAN, NO.2
main16363-0R030i200610-200901
AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)
main16363-0R030i200901-200910
AIR CONDITIONER-MANUAL AIR CONDITIONER
16400RADIATOR ASSY
main16400-0N060i201012-201208
MARK 0N06
main16400-0N060i200610-201012
main16400-0R030i200610-200910
main16400-22160i200610-201208
main16400-33090i201012-201208
MARK 3309
16400BPLUG, RADIATOR DRAIN COCK
main16417-0Q040i200910-201012
AIR CONDITIONER-MANUAL AIR CONDITIONER,(L)
main16417-0Q040i200610-200910
main16417-0Q040i201012-201208
(L)
main16417-21280i201012-201208
(J)
main16417-21280i200610-201208
16400FPACKING(FOR RADIATOR DRAIN COCK)
main16492-21050i200610-201208
16470TANK ASSY, RADIATOR RESERVE
main16480-22080i200610-201003
main16480-26030i200610-200910
16470MGROMMET
main90480-18010i200610-200910
16471BCAP, RESERVE TANK
main16475-28120i200610-200803
sub16475-51010
main16475-51010i200804-201208
sub16475-28140
16505BSUPPORT SUB-ASSY, RADIATOR, UPPER RH
main16505-0R020i200610-200910
16505CSUPPORT SUB-ASSY, RADIATOR, UPPER LH
main16505-0R010i200610-200910
16506BSUPPORT SUB-ASSY, RADIATOR, LOWER RH
main16506-0R020i200610-200901
main16506-0R070i200901-200910
16506CSUPPORT SUB-ASSY, RADIATOR, LOWER LH
main16506-0R010i200610-200910
16523ACUSHION, RADIATOR SUPPORT
main16523-0R020i200610-200901
AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION),NO.2
main16523-0R020i200610-200910
NO.2
main16523-21060i200610-201003
main16523-28030i200610-200910
NO.1
16526HOLDER, RADIATOR SUPPORT
main16526-0R010i200610-200901
AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)
main16526-0R010i200610-200910
16533SUPPORT, RADIATOR, UPPER
main16533-26050i200610-200910
16535SUPPORT, RADIATOR, LOWER
main16535-0R050i200901-200910
main16535-20030i200610-200901
main16535-74230i200610-201003
16571HOSE, RADIATOR, INLET
main16571-33060i200610-200812
16571CHOSE, RADIATOR, NO.1
main16571-22180i200610-200812
main16571-22190i200610-201208
main16571-26140i200610-200901
main16571-26151i200901-200910
main16571-33080i200812-201208
main16571-47050i200809-200910
16571DCLIP, RADIATOR HOSE, NO.1
main96136-54801i200610-200910
16572HOSE, RADIATOR, OUTLET
main16572-33020i200610-200812
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
main96136-43901i200610-200910
NO.2
main96136-44301i200610-200910
NO.1
main96136-44301i200812-201003
main96136-54801i200610-200910
16572DHOSE, RADIATOR, NO.2
main16572-22120i200610-200812
main16572-22130i200610-201003
main16572-26070i200901-200910
main16572-26090i200610-200901
main16572-33060i200812-200910
main16572-47040i200809-200910
16573BHOSE, RADIATOR, NO.3
main16573-22020i200610-200812
main16573-26030i200610-200901
main16573-33010i200610-200812
main16573-33020i200812-200910
main16573-37040i200809-201003
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
main90466-35001i200610-201003
NO.1
main90467-33006i200610-200910
NO.1
main96136-44301i200610-201003
NO.2
main96136-44301i200809-200908
NO.1
main96136-54801i200610-200901
16575CBRACKET, WATER HOSE CLAMP, NO.1
main16575-22020i200610-200906
main16575-37020i200907-201003
16577CPIPE, RADIATOR
main16577-22020i200610-200812
main16577-26040i200610-200901
main16577-33020i200610-200910
main16577-37030i200809-201003
16581CLAMP, HOSE(FOR WATER HOSE)
main16581-22110i200610-201208
NO.1
main16581-22120i200610-201208
NO.2
16581BCLAMP, HOSE(FOR RADIATOR HOSE)
main16581-22110i200610-201003
NO.1
main16581-22120i200610-201003
NO.2
main16581-26040i200610-200901
main16581-28070i200901-200910
main16581-33020i200812-200910
NO.1
main16581-33100i200812-200910
NO.2
16711SHROUD, FAN
main16711-0N040i200610-201104
sub16711-0N041
main16711-0N041i201105-201208
main16711-0R020i200610-200901
main16711-0R060i200901-200910
main16711-22150i200610-201208
1708
8718
827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E360
9009904119
main90099-04119
9009904613
main90099-04613
9009905164
main90099-05164
9011906887
main90119-06887
9046710110
main90467-10110
91651B0616
main91651-B0616
91671L0818
main91671-L0818

54 parts on this diagram · 18 diagrams in section
