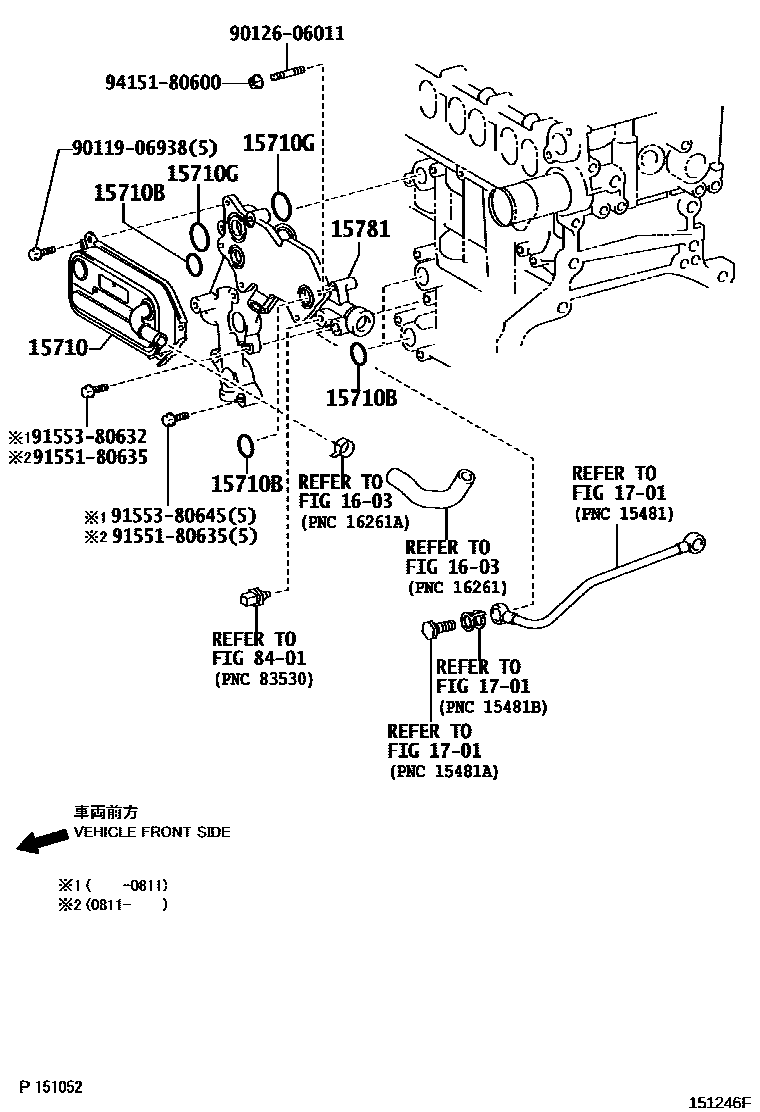

ENGINE OIL COOLER

0001 1 0002 1 0003 1

15710COOLER ASSY, OIL

main15710-0R010i1ADFTV..ADE150200901-200910

main15710-33030i1NDTV..NDE150200610-200812

main15710-33050i1NDTV..NDE150200910

15710BRING, O(FOR OIL COOLER)

main90301-24018×4i1ADFTV..ADE150200610-200901

main90301-58002i1NDTV..NDE150200610-200812

main96723-35024×2i1NDTV..NDE150200812-200910

15710GRING, O, NO.2

main90301-29013×2i1ADFTV..ADE150200901-200910

15781BRACKET, OIL COOLER, NO.1

main15781-26010i1ADFTV..ADE150200610-200611

main15781-26011i1ADFTV..ADE150200611-200811

main15781-26030i1ADFTV..ADE150200811-200901

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906938

main90119-06938

9012606011

main90126-06011

9155180635

main91551-80635

9155380632

main91553-80632

9155380645

main91553-80645

9415180600

main94151-80600

13 parts on this diagram · 3 diagrams in section
