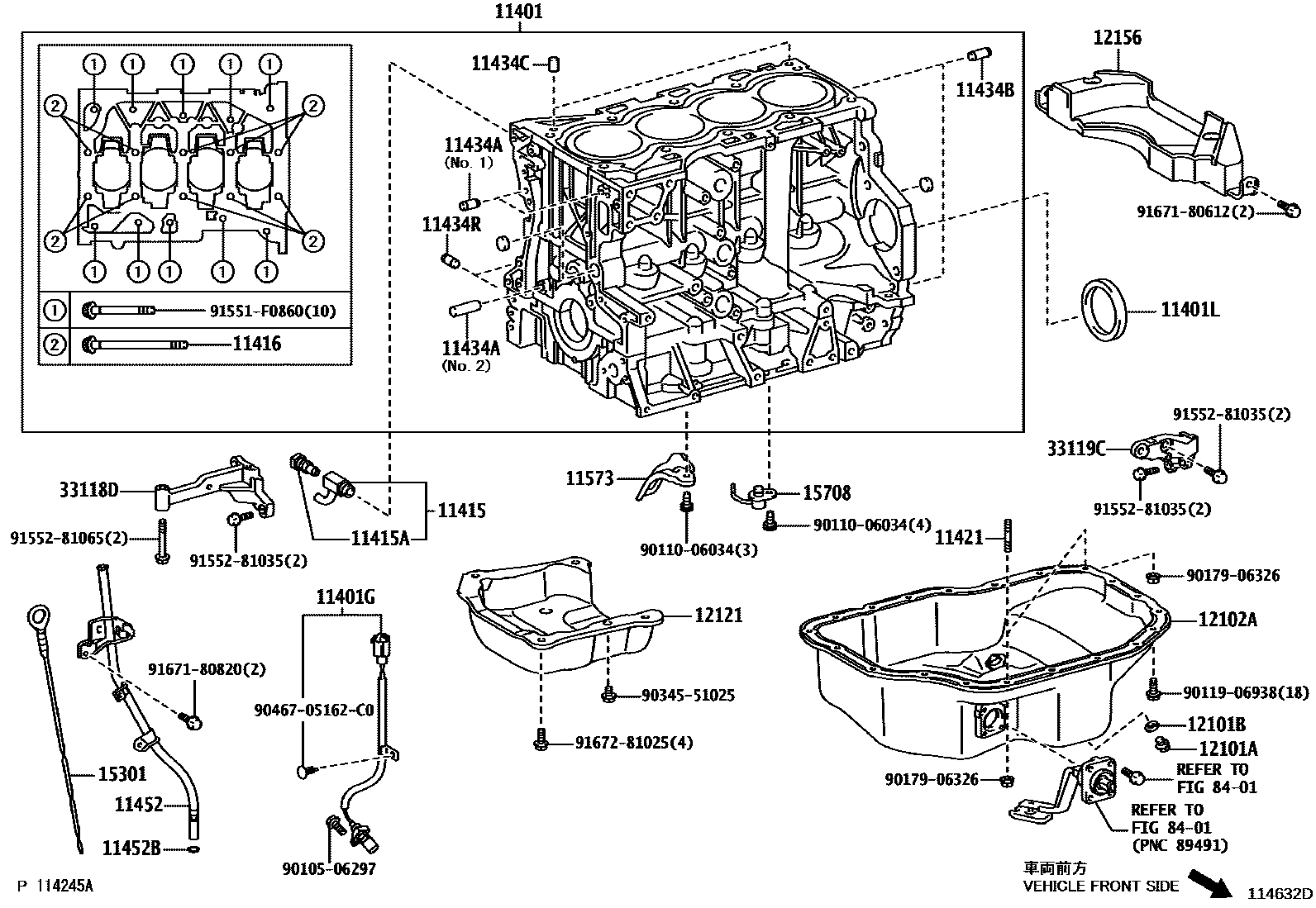

11401BLOCK SUB-ASSY, CYLINDER

main11401-39716i200610-200812

main11410-29145i200610-200808

sub11410-29146

sub16258-28030

sub16268-22101

main11410-29146i200808-200812

main11410-29355i200610-200801

sub11410-29395

main11410-29395i200801-200808

sub11410-29405

sub11410-29415

main11410-29405i200808-200910

sub11410-29406

main11410-39015i200610-200801

sub11410-39045

main11410-39045i200801-200904

sub11410-39047

main11410-39047i200904-200910

sub11410-39235

main11410-39048i200910-201008

sub11410-39047

main11410-39055i200812-200904

sub11410-39057

main11410-39057i200904-200910

sub11410-39245

main11410-39085i200812-201208

sub11410-39155

main11410-49015i200809-200909

sub11410-49016

main11410-49016i200909-200910

sub11410-49017

11401GSENSOR, CRANK POSITION

main90919-05063i200610-200910

main90919-05069i200610-200910

main90919-05070i200610-200910

main90919-05074i200812-200910

11401LSEAL, ENGINE REAR OIL

main90311-75016i200610-200812

sub90311-75019

main90311-75017i200812-201208

sub90311-75020

main90311-76001i200610-200812

sub90311-76003

main90311-76002i200610-201208

main90311-78003i200809-200910

sub90311-78005

main90311-90009i200809-200910

(J)

main90311-90009i200807-200809

main90311-W0006i200610-200807

sub90311-W0010

main90311-W0010i200809-200910

(L)

sub90311-W0020

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09075i200610-200704

sub90910-09129

main90910-09107i200610-200812

main90910-09129i200610-201002

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i200610-201002

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02147i200610-200812

sub90910-02183

main90910-02154i200812-201208

main90910-02157i200610-200910

main90910-02163i200610-200910

main90910-02175i200809-200910

main91511-K0840i200610-200812

11421BOLT, STUD(FOR OIL PAN)

main90116-06134i200610-200910

main90126-06010i200610-200812

main90126-06015i200610-201006

main90126-06028i201006-201208

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097i200610-200910

L=12,OD=4.0

main90250-08120i200610-200910

L=18,OD=8,NO.1

main90250-08120i200812-200910

L=18,OD=8

main90250-10030i200610-200910

L=36,OD=10,NO.2

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113i200610-200910

L=22,OD=10

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-04097i200610-200910

L=12,OD=4.0

main90250-08074i200610-200910

L=15,OD=8

main90250-08120i200610-200910

L=18,OD=8

11434RPIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET)

main90250-08120i200610-200910

11452GUIDE, OIL LEVEL GAGE

main11409-47010i200809-200910

main11452-22030i200610-200808

sub11452-22031

sub11459-22010

main11452-22031i200808-200812

main11452-26030i200901-200910

main11452-26050i200610-200901

main11452-33040i200610-200812

main11452-37010i200610-201101

sub11452-37011

main11452-37011i201101

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i200610-200910

main96741-19010i200610-200910

11573PLATE, OIL REFLECTOR

main11573-26010i200610-200910

12101PAN SUB-ASSY, OIL

main12101-22024i200610-200812

main12101-33030i200610-200812

main12101-33040i200812-200910

main12101-47061i200809-200910

sub12101-47120

sub12121-B1060

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i200610-200910

main90341-12032i200809-200910

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i200610-200910

12102APAN SUB-ASSY, OIL, NO.2

main12102-0R010i200610-200901

sub12102-0R011

main12102-0R020i200901-200908

sub12102-0R021

main12102-0R021i200908-200910

sub12102-0R022

main12102-21010i200610-200812

main12102-33010i200812-200910

main12102-37010i200610-201208

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-26020i200610-200910

main12121-47011i200809-200910

12156INSULATOR, OIL PAN

main12156-0R010i200610-200901

main12156-0R020i200901-200910

15301GAGE SUB-ASSY, OIL LEVEL

main15301-22050i200610-200812

main15301-26060i200610-200901

main15301-26080i200901-200910

main15301-33020i200610-200812

main15301-33050i200812-200910

main15301-37010i200610-201208

main15301-47020i200809-200910

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-0R010i200610-200910

sub15708-0R011

main15708-33010i200610-200812

main15708-33020i200812-200910

main15708-37010i200610-200809

sub15708-37011

main15708-37011i200809-201208

sub15708-37012

main15708-47010i200809-200902

sub15708-47030

main15708-47030i200902-200910

sub15708-47031

33118DPLATE, STIFFENER, RH

main33118-05010i200610-200910

33119CPLATE, STIFFENER, LH

main33119-05010i200610-200901

sub33119-05020

main33119-42011i200901-200910

8401

9010506297

main90105-06297

9011006034

main90110-06034

9011906938

main90119-06938

9017906326

main90179-06326

9034551025

main90345-51025

9046705162C0

main90467-05162C0

91551F0860

main91551-F0860

9155281035

main91552-81035

9155281065

main91552-81065

9167180612

main91671-80612

9167180820

main91671-80820

9167281025

main91672-81025
