ENGINE OVERHAUL GASKET KIT

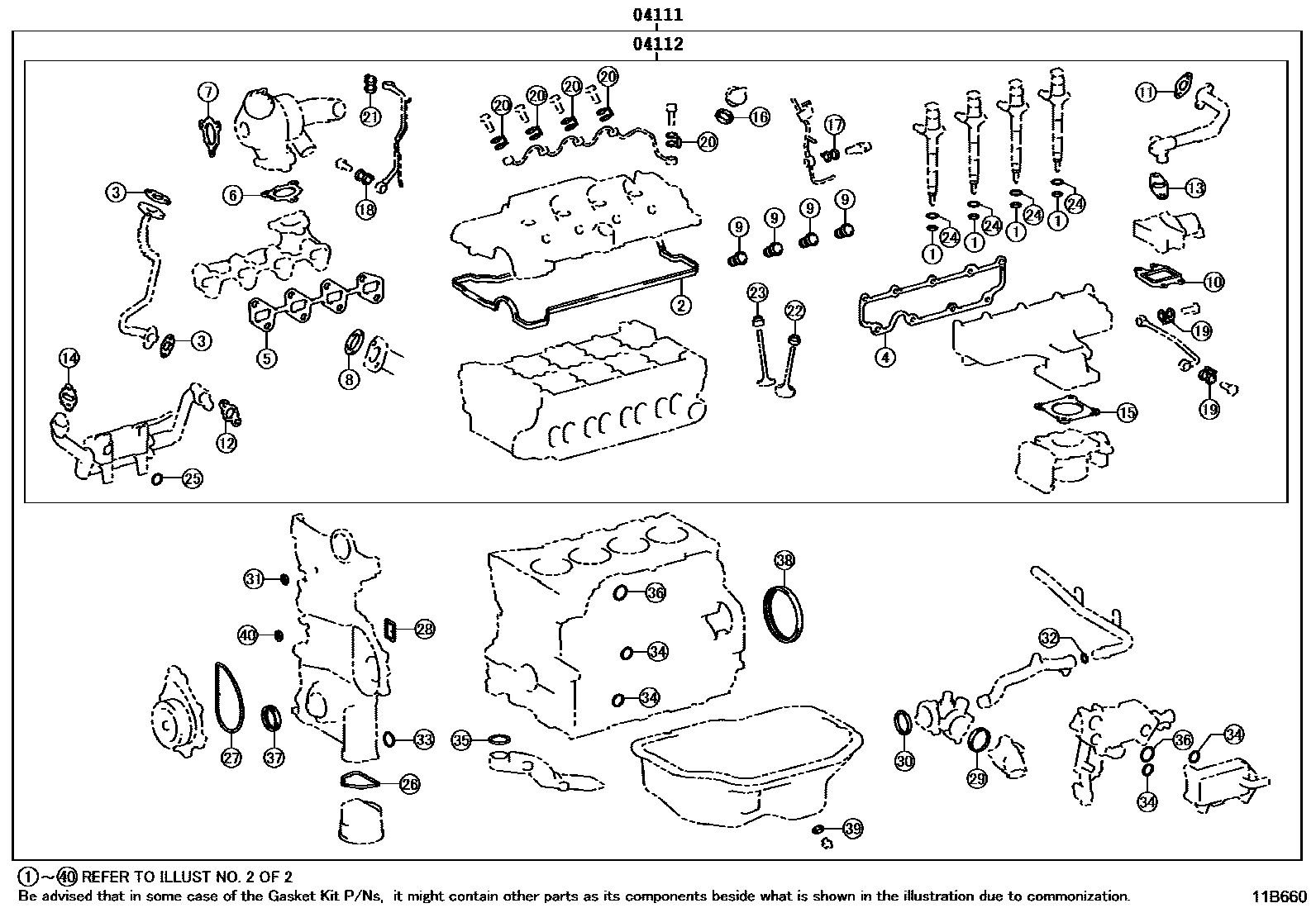

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-0R141i200610-200901
main04111-0R150i200610-200901
ICELAND SPEC
main04111-0R150i200610-200901
TURKEY SPEC
main04111-0R190i200901-200910
sub04111-0R191
main04111-22690i200610-200806
sub04111-22691
main04111-22691i200806-200812
main04111-33110i200610-200812
main04111-33140i200812-201009
main04111-33190i201009-201208
sub04111-33191
main04111-37091i200610-200805
sub04111-37092
main04111-37092i200806-200903
sub04111-37093
main04111-37093i200903-201110
sub04111-37095
main04111-37095i201110-201202
sub04111-37096
main04111-37096i201203-201208
sub04111-37097
main04111-37270i200812-200903
sub04111-37271
main04111-37271i200903-200910
sub04111-37273
main04111-47070i200809-200810
sub04111-47071
main04111-47071i200810-200910
sub04111-47072
04112GASKET KIT, ENGINE VALVE GRIND
main04112-0R140i200610-200901
main04112-0R150i200610-200901
TURKEY SPEC
main04112-0R150i200610-200901
ICELAND SPEC
main04112-0R190i200901-200910
sub04112-0R200
main04112-22610i200610-200812
main04112-33110i200610-200812
main04112-33130i200812-201009
main04112-33180i201009-201208
sub04112-33181
main04112-37071i200610-200805
sub04112-37072
main04112-37072i200806-200903
sub04112-37073
main04112-37073i200903-201110
sub04112-37074
main04112-37074i201110-201202
sub04112-37075
main04112-37075i201203-201208
sub04112-37076
main04112-37220i200812-200903
sub04112-37221
main04112-37221i200903-200910
sub04112-37222
main04112-47030i200809-200810
sub04112-47031
main04112-47031i200810-200910
sub04112-47032

2 parts on this diagram · 18 diagrams in section
