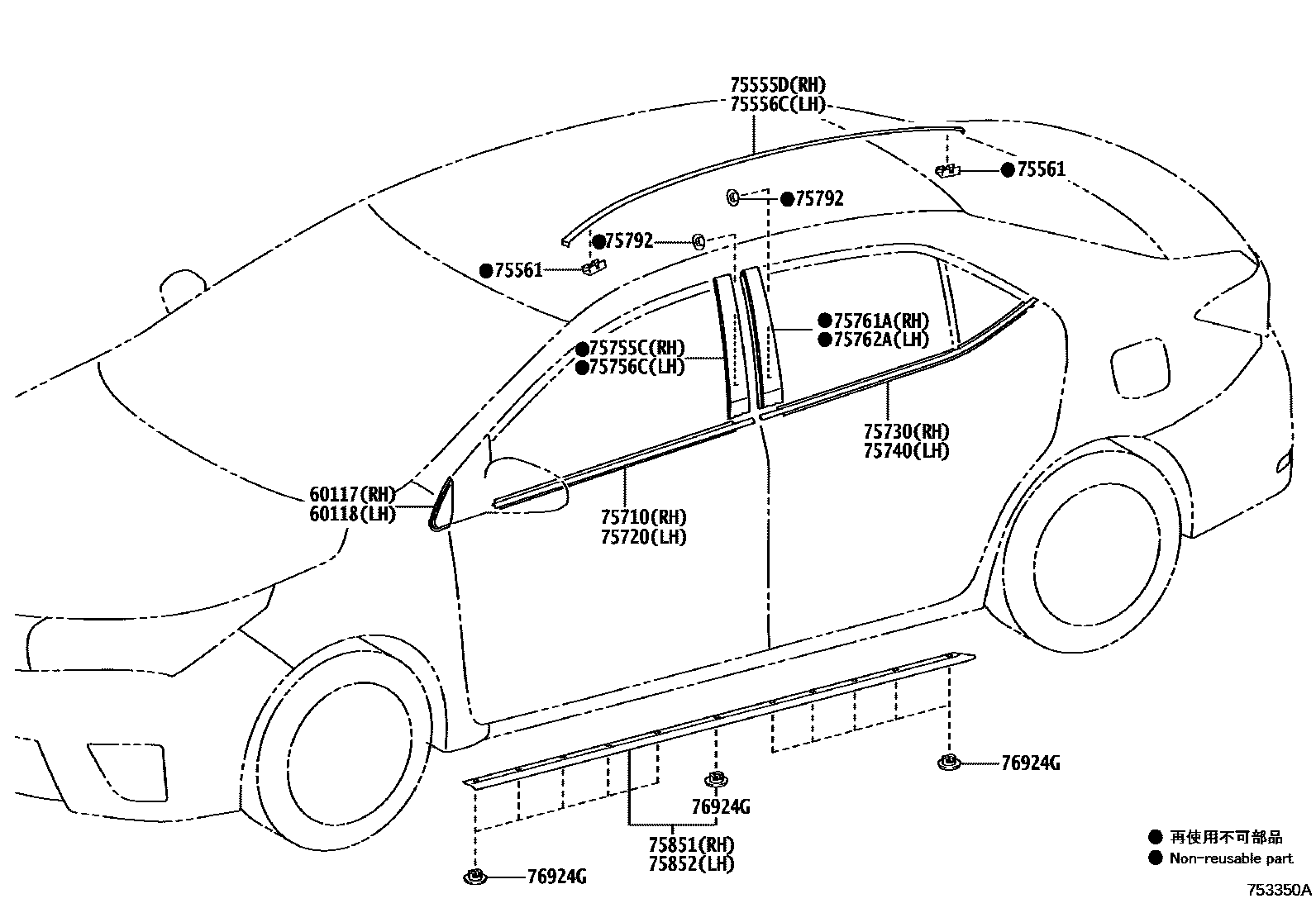

SIDE MOULDING

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-02140iNDE180,ZRE18#201606-201901

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-02140iNDE180,NRE180,ZRE18#201306-201605

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-02220iNRE180201606-201808

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-02220iNDE180,NRE180,ZRE18#201306-201605

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-33030×4iNDE180,NRE180,ZRE18#201306-201605

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-02320iNDE180,NRE180,ZRE18#..LHD..D; NDE180,NRE180..RHD;ZRE181..CVT..HTWVM201306-201605

DOOR BELT MOULDING-WITH(BLACK)

main75710-12830iNDE180,ZRE18#..G,N;NDE180,ZRE181..RHD201606-201901

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-02320iNRE180..LHD..D; NRE180..RHD201606-201808

DOOR BELT MOULDING-WITH(BLACK)

main75720-12830iNRE180..N;NRE180..RHD201606-201808

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-02300iNDE180,NRE180,ZRE18#..LHD..D; NDE180,NRE180..RHD;ZRE181..CVT..HTWVM201306-201605

DOOR BELT MOULDING-WITH(BLACK)

main75730-12360iNDE180,ZRE18#..G,N;NDE180,ZRE181..RHD201606-201901

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-02300iNDE180,NRE180,ZRE18#..LHD..D; NDE180,NRE180..RHD;ZRE181..CVT..HTWVM201306-201605

DOOR BELT MOULDING-WITH(BLACK)

main75740-12440iNDE180,ZRE18#..G,N;NDE180,ZRE181..RHD201606-201901

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-02050iNDE180,NRE180,ZRE18#201306-201605

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-02040iNDE180,NRE180,ZRE18#201306-201605

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-02040iNDE180,NRE180,ZRE18#201306-201605

NO PAINT REQ.

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-02040iNDE180,NRE180,ZRE18#201306-201605

NO PAINT REQ.

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-47010×4iNDE180,NRE180,ZRE18#201306-201605

75851MOULDING, ROCKER PANEL, RH

main75851-02170iNDE180,NRE180,ZRE18#201306-201605

75852MOULDING, ROCKER PANEL, LH

main75852-02170iNDE180,NRE180,ZRE18#201306-201605

76924GRETAINER, ROCKER PANEL MOULDING

main76924-12040×22iNRE180201606-201808

17 parts on this diagram · 1 diagram in section
