EPC Data

FRONT SEAT & SEAT TRACK

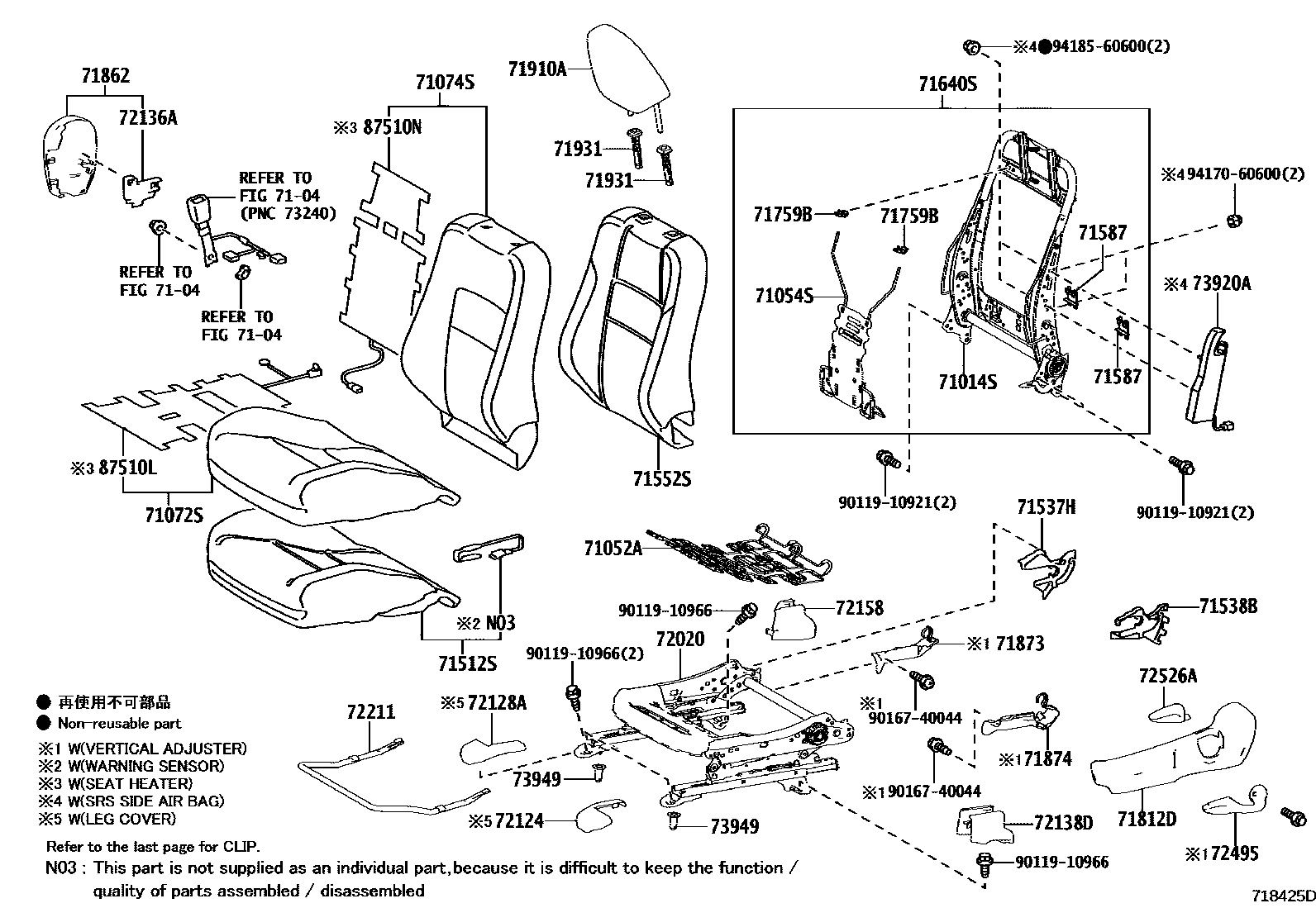

Parts diagram
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71014-02080supersedes 71014-02090i201606-201901
SRS AIR BAG-WITH(*DRS & *PAS & SIDE)
7104
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
main71051-02310i201306-201403
main71051-0D060i201606-201901
71054SSPRING SUB-ASSY, FRONT SEATBACK, LH
main71053-02090i201306-201605
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-0Z420-A1i201306-201605
IVORY,TRIM0#
main71072-0Z420-C1i201306-201605
BLACK,TRIM2#
main71072-0Z421-A3i201606-201710
SEAT COVER MATERIAL-FABLIC(BASE GRADE),FLAXEN,TRIM0#
main71072-0Z421-A4i201710-201901
SEAT COVER MATERIAL-FABLIC(BASE GRADE),FLAXEN,TRIM0#
main71072-0Z421-C3i201606-201710
BLACK,TRIM2#
main71072-0Z421-C4i201710-201901
BLACK,TRIM2#
main71072-0Z460-A1i201505-201605
LIGHT GRADE&EXHAUST EMISSION CONTROL-EUROPE STEP5+ WITH(ON BOARD DIAGNOSIS)&SRS AIR BAG-WITH(*DRS & *PAS),IVORY,TRIM0#
main71072-0Z460-C1supersedes 71072-02S00-C7i201306-201605
LIGHT GRADE&SRS AIR BAG-WITH(*DRS & *PAS),BLACK,TRIM2#
main71072-0Z461-A3supersedes 71072-02S00-A7i201606-201710
SEAT COVER MATERIAL-FABLIC(BASE GRADE),FLAXEN,TRIM0#
main71072-0Z461-A4supersedes 71072-02S00-A7i201710-201901
SEAT COVER MATERIAL-FABLIC(BASE GRADE),FLAXEN,TRIM0#
main71072-0Z461-C3supersedes 71072-02S00-C7i201606-201710
SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2#
main71072-0Z461-C4supersedes 71072-02S00-C7i201710-201901
SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2#
main71072-0Z470-A1i201306-201605
SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DRS & *PAS),IVORY,TRIM0#
main71072-0Z470-C1i201306-201605
SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DRS & *PAS),BLACK,TRIM2#
main71072-0Z471-A3i201606-201710
SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),FLAXEN,TRIM0#
main71072-0Z471-A4i201710-201901
SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),FLAXEN,TRIM0#
main71072-0Z471-C3i201606-201710
SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#
main71072-0Z471-C4i201710-201901
SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#
main71072-0Z520-A3supersedes 71072-0Z530-A4i201306-201401
SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DRS & *PAS),IVORY,TRIM0#
main71072-0Z520-A4i201401-201605
SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DRS & *PAS),IVORY,TRIM0#
main71072-0Z520-A5i201606-201710
SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),FLAXEN,TRIM0#
main71072-0Z520-A7i201710-201901
SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),FLAXEN,TRIM0#
main71072-0Z520-B1i201306-201401
SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DRS & *PAS),BLACK,TRIM2#
main71072-0Z520-C3i201505-201605
EXHAUST EMISSION CONTROL-EUROPE STEP5+ WITH(ON BOARD DIAGNOSIS)&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DRS & *PAS),BLACK,TRIM2#
main71072-0Z520-C5i201606-201709
SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DRS & *PAS),BLACK,TRIM2#
main71072-0Z520-C7supersedes 71072-0Z530-C7i201710-201901
SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DRS & *PAS),BLACK,TRIM2#
main71072-0Z660-A4i201306-201401
EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS)&SEAT COVER MATERIAL-LEATHER & FABRIC&SRS AIR BAG-WITH(*DRS & *PAS),IVORY,TRIM0#
main71072-0Z660-A5i201401-201605
EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)&SEAT COVER MATERIAL-LEATHER & FABRIC&SRS AIR BAG-WITH(*DRS & *PAS),IVORY,TRIM0#
main71072-0Z660-B1i201306-201401
SEAT COVER MATERIAL-LEATHER & FABRIC&SRS AIR BAG-WITH(*DRS & *PAS),BLACK,TRIM2#
main71072-0Z660-C3i201401-201505
EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS)&SEAT COVER MATERIAL-LEATHER & FABRIC&SRS AIR BAG-WITH(*DRS & *PAS),BLACK,TRIM2#
main71072-0Z670-A4i201306-201401
SEAT COVER MATERIAL-LEATHER & FABRIC&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),IVORY,TRIM0#
main71072-0Z670-A5supersedes 71072-0Z530-A4i201401-201605
SEAT COVER MATERIAL-LEATHER & FABRIC&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),IVORY,TRIM0#
main71072-0Z670-A6supersedes 71072-0ZS30-A0i201606-201710
SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),FLAXEN,TRIM0#
main71072-0Z670-B1i201306-201401
SEAT COVER MATERIAL-LEATHER & FABRIC&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#
main71072-0Z670-C3supersedes 71072-0Z530-C3i201401-201605
SEAT COVER MATERIAL-LEATHER & FABRIC&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#
main71072-0Z670-C6supersedes 71072-0Z530-C7i201606-201710
SEAT COVER MATERIAL-LEATHER & FABRIC&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#
main71072-0ZE81-A1i201606-201710
PRE-COLLISION SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-AUTO RETRACTABLE & WITH(HEATER)&SEAT COVER MATERIAL-FABLIC(BASE GRADE),FLAXEN,TRIM0#
main71072-0ZE81-A2i201710-201901
PRE-COLLISION SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-AUTO RETRACTABLE & WITH(HEATER)&SEAT COVER MATERIAL-FABLIC(BASE GRADE),FLAXEN,TRIM0#
main71072-0ZE81-C1i201606-201710
PRE-COLLISION SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-AUTO RETRACTABLE & WITH(HEATER)&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2#
main71072-0ZE81-C2i201710-201901
PRE-COLLISION SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-AUTO RETRACTABLE & WITH(HEATER)&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2#
main71072-0ZE90-A0i201606-201710
PRE-COLLISION SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-AUTO RETRACTABLE & WITH(HEATER),FLAXEN,TRIM0#
main71072-0ZE90-A2i201710-201901
PRE-COLLISION SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-AUTO RETRACTABLE & WITH(HEATER),FLAXEN,TRIM0#
main71072-0ZE90-C0i201606-201710
PRE-COLLISION SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-AUTO RETRACTABLE & WITH(HEATER),BLACK,TRIM2#
main71072-0ZE90-C2i201710-201901
PRE-COLLISION SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-AUTO RETRACTABLE & WITH(HEATER),BLACK,TRIM2#
main71072-0ZS40-A0supersedes 71072-0Z530-A7i201711-201901
SEAT COVER MATERIAL-LEATHER & FABRIC&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DRS & *PAS),FLAXEN,TRIM0#
main71072-0ZS40-C0supersedes 71072-0ZS30-C0i201710-201901
SEAT COVER MATERIAL-LEATHER & FABRIC&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#
main71072-0ZS80-A1i201711-201901
SPECIAL EDITION(FABLIC(ELMAS))&SEAT COVER MATERIAL-FABLIC(ELMAS)&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DRS & *PAS),FLAXEN GRADATION,TRIM0#
main71072-0ZS80-C1i201711-201901
SPECIAL EDITION(FABLIC(ELMAS))&SEAT COVER MATERIAL-FABLIC(ELMAS)&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK GRADATION,TRIM2#
main71072-0ZS90-A1i201711-201901
SPECIAL EDITION(FABLIC(ELMAS))&SEAT COVER MATERIAL-FABLIC(ELMAS)&SRS AIR BAG-WITH(*DRS & *PAS),FLAXEN GRADATION,TRIM0#
main71072-0ZS90-C1i201711-201901
SPECIAL EDITION(FABLIC(ELMAS))&SEAT COVER MATERIAL-FABLIC(ELMAS),BLACK GRADATION,TRIM2#
main71072-0ZT00-A1i201711-201901
SPECIAL EDITION(FABLIC(ELMAS))&PRE-COLLISION SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-AUTO RETRACTABLE & WITH(HEATER)&SEAT COVER MATERIAL-FABLIC(ELMAS),FLAXEN GRADATION
main71072-0ZT00-C1i201711-201901
SPECIAL EDITION(FABLIC(ELMAS))&PRE-COLLISION SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-AUTO RETRACTABLE & WITH(HEATER)&SEAT COVER MATERIAL-FABLIC(ELMAS),BLACK GRADATION,
main71072-0ZT10-A1i201711-201901
SPECIAL EDITION(FABLIC(ELMAS))&SEAT COVER MATERIAL-FABLIC(ELMAS),FLAXEN GRADATION,TRIM0#
main71072-0ZT10-C1i201711-201901
SPECIAL EDITION(FABLIC(ELMAS))&SEAT COVER MATERIAL-FABLIC(ELMAS),BLACK GRADATION,TRIM2#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-0ZC20-A1i201306-201401
IVORY,TRIM0#
main71074-0ZC20-A2i201401-201605
IVORY,TRIM0#
main71074-0ZC20-C1i201306-201401
BLACK,TRIM2#
main71074-0ZC20-C2i201401-201605
BLACK,TRIM2#
main71074-0ZC21-A4i201606-201901
SRS AIR BAG-WITH(*DRS & *PAS & SIDE),FLAXEN,TRIM0#
main71074-0ZC21-C4i201606-201901
SRS AIR BAG-WITH(*DRS & *PAS & SIDE),BLACK,TRIM2#
main71074-0ZB70-A3i201306-201401
LIGHT GRADE&SRS AIR BAG-WITH(*DRS & *PAS),IVORY,TRIM0#
main71074-0ZB70-A4i201401-201505
EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS)&SRS AIR BAG-WITH(*DRS & *PAS),IVORY,TRIM0#
main71074-0ZB70-A5i201711-201901
SRS AIR BAG-WITH(*DRS & *PAS),FLAXEN,TRIM0#
main71074-0ZB70-B1i201306-201401
SRS AIR BAG-WITH(*DRS & *PAS),BLACK,TRIM2#
main71074-0ZB70-C2i201505-201605
LIGHT GRADE&EXHAUST EMISSION CONTROL-EUROPE STEP5+ WITH(ABS)&SRS AIR BAG-WITH(*DRS& *PAS),BLACK,TRIM2#
main71074-0ZB70-C4i201606-201901
SRS AIR BAG-WITH(*DRS & *PAS),BLACK,TRIM2#
main71074-0ZB90-A3i201306-201401
SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DRS & *PAS),IVORY,TRIM0#
main71074-0ZB90-A4i201505-201605
EXHAUST EMISSION CONTROL-EUROPE STEP5+ WITH(ON BOARD DIAGNOSIS)&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DRS & *PAS),IVORY,TRIM0#
main71074-0ZB90-A5i201606-201901
SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DRS & *PAS),FLAXEN,TRIM0#
main71074-0ZB90-B1i201306-201401
EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DRS & *PAS),BLACK,TRIM2#
main71074-0ZB90-C2i201401-201605
SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DRS & *PAS),BLACK,TRIM2#
main71074-0ZB90-C4i201711-201901
SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DRS & *PAS),BLACK,TRIM2#
main71074-0ZC00-A3supersedes 71074-0ZB80-A4i201306-201401
SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),IVORY,TRIM0#
main71074-0ZC00-A4supersedes 71074-0ZB80-A4i201401-201605
SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),IVORY,TRIM0#
main71074-0ZC00-A5supersedes 71074-0ZB80-A5i201606-201901
SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),FLAXEN,TRIM0#
main71074-0ZC00-B1supersedes 71074-0ZB80-C2i201306-201401
SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#
main71074-0ZC00-C2supersedes 71074-0ZB80-C2i201401-201605
SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#
main71074-0ZC00-C4supersedes 71074-0ZB80-C4i201606-201901
SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#
main71074-0ZC10-A1i201306-201401
EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS)&SRS AIR BAG-WITH(*DRS & *PAS),IVORY,TRIM0#
main71074-0ZC10-A2supersedes 71074-0ZE10-A5i201401-201605
LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),IVORY,TRIM0#
main71074-0ZC10-C1supersedes 71074-0ZE10-C3i201306-201401
EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)&SRS AIR BAG-WITH(*DRS & *PAS),BLACK,TRIM2#
main71074-0ZC10-C2i201505-201605
LIGHT GRADE&EXHAUST EMISSION CONTROL-EUROPE STEP5+ WITH(ABS)&SRS AIR BAG-WITH(*DRS& *PAS),BLACK,TRIM2#
main71074-0ZC30-A1i201306-201401
SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),IVORY,TRIM0#
main71074-0ZC30-A2i201401-201605
SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),IVORY,TRIM0#
main71074-0ZC30-C1i201306-201401
SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#
main71074-0ZC30-C2i201401-201605
SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#
main71074-0ZC31-A4supersedes 71074-0ZC11-A4i201606-201901
SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),FLAXEN,TRIM0#
main71074-0ZC31-C4supersedes 71074-0ZC11-C4i201606-201901
SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#
main71074-0ZD70-A7i201306-201401
EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS)&SEAT COVER MATERIAL-LEATHER & FABRIC&SRS AIR BAG-WITH(*DRS & *PAS),IVORY,TRIM0#
main71074-0ZD70-A8i201505-201605
EXHAUST EMISSION CONTROL-EUROPE STEP5+ WITH(ABS)&SEAT COVER MATERIAL-LEATHER & FABRIC&SRS AIR BAG-WITH(*DRS & *PAS),IVORY,TRIM0#
main71074-0ZD70-A9i201711-201901
SEAT COVER MATERIAL-LEATHER & FABRIC&SRS AIR BAG-WITH(*DRS & *PAS),FLAXEN,TRIM0#
main71074-0ZD70-B2i201306-201401
EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS)&SEAT COVER MATERIAL-LEATHER & FABRIC&SRS AIR BAG-WITH(*DRS & *PAS),BLACK,TRIM2#
main71074-0ZD70-C3i201505-201605
EXHAUST EMISSION CONTROL-EUROPE STEP5+ WITH(ON BOARD DIAGNOSIS)&SEAT COVER MATERIAL-LEATHER & FABRIC&SRS AIR BAG-WITH(*DRS & *PAS),BLACK,TRIM2#
main71074-0ZD70-C6i201606-201901
SEAT COVER MATERIAL-LEATHER & FABRIC&SRS AIR BAG-WITH(*DRS & *PAS),BLACK,TRIM2#
main71074-0ZD80-A7supersedes 71074-0ZB80-A4i201306-201401
SEAT COVER MATERIAL-LEATHER & FABRIC,IVORY,TRIM0#
main71074-0ZD80-A8supersedes 71074-0ZB80-A4i201401-201605
SEAT COVER MATERIAL-LEATHER & FABRIC,IVORY,TRIM0#
main71074-0ZD80-B2supersedes 71074-0ZB80-C2i201306-201401
SEAT COVER MATERIAL-LEATHER & FABRIC,BLACK,TRIM2#
main71074-0ZD80-C3supersedes 71074-0ZB80-C2i201401-201605
SEAT COVER MATERIAL-LEATHER & FABRIC,BLACK,TRIM2#
main71074-0ZD90-A7i201306-201401
EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)&SEAT COVER MATERIAL-LEATHER & FABRIC&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(
main71074-0ZD90-A8i201401-201505
EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS)&SEAT COVER MATERIAL-LEATHER & FABRIC&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DR
main71074-0ZD90-A9i201711-201901
SEAT COVER MATERIAL-LEATHER & FABRIC&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DRS & *PAS),FLAXEN,TRIM0#
main71074-0ZD90-B2i201306-201401
EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)&SEAT COVER MATERIAL-LEATHER & FABRIC&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(
main71074-0ZD90-C3i201401-201605
EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)&SEAT COVER MATERIAL-LEATHER & FABRIC&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(
main71074-0ZD90-C6i201711-201901
SEAT COVER MATERIAL-LEATHER & FABRIC&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DRS & *PAS),BLACK,TRIM2#
main71074-0ZE00-A7supersedes 71074-0ZB80-A4i201306-201401
SEAT COVER MATERIAL-LEATHER & FABRIC&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),IVORY,TRIM0#
main71074-0ZE00-A8supersedes 71074-0ZB80-A4i201401-201605
SEAT COVER MATERIAL-LEATHER & FABRIC&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),IVORY,TRIM0#
main71074-0ZE00-A9supersedes 71074-0ZB80-A5i201606-201901
SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),FLAXEN,TRIM0#
main71074-0ZE00-B2supersedes 71074-0ZB80-C2i201306-201401
SEAT COVER MATERIAL-LEATHER & FABRIC&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#
main71074-0ZE00-C3supersedes 71074-0ZB80-C2i201401-201605
SEAT COVER MATERIAL-LEATHER & FABRIC&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#
main71074-0ZE00-C6supersedes 71074-0ZD80-C6i201606-201901
SEAT COVER MATERIAL-LEATHER & FABRIC&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#
main71074-0ZG70-A1supersedes 71074-0ZE10-A5i201306-201401
SEAT COVER MATERIAL-FABLIC(BASE GRADE),IVORY,TRIM0#
main71074-0ZG70-A2supersedes 71074-0ZE10-A5i201401-201605
SEAT COVER MATERIAL-FABLIC(BASE GRADE),IVORY,TRIM0#
main71074-0ZG70-C1supersedes 71074-0ZE10-C3i201306-201401
SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2#
main71074-0ZG70-C2supersedes 71074-0ZE10-C3i201401-201605
SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2#
main71074-0ZG71-A4supersedes 71074-0ZE10-A5i201606-201901
SEAT COVER MATERIAL-FABLIC(BASE GRADE),FLAXEN,TRIM0#
main71074-0ZG71-C4supersedes 71074-0ZE10-C3i201606-201901
SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2#
main71074-0ZG90-A1i201306-201401
SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DRS & *PAS),IVORY,TRIM0#
main71074-0ZG90-A2i201401-201605
SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DRS & *PAS),IVORY,TRIM0#
main71074-0ZG90-C1i201306-201401
EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DRS & *PAS),BLACK,TRIM2#
main71074-0ZG90-C2i201505-201605
EXHAUST EMISSION CONTROL-EUROPE STEP5+ WITH(ON BOARD DIAGNOSIS)&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DRS & *PAS),BLACK,TRIM2#
main71074-0ZG91-A4supersedes 71074-0ZC11-A4i201711-201901
SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DRS & *PAS),FLAXEN,TRIM0#
main71074-0ZG91-C4supersedes 71074-0ZC11-C4i201711-201901
SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DRS & *PAS),BLACK,TRIM2#
main71074-0ZN71-A1i201606-201901
PRE-COLLISION SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-AUTO RETRACTABLE & WITH(HEATER)&SEAT COVER MATERIAL-FABLIC(BASE GRADE),FLAXEN,TRIM0#
main71074-0ZN71-C1i201606-201901
PRE-COLLISION SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-AUTO RETRACTABLE & WITH(HEATER)&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2#
main71074-0ZN80-A0i201606-201901
PRE-COLLISION SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-AUTO RETRACTABLE & WITH(HEATER),FLAXEN,TRIM0#
main71074-0ZN80-C0i201606-201901
PRE-COLLISION SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-AUTO RETRACTABLE & WITH(HEATER),BLACK,TRIM2#
main71074-F2090-A0i201711-201901
SPECIAL EDITION(FABLIC(ELMAS))&PRE-COLLISION SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-AUTO RETRACTABLE & WITH(HEATER)&SEAT COVER MATERIAL-FABLIC(ELMAS),FLAXEN GRADATION
main71074-F2090-C0i201711-201901
SPECIAL EDITION(FABLIC(ELMAS))&PRE-COLLISION SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-AUTO RETRACTABLE & WITH(HEATER)&SEAT COVER MATERIAL-FABLIC(ELMAS),BLACK GRADATION,
main71074-F2100-A0i201711-201901
SPECIAL EDITION(FABLIC(ELMAS))&SEAT COVER MATERIAL-FABLIC(ELMAS)&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DRS & *PAS),FLAXEN GRADATION,TRIM0#
main71074-F2100-C0i201711-201901
SPECIAL EDITION(FABLIC(ELMAS))&SEAT COVER MATERIAL-FABLIC(ELMAS)&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DRS & *PAS),BLACK GRADATION,TRIM2#
main71074-F2110-A0i201711-201901
SPECIAL EDITION(FABLIC(ELMAS))&SEAT COVER MATERIAL-FABLIC(ELMAS),FLAXEN GRADATION,TRIM0#
main71074-F2110-C0i201711-201901
SPECIAL EDITION(FABLIC(ELMAS))&SEAT COVER MATERIAL-FABLIC(ELMAS),BLACK GRADATION,TRIM2#
main71074-F2120-A0i201711-201901
SPECIAL EDITION(FABLIC(ELMAS))&SEAT COVER MATERIAL-FABLIC(ELMAS),FLAXEN GRADATION,TRIM0#
main71074-F2120-C0i201711-201901
SPECIAL EDITION(FABLIC(ELMAS))&SEAT COVER MATERIAL-FABLIC(ELMAS),BLACK GRADATION,TRIM2#
main71074-F2130-A0i201711-201901
SPECIAL EDITION(FABLIC(ELMAS))&SEAT COVER MATERIAL-FABLIC(ELMAS)&SRS AIR BAG-WITH(*DRS & *PAS),FLAXEN GRADATION,TRIM0#
main71074-F2130-C0i201711-201901
SPECIAL EDITION(FABLIC(ELMAS))&SEAT COVER MATERIAL-FABLIC(ELMAS)&SRS AIR BAG-WITH(*DRS & *PAS),BLACK GRADATION,TRIM2#
main71074-F2160-A0i201711-201901
SPECIAL EDITION(FABLIC(ELMAS))&SEAT COVER MATERIAL-FABLIC(ELMAS)&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),FLAXEN GRADATION,TRIM0#
main71074-F2160-C0i201711-201901
SPECIAL EDITION(FABLIC(ELMAS))&SEAT COVER MATERIAL-FABLIC(ELMAS)&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK GRADATION,TRIM2#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71502-02080i201306-201407
main71502-02081i201408-201605
main71512-02500i201606-201901
main71502-02250i201606-201901
PRE-COLLISION SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-AUTO RETRACTABLE & WITH(HEATER)&SEAT COVER MATERIAL-FABLIC(BASE GRADE)
main71512-02780i201306-201605
SEAT COVER MATERIAL-LEATHER & FABRIC&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DRS & *PAS)
71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
main71537-02140-C0i201606-201901
BLACK,TRIM0#,2#
main71537-02160-C0i201306-201605
LIGHT GRADE&SRS AIR BAG-WITH(*DRS & *PAS),BLACK,TRIM0#,2#
71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
main71538-02080-C0i201606-201901
BLACK,TRIM0#,2#
main71538-02090-C0i201306-201605
BLACK,TRIM0#,2#
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-02710supersedes 71551-02880i201306-201605
71587PROTECTOR, FRONT SEATBACK EDGE
main71587-02020×4i201606-201901
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71640-02600supersedes 71640-02610i201606-201901
SRS AIR BAG-WITH(*DRS & *PAS & SIDE)
71759BHOOK, FRONT SEATBACK
main71759-02020×4i201306-201404
main71759-47011×4i201405-201605
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-02600-C0i201306-201605
BLACK,TRIM0#,2#
main71812-02620-C0supersedes 71812-02610-C0i201606-201901
SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DRS & *PAS & SIDE &*CUSA),BLACK,TRIM0#,2#
main71812-02590-C0i201306-201605
LIGHT GRADE&SRS AIR BAG-WITH(*DRS & *PAS),BLACK,TRIM0#,2#
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-02220-C0i201306-201605
LIGHT GRADE&SRS AIR BAG-WITH(*DRS & *PAS),BLACK,TRIM0#,2#
main71862-02230-C0i201306-201605
BLACK,TRIM0#,2#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-02140i201606-201901
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-02130i201606-201901
71910AHEADREST ASSY, FRONT SEAT
main71910-02K60-A2×2i201306-201401
IVORY,TRIM0#
main71910-02K60-A3×2i201401-201605
IVORY,TRIM0#
main71910-02K60-A4×2i201606-201901
FLAXEN,TRIM0#
main71910-02K60-B0×2i201306-201401
BLACK,TRIM2#
main71910-02K60-C2×2i201401-201605
BLACK,TRIM2#
main71910-02K60-C4×2i201606-201901
BLACK,TRIM2#
main71910-02K70-A2×2i201306-201605
IVORY,TRIM0#
main71910-02K70-C2×2i201306-201605
SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#
main71910-02K71-A4×2i201606-201901
SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),FLAXEN,TRIM0#
main71910-02K71-C4×2i201606-201901
BLACK,TRIM2#
main71910-02L50-A6×2i201606-201901
SEAT COVER MATERIAL-LEATHER & FABRIC&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),FLAXEN,TRIM0#
main71910-02L50-C6×2i201606-201901
SEAT COVER MATERIAL-LEATHER & FABRIC&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DRS & *PAS),EU BLACK,TRIM2#
main71910-02L50-A4×2i201306-201401
SEAT COVER MATERIAL-LEATHER & FABRIC,IVORY,TRIM0#
main71910-02L50-A5×2i201401-201605
SEAT COVER MATERIAL-LEATHER & FABRIC,IVORY,TRIM0#
main71910-02L50-B0×2i201306-201401
SEAT COVER MATERIAL-LEATHER & FABRIC&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#
main71910-02L50-C4×2i201505-201605
EXHAUST EMISSION CONTROL-EUROPE STEP5+ WITH(ABS)&SEAT COVER MATERIAL-LEATHER & FABRIC&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DRS & *PAS),BLAC
71931SUPPORT, FRONT SEAT HEADREST
main71930-47020-A1×2i201306-201605
W(LOCK),IVORY,TRIM01
main71930-47020-A7×2i201606-201901
W(LOCK),FLAXEN,TRIM0#
main71930-47020-C0×2i201606-201710
W(LOCK),BLACK,TRIM2#
main71930-47020-C4×2i201710-201901
W(LOCK),BLACK,TRIM2#
main71931-47020-A1×2i201306-201605
W/O(LOCK),IVORY,TRIM01
main71931-47020-A7×2i201606-201901
W/O(LOCK),FLAXEN,TRIM0#
main71931-47020-C0×2i201606-201710
W/O(LOCK),BLACK,TRIM2#
main71931-47020-C4×2i201710-201901
W/O(LOCK),BLACK,TRIM2#
72020ADJUSTER ASSY, FRONT SEAT, LH
main72020-02500i201306-201405
LIGHT GRADE&SRS AIR BAG-WITH(*DRS & *PAS)
sub73214-75010
main72020-02501i201606-201901
main72020-02520i201306-201405
sub73214-75010
main72020-02521i201405-201605
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
main72124-02110-C0i201606-201808
COLD AREA SPEC,BLACK,TRIM0#,2#
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
main72128-02050-C0i201606-201901
COLD AREA SPEC,BLACK,TRIM0#,2#
72136SPACER, SEAT TRACK, LOWER NO.1
main72136-02170supersedes 72136-02180i201306-201605
LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)
72136ASPACER, SEAT TRACK, LOWER NO.2
main72136-02200i201306-201605
LIGHT GRADE&SRS AIR BAG-WITH(*DRS & *PAS)
main72136-02210i201606-201901
72138DCOVER, SEAT TRACK, OUTER, LH
main72138-02240-C0i201606-201808
BLACK,TRIM0#,2#
72158COVER, SEAT TRACK BRACKET, INNER LH
main72158-02250-C0i201306-201605
BLACK,TRIM0#,2#
72211HANDLE, SEAT TRACK ADJUSTING
main72211-02130×2i201306-201605
72495HANDLE, VERTICAL ADJUSTING, LH
main72494-02160-C0i201606-201901
BLACK,TRIM0#,2#
72526AHANDLE, RECLINING ADJUSTER RELEASE, LH
main72525-02200-C0i201306-201605
BLACK,TRIM0#,2#
main72526-02180-C0i201606-201901
BLACK,TRIM0#,2#
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-02090i201606-201901
SRS AIR BAG-WITH(*DRS & *PAS & SIDE)
73949CAP
main71848-02040×4i201306-201605
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
main87510-02140i201306-201605
SEAT COVER MATERIAL-LEATHER & FABRIC&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DRS & *PAS)
87510NHEATER ASSY, FRONT SEATBACK, LH
main87530-02060i201306-201505
EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS)&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK))&SRS AIR BAG-WITH(*DRS & *PAS)
9011910921
main90119-10921
9011910966
main90119-10966
9016740044
main90167-40044
9417060600
main94170-60600
9418560600
main94185-60600

38 parts on this diagram · 3 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
