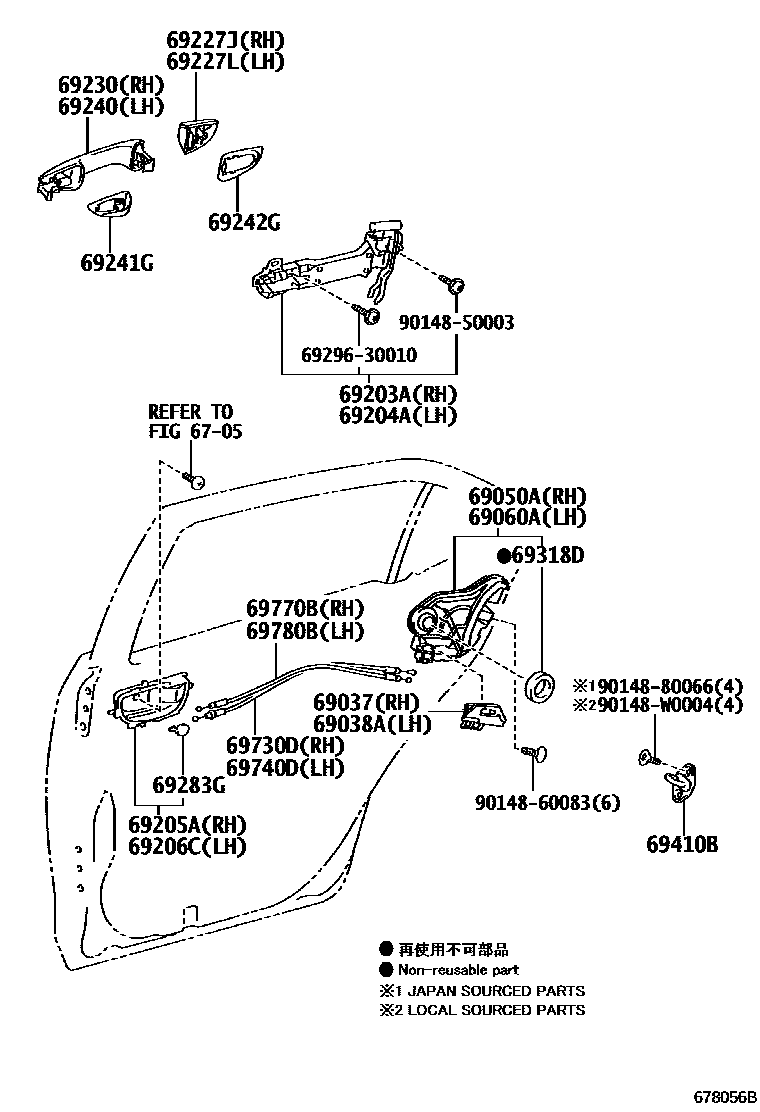

REAR DOOR LOCK & HANDLE
6705
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)
sub69050-02391
WIRELESS DOOR LOCK-WITH
INTERMITTENT WIPER-INTERMITTENT(TIME ADJUSTMENT)&AIR CONDITIONER-COOLER LESS
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)
sub69060-02391
WIRELESS DOOR LOCK-WITH
INTERMITTENT WIPER-INTERMITTENT(TIME ADJUSTMENT)&AIR CONDITIONER-COOLER LESS
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
FLAXEN,TRIM0#
EU BLACK,TRIM2#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
FLAXEN,TRIM0#
EU BLACK,TRIM2#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
LESS COLOR,WIRELESS DOOR LOCK-WITH&INTERMITTENT WIPER-INTERMITTENT(TIME ADJUSTMENT)&AIR CONDITIONER-COOLER LESS
LESS COLOR
LESS COLOR,WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),METAL STREAM ME,1K0
sub69250-02420
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),SUPER WHITE 2,040
SUPER WHITE 2,040
WHITE PEARL CS.,070
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),WHITE PEARL CS.,070
SILVER ME.,1F7
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),SILVER ME.,1F7
GRAY ME.,1G2
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),GRAY ME.,1G2
GRAY ME.,1G3
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),GRAY ME.,1G3
METAL STREAM ME,1K0
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),METAL STREAM ME,1K0
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),BLACK MC.,209
BLACK MC.,209
RED MC.,3T3
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),RED MC.,3T3
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),DK. BROWN M.M.,4U3
DK. BROWN M.M.,4U3
DK.BLUE,8Q4
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),DK.BLUE,8Q4
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
LESS COLOR,WIRELESS DOOR LOCK-WITH&INTERMITTENT WIPER-INTERMITTENT(TIME ADJUSTMENT)&AIR CONDITIONER-COOLER LESS
LESS COLOR,WIRELESS DOOR LOCK-WITH
LESS COLOR
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),METAL STREAM ME,1K0
sub69250-02430
SUPER WHITE 2,040
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),SUPER WHITE 2,040
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),WHITE PEARL CS.,070
WHITE PEARL CS.,070
SILVER ME.,1F7
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),SILVER ME.,1F7
GRAY ME.,1G2
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),GRAY ME.,1G2
GRAY ME.,1G3
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),GRAY ME.,1G3
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),METAL STREAM ME,1K0
METAL STREAM ME,1K0
BLACK MC.,209
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),BLACK MC.,209
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),RED MC.,3T3
RED MC.,3T3
DK. BROWN M.M.,4U3
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),DK. BROWN M.M.,4U3
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),DK.BLUE,8Q4
DK.BLUE,8Q4
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),METAL STREAM ME,1K0
sub69210-02320
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),SUPER WHITE 2,040
SUPER WHITE 2,040
WHITE PEARL CS.,070
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),WHITE PEARL CS.,070
SILVER ME.,1F7
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),SILVER ME.,1F7
GRAY ME.,1G2
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),GRAY ME.,1G2
GRAY ME.,1G3
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),GRAY ME.,1G3
METAL STREAM ME,1K0
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),METAL STREAM ME,1K0
BLACK MC.,209
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),BLACK MC.,209
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),RED MC.,3T3
RED MC.,3T3
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),DK. BROWN M.M.,4U3
DK. BROWN M.M.,4U3
DK.BLUE,8Q4
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),DK.BLUE,8Q4
PAINT REQ.,WIRELESS DOOR LOCK-WITH
PAINT REQ.,WIRELESS DOOR LOCK-WITH&INTERMITTENT WIPER-INTERMITTENT(TIME ADJUSTMENT)&AIR CONDITIONER-COOLER LESS
PAINT REQ.
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PAINT REQ.,WIRELESS DOOR LOCK-WITH
PAINT REQ.
PAINT REQ.,WIRELESS DOOR LOCK-WITH&INTERMITTENT WIPER-INTERMITTENT(TIME ADJUSTMENT)&AIR CONDITIONER-COOLER LESS
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),METAL STREAM ME,1K0
sub69220-02250
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),SUPER WHITE 2,040
SUPER WHITE 2,040
WHITE PEARL CS.,070
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),WHITE PEARL CS.,070
SILVER ME.,1F7
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),SILVER ME.,1F7
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),GRAY ME.,1G2
GRAY ME.,1G2
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),GRAY ME.,1G3
GRAY ME.,1G3
METAL STREAM ME,1K0
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),METAL STREAM ME,1K0
BLACK MC.,209
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),BLACK MC.,209
RED MC.,3T3
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),RED MC.,3T3
DK. BROWN M.M.,4U3
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),DK. BROWN M.M.,4U3
DK.BLUE,8Q4
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),DK.BLUE,8Q4
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
RH
LH
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
RH
LH
69283GPLUG, REAR DOOR INSIDE HANDLE BEZEL
IVORY,TRIM0#
FLAXEN,TRIM0#
EU BLACK,TRIM2#
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
90148W0004
main90148-W0004
27 parts on this diagram · 1 diagram in section
