INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111BCLIP(FOR COWL SIDE TRIM)

main90467-W0005iNRE180201306-201901

62111CBOARD, COWL SIDE TRIM, RH

main62111-02260-C0iNDE180,NRE180,ZRE18#201306-201505

BLACK,TRIM0#,2#

sub62111-02260

main62111-02260-C1iNDE180,ZRE18#201505-201901

EU BLACK,TRIM0#,2#

sub62111-02260

62112BOARD, COWL SIDE TRIM, LH

main62112-02260-C0iNDE180,NRE180,ZRE18#201306-201505

BLACK,TRIM0#,2#

sub62112-02260

main62112-02260-C1iNDE180,NRE180,ZRE18#201505-201901

EU BLACK,TRIM0#,2#

sub62112-02260

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147iNDE180,ZRE18#201306-201901

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-02220iNRE180..LHD..D..EUR201306-201901

SRS AIR BAG-WITH(*DRS & *PAS & SIDE)

main62170-02220iNRE180..LHD..D..EUR201306-201901

SRS AIR BAG-WITH(*DRS & *PAS)

main62170-02220iNRE180..LHD..D..EUR201606-201901

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA)

62170BBOLT, W/WASHER

main90119-06869iNRE180..RUS201306-201901

SRS AIR BAG-WITH(*DRS & *PAS),(J)

main90119-06869iNDE180,NRE180,ZRE18#201306-201901

(J)

main90119-06869iNDE180,NRE180,ZRE18#201306-201901

SRS AIR BAG-WITH(*DRS & *PAS & SIDE),(J)

main90119-06869iNRE180..EUR201606-201901

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),(J)

main90119-W0078iZRE18#..RUS201606-201901

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),(L)

main90119-W0078iNDE180,NRE180,ZRE18#201306-201901

(L)

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-02210iNRE180..EUR201306-201901

SRS AIR BAG-WITH(*DRS & *PAS)

main62180-02210iNRE180..RUS201606-201901

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA)

main62180-02210iNRE180..RUS201306-201901

SRS AIR BAG-WITH(*DRS & *PAS & SIDE)

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-42010iNDE180,ZRE181..EUR201306-201901

SRS AIR BAG-WITH(*DRS & *PAS & SIDE)

main62189-42010iNDE180,NRE180,ZRE18#201306-201901

SRS AIR BAG-WITH(*DRS & *PAS)

main62189-42010iNRE180..EUR201606-201901

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA)

62211GARNISH, FRONT PILLAR, RH

main62210-02150-A0iNDE180,NRE180,ZRE18#201306-201605

IVORY,TRIM0#

main62210-02150-A1iNRE180..EUR201606-201901

FLAXEN,TRIM0#

main62210-02150-A1iNRE180..EUR201606-201901

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),FLAXEN,TRIM0#

main62210-02150-B0iZRE18#..RUS201306-201901

LT.GRAY,TRIM2#

main62210-02150-B0iNRE180..EUR201606-201901

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),LT.GRAY,TRIM2#

main62210-02160-A1iNRE180..RUS201606-201901

FLAXEN,TRIM0#

main62210-02160-B0iNRE180..RUS201606-201901

LT.GRAY,TRIM2#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-W0005iNDE180,NRE180,ZRE18#201306-201605

SRS AIR BAG-WITH(*DRS & *PAS & SIDE)

main90467-W0005iNRE180..RUS201606-201901

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA)

main90467-W0005iNDE180,NRE180,ZRE18#201306-201605

SRS AIR BAG-WITH(*DRS & *PAS)

62212GARNISH, FRONT PILLAR, LH

main62220-02150-A0iNDE180,NRE180,ZRE18#201306-201605

IVORY,TRIM0#

main62220-02150-A1iZRE18#..RUS201606-201901

FLAXEN,TRIM0#

main62220-02150-A1iNRE180..EUR201606-201901

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),FLAXEN,TRIM0#

main62220-02150-B0iNDE180,ZRE181..EUR201606-201901

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),LT.GRAY,TRIM2#

main62220-02150-B0iNDE180,NRE180,ZRE18#201306-201901

LT.GRAY,TRIM2#

main62220-02160-A1iNRE180..RUS201606-201901

FLAXEN,TRIM0#

main62220-02160-B0iNRE180..RUS201606-201901

LT.GRAY,TRIM2#

62217GCLIP, FRONT PILLAR GARNISH

main62217-52120iNRE180..RUS201606-201901

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA)

main62217-52120iNDE180,NRE180,ZRE18#201306-201605

62217HCLIP, CENTER PILLER GARNISH

main90467-10188iNDE180,ZRE18#201306-201901

62217JCLIP, CENTER PILLER GARNISH

main90467-W0005iNDE180,NRE180,ZRE18#201306-201901

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-02260iNDE180,NRE180,ZRE18#201306-201901

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-02250iNDE180,NRE180,ZRE18#201306-201901

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-02280iNDE180,ZRE18#201306-201901

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-02280iNRE180201306-201901

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-02210-A0iNDE180,NRE180,ZRE18#201306-201605

IVORY,TRIM0#

main62410-02210-A1iNDE180,ZRE18#201606-201901

FLAXEN,TRIM0#

main62410-02210-B1iNRE180201306-201901

LT.GRAY,TRIM2#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-02210-A0iNDE180,NRE180,ZRE18#201306-201605

IVORY,TRIM0#

main62420-02210-A1iNDE180,ZRE18#201606-201901

FLAXEN,TRIM0#

main62420-02210-B1iNDE180,NRE180,ZRE18#201306-201901

LT.GRAY,TRIM2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-02210-C0iNDE180,NRE180,ZRE18#201306-201505

BLACK,TRIM0#,2#

sub62413-02210

main62413-02210-C1iNDE180,NRE180,ZRE18#201505-201901

EU BLACK,TRIM0#,2#

sub62413-02210

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-02210-C0iNDE180,NRE180,ZRE18#201306-201505

BLACK,TRIM0#,2#

sub62414-02210

main62414-02210-C1iNDE180,ZRE18#201505-201901

EU BLACK,TRIM0#,2#

sub62414-02210

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-02320-A0iNDE180,NRE180,ZRE18#201306-201605

IVORY,TRIM0#

main62470-02320-A1iNRE180..RUS201606-201901

FLAXEN,TRIM0#

main62470-02320-A1iNRE180..RUS201606-201901

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),FLAXEN,TRIM0#

main62470-02320-B0iNRE180..RUS201606-201901

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),LT.GRAY,TRIM2#

main62470-02320-B0iNDE180,ZRE181..EUR201306-201901

LT.GRAY,TRIM2#

main62470-02330-A1iNRE180..RUS201606-201901

FLAXEN,TRIM0#

main62470-02330-B0iNRE180..RUS201606-201901

LT.GRAY,TRIM2#

62471MCLIP

main90467-A0033iNDE180,NRE180,ZRE18#201306-201901

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-02320-A0iNDE180,NRE180,ZRE18#201306-201605

IVORY,TRIM0#

main62480-02320-A1iZRE18#..RUS201606-201901

FLAXEN,TRIM0#

main62480-02320-A1iNDE180,ZRE181..EUR201606-201901

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),FLAXEN,TRIM0#

main62480-02320-B0iNRE180..RUS201306-201901

LT.GRAY,TRIM2#

main62480-02320-B0iNRE180..EUR201606-201901

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),LT.GRAY,TRIM2#

main62480-02330-A1iNRE180..RUS201606-201901

FLAXEN,TRIM0#

main62480-02330-B0iNRE180..RUS201606-201901

LT.GRAY,TRIM2#

62489BCLIP, ROOF SIDE INNER GARNISH

main90467-10188iNRE180201306-201901

62489CCLIP, ROOF SIDE INNER GARNISH

main90467-A0033iNDE180,NRE180,ZRE18#201306-201901

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main90467-10167iNDE180,NRE180,ZRE18#201306-201901

62551FGARNISH, REAR SEAT SIDE, RH

main62551-02380-C0iNDE180,NRE180,ZRE18#201306-201505

BLACK,TRIM0#,2#

sub62551-02380

main62551-02380-C1iNDE180,NRE180,ZRE18#201505-201901

EU BLACK,TRIM0#,2#

sub62551-02380

62551GCLIP

main62489-0E010iNDE180,NRE180,ZRE18#201306-201901

62552FGARNISH, REAR SEAT SIDE, LH

main62552-02360-C0iNDE180,NRE180,ZRE18#201306-201505

BLACK,TRIM0#,2#

sub62552-02360

main62552-02360-C1iNDE180,NRE180,ZRE18#201505-201901

EU BLACK,TRIM0#,2#

sub62552-02360

67913PLATE, FRONT DOOR SCUFF, RH

main67913-02260-C0iNDE180,NRE180,ZRE18#201306-201505

BLACK,TRIM0#,2#

sub67913-02260

main67913-02260-C1iNDE180,NRE180,ZRE18#201505-201901

EU BLACK,TRIM0#,2#

sub67913-02260

67914PLATE, FRONT DOOR SCUFF, LH

main67914-02260-C0iNDE180,NRE180,ZRE18#201306-201505

BLACK,TRIM0#,2#

sub67914-02260

main67914-02260-C1iNDE180,NRE180,ZRE18#201505-201901

EU BLACK,TRIM0#,2#

sub67914-02260

67917APLATE, REAR DOOR SCUFF, RH

main67917-02330-C0iNDE180,NRE180,ZRE18#201306-201505

BLACK,TRIM0#,2#

sub67917-02330

main67917-02330-C1iNDE180,NRE180,ZRE18#201505-201901

EU BLACK,TRIM0#,2#

sub67917-02330

67918APLATE, REAR DOOR SCUFF, LH

main67918-02330-C0iNDE180,NRE180,ZRE18#201306-201505

BLACK,TRIM0#,2#

sub67918-02330

main67918-02330-C1iNDE180,NRE180,ZRE18#201505-201901

EU BLACK,TRIM0#,2#

sub67918-02330

67924ACLAMP, DOOR SCUFF PLATE, NO.2

main67924-52140iNDE180,NRE180,ZRE18#201306-201901

7104

90167W0006

main90167-W0006

90167W0007

main90167-W0007

9018905096

main90189-05096

9046718017

main90467-18017

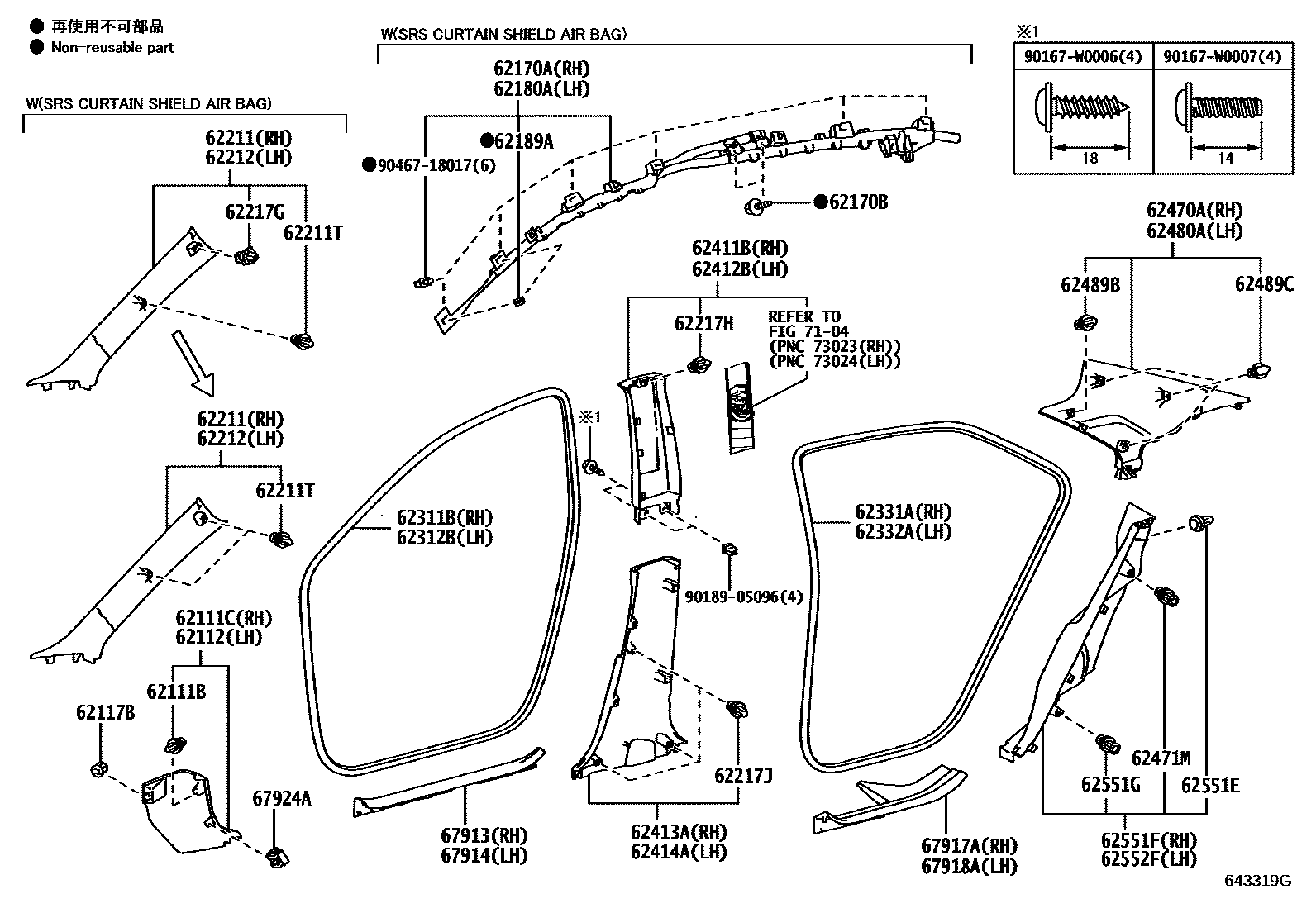

41 parts on this diagram · 1 diagram in section
