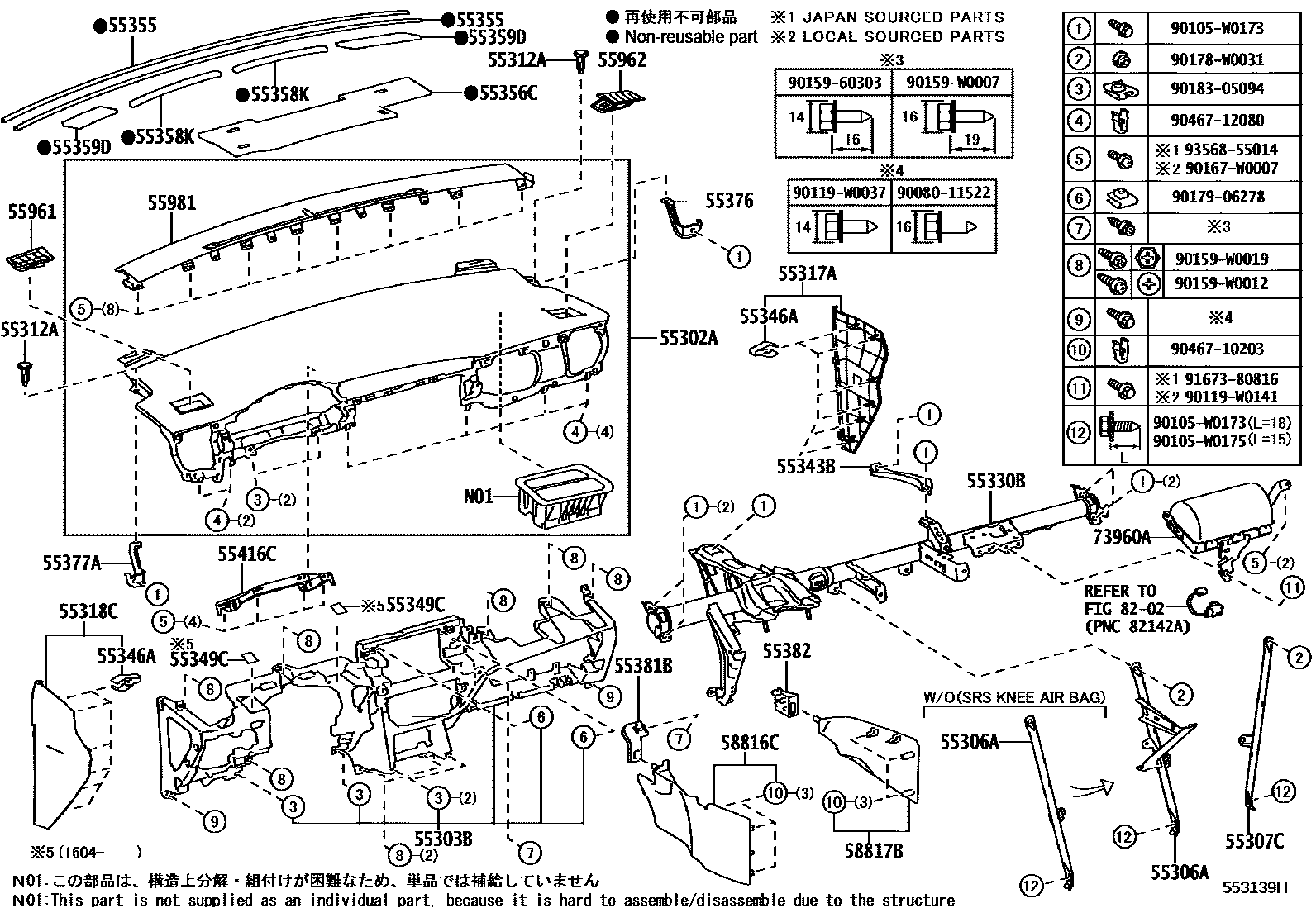

INSTRUMENT PANEL & GLOVE COMPARTMENT
55302APANEL SUB-ASSY, INSTRUMENT, UPPER
BLACK,TRIM0#,2#
EU BLACK,TRIM0#,2#
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
MAYDAY SYSTEM-WITHOUT
SRS AIR BAG-WITH(*DRS & *PAS & SIDE)
SRS AIR BAG-WITH(*DRS & *PAS)
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA)
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
MAYDAY SYSTEM-WITHOUT
55312ACLIP, INSTRUMENT PANEL
55317APANEL, INSTRUMENT SIDE, RH
55318CPANEL, INSTRUMENT SIDE, LH
BLACK,TRIM0#,2#
EU BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER
55346ACLIP, INSTRUMENT PANEL, NO.2
55349CCUSHION, INSTRUMENT PANEL
55355CUSHION, INSTRUMENT PANEL, NO.1
8 X 8 X 1230
LIGHT GRADE,8 X 8 X 1230
8 X 12 X 1240
8 X 12 X 1240
LIGHT GRADE,8 X 12 X 1240
8 X 8 X 1230
55356CCUSHION, INSTRUMENT PANEL, NO.2
LIGHT GRADE
55358KCUSHION, INSTRUMENT PANEL, NO.4
LIGHT GRADE
55359DCUSHION, INSTRUMENT PANEL, NO.5
LIGHT GRADE
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2
55381BBRACKET, FINISH PANEL MOUNTING, NO.1
55382BRACKET, FINISH PANEL MOUNTING, NO.2
55416CRETAINER, INSTRUMENT CLUSTER FINISH PANEL
55961NOZZLE, SIDE DEFROSTER, NO.1
55962NOZZLE, SIDE DEFROSTER, NO.2
BLACK,TRIM0#,2#
EU BLACK,TRIM0#,2#
55981GARNISH, DEFROSTER NOZZLE, NO.1
58816CINSERT, CONSOLE BOX, FRONT NO.1
58817BINSERT, CONSOLE BOX, FRONT NO.2
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
8202
9008011522
main90080-11522
90105W0173
main90105-W0173
90105W0175
main90105-W0175
90119W0037
main90119-W0037
90119W0141
main90119-W0141
9015960303
main90159-60303
90159W0007
main90159-W0007
90159W0012
main90159-W0012
90159W0019
main90159-W0019
90167W0007
main90167-W0007
90178W0031
main90178-W0031
9017906278
main90179-06278
9018305094
main90183-05094
9046710203
main90467-10203
9046712080
main90467-12080
9167380816
main91673-80816
9356855014
main93568-55014
44 parts on this diagram · 14 diagrams in section
