HOOD LOCK & HINGE

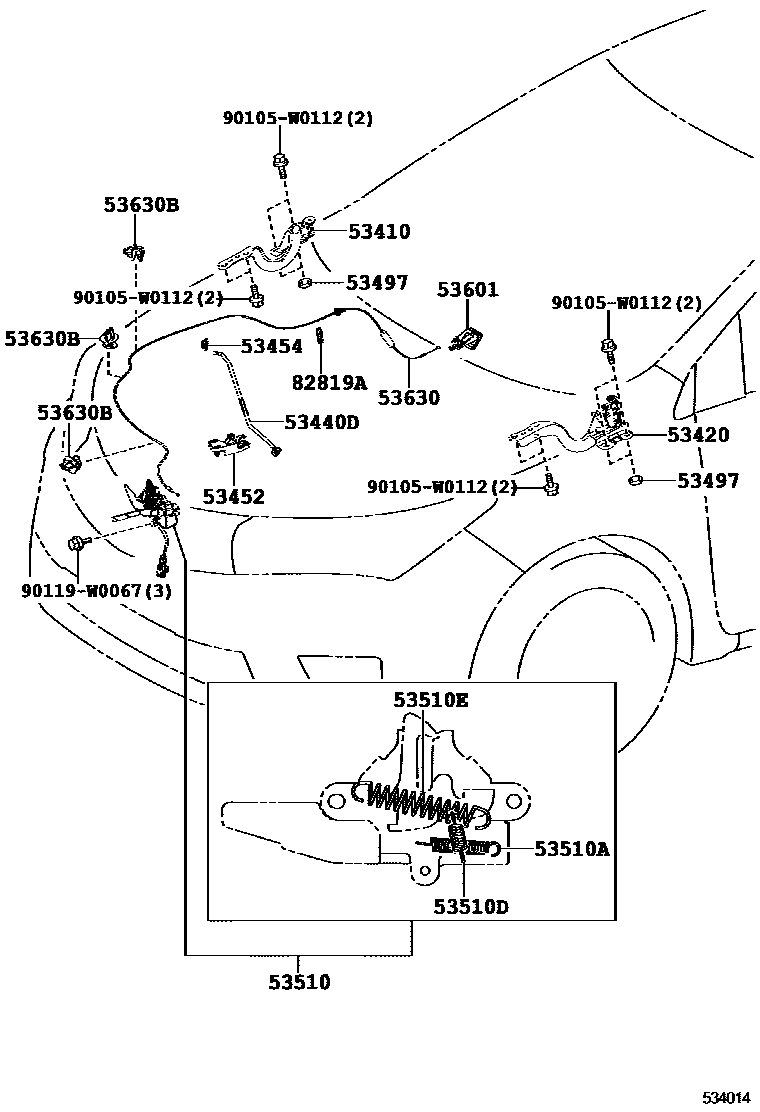

Parts diagram

53410HINGE ASSY, HOOD, RH

main53410-02330i201306-201605

53420HINGE ASSY, HOOD, LH

main53420-02320i201306-201605

53440DSUPPORT ASSY, HOOD

main53440-02210i201306-201605

main53440-02200i201306-201505

ANTI-CORROSION MEASURES-2-AREA SPEC; ANTI-CORROSION MEASURES-3-AREA SPEC

53452HOLDER, HOOD STAY

main53452-02160i201306-201605

53454CLIP, HOOD SUPPORT ROD

main53454-12030i201306-201605

53497PAD, HOOD HINGE, NO.1

main53497-05010×4i201306-201605

T=1.0

53510LOCK ASSY, HOOD

main53510-02560i201606-201901

main53510-02570i201606-201901

main53510-02580i201306-201605

START & STOP SYSTEM PACKAGE

main53510-02610i201406-201605

START & STOP SYSTEM PACKAGE

53510ASPRING, TENSION(FOR HOOD LOCK)

main90080-50398i201606-201808

WD=0.9,CW=20.75

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-W0004i201306-201605

WD=1.0,CW=15.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-W0007i201306-201605

WD=1.8,CW=13

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-05030-C0i201306-201505

BLACK,TRIM0#,2#

main53601-05030-C1i201505-201605

EU BLACK,TRIM0#,2#

main53601-05030-C2i201806-201901

BLACK,TRIM0#,2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-02410i201606-201901

main53630-02420i201606-201901

main53630-12700i201306-201405

main53630-12710i201306-201405

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005×3i201306-201605

82819AGROMMET, WIRE

main82817-1A810i201306-201605

90105W0112

main90105-W0112

90119W0067

main90119-W0067

16 parts on this diagram · 1 diagram in section
